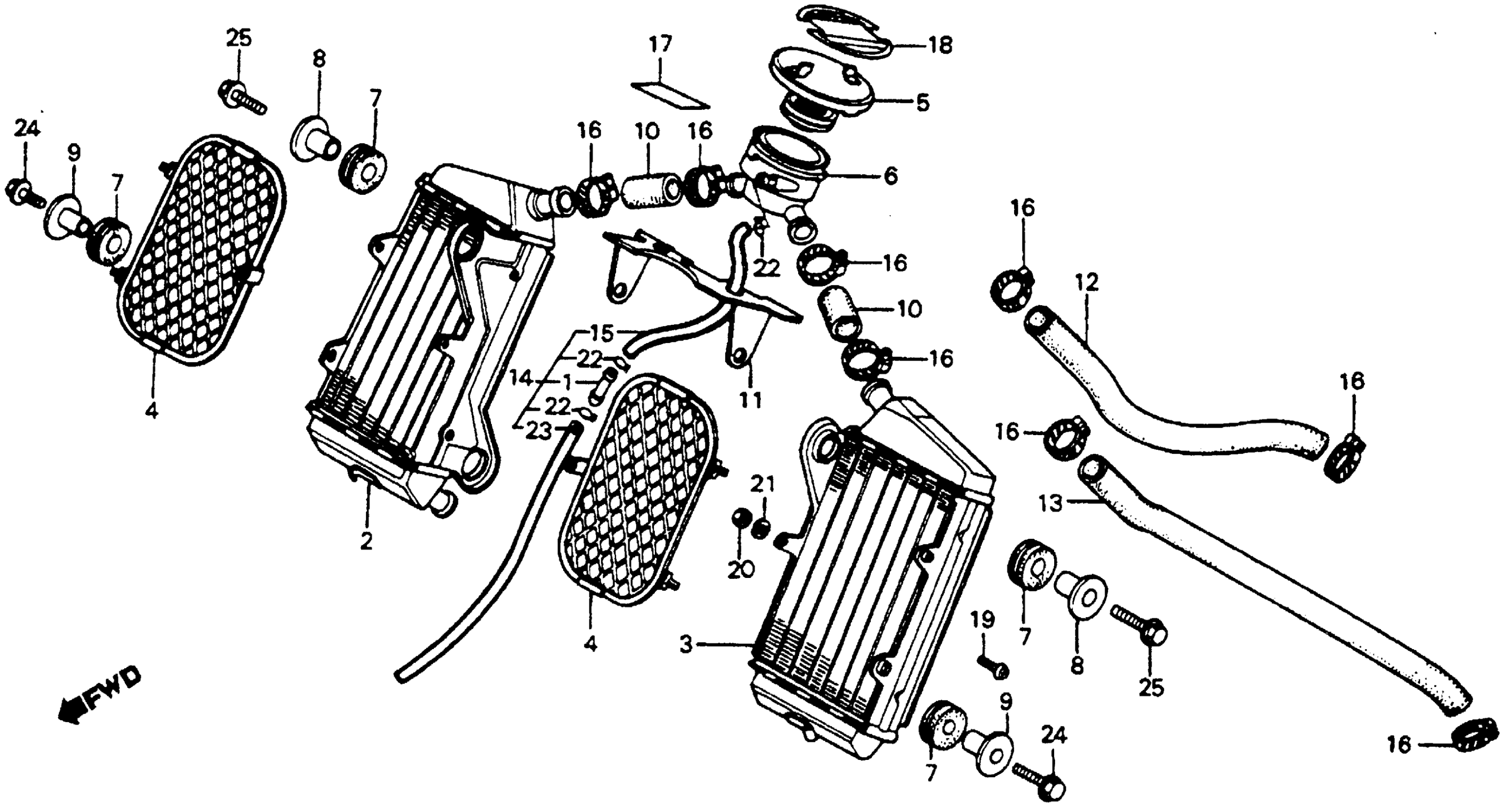

Honda CR125RA (81) ELSINORE, JPN, VIN# JH2JE010-BC200032 TO JH2JE010-BC206950 RADIATOR 81 Diagram

#

Description
Price

1

JOINT, BREATHER TUBE

17359-419-670

$1.95

2

RADIATOR, R. (TOYO) (NOT AVAILABLE)

19010-KA3-305

Unavailable

3

RADIATOR, L. (TOYO)

19015-KA3-305

Unavailable

4

GRILLE, RADIATOR (NOT AVAILABLE)

19033-KA3-000

Unavailable

5

CAP (TOYO)

19037-KA4-003

Unavailable

6

NECK, FILLER (TOYO) (NOT AVAILABLE)

19039-KA4-003

Unavailable

7

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

8

COLLAR, RADIATOR SETTING (NOT AVAILABLE)

19052-KA3-000

Unavailable

9

COLLAR, RADIATOR MOUNTING This part replaces 19052-KA4-000.

19052-MB0-000

$6.34

9

COLLAR, RADIATOR MOUNTING

19052-MB0-000

$6.34

10

HOSE, JOINT (NOT AVAILABLE)

19055-KA4-000

Unavailable

11

COVER, RADIATOR (UPPER) (NOT AVAILABLE)

19057-KA3-000

Unavailable

12

HOSE A, WATER (NOT AVAILABLE)

19061-KA3-000

Unavailable

13

HOSE, WATER (B) (NOT AVAILABLE)

19062-KA3-000

Unavailable

14

TUBE ASSY., RADIATOR (NOT AVAILABLE)

19065-KA3-000

Unavailable

15

TUBE, OVERFLOW

19066-KA3-000

Unavailable

16

CLAMP, WATER HOSE

19506-KA4-000

$9.18

17

LABEL, RADIATOR CAUTION (NOT AVAILABLE)

87508-KA4-670

Unavailable

18

LABEL, RADIATOR CAP (NOT AVAILABLE)

87509-KA4-670

Unavailable

19

SCREW, PAN (4X8)

93500-04008-0G

$1.49

20

NUT, HEX. (4MM)

94001-04070-0S

$1.49

21

WASHER, PLAIN (4MM)

94101-04700

$1.49

22

CLIP, TUBE (B12)

95002-02120

$2.00

23

TUBE, VINYL (8X12X3000) (8X12X600)

95003-23003-10M

$14.69

24

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.72

24

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

25

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

25

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
