Description

Price

120

BOLT-SOCKET,6X14

120P0614

$3.82

120A

BOLT-SOCKET,8X25

120S0825

$4.37

120B

BOLT-SOCKET,8X90

120S0890

$8.86

14024

COVER,SEAT,P.M.BLACK

14024-1224-373

Unavailable

14024A

COVER,SEAT COVER,LH,P.M.BLACK

14024-1225-373

$122.92

14024B

COVER,SEAT COVER,RH,P.M.BLACK

14024-1226-373

$122.92

14024C

COVER,CARRIER,P.M.BLACK

14024-1227-373

$138.76

39042

CROSSMEMBER,SEAT GRIP

39042-1052

$46.14

46075

GRIP,SEAT,RR,LH

46075-1070

$132.80

46075A

GRIP,SEAT,RR,RH

46075-1071

$132.80

53001

SEAT-ASSY,DUAL,BLACK

53001-1742-MA

$551.79

53003

LEATHER,SEAT,BLACK

53003-1289-MA

$200.34

53029

CARRIER,TAIL

53029-1069

$72.80

53045

HOOK-ASSY,BUNGEE CORD

53045-1052

$38.20

92001

BOLT,8X18

92001-1359

$4.78

92002

BOLT,6X25

92002-1135

$4.31

92002A

BOLT,SOCKET,8X23.5

92002-1598

$6.27

92002B

BOLT,5MM

92002-1724

$9.05

92015

NUT,5MM

92015-1710

$6.22

92066

PLUG

92066-1216

$4.65

92075

DAMPER RUBBER

92075-051

$3.92

92075A

DAMPER

92075-1470

$7.40

92075B

DAMPER,BUNGEE CORD HOOK

92075-1823

$7.24

92075C

DAMPER

92075-1876

$10.37

92075D

DAMPER,9X24X14

92075-281

$6.22

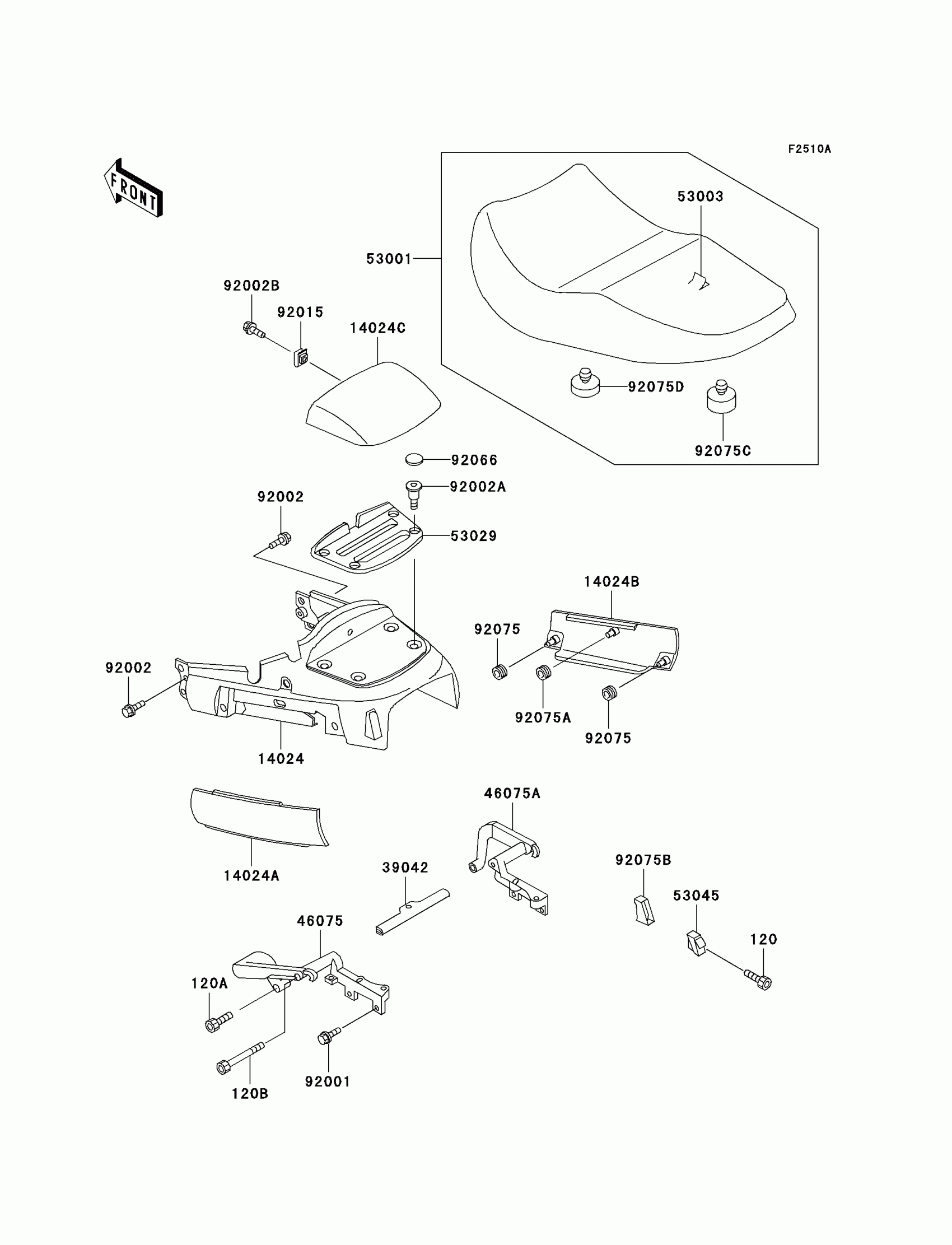

Kawasaki Concours Seat(ZG1000-A19) Diagram

BOLT-SOCKET,6X14

BOLT-SOCKET,8X25

BOLT-SOCKET,8X90

COVER,SEAT,P.M.BLACK

COVER,SEAT COVER,LH,P.M.BLACK

COVER,SEAT COVER,RH,P.M.BLACK

COVER,CARRIER,P.M.BLACK

CROSSMEMBER,SEAT GRIP

GRIP,SEAT,RR,LH

GRIP,SEAT,RR,RH

SEAT-ASSY,DUAL,BLACK

LEATHER,SEAT,BLACK

CARRIER,TAIL

HOOK-ASSY,BUNGEE CORD

BOLT,8X18

BOLT,6X25

BOLT,SOCKET,8X23.5

BOLT,5MM

NUT,5MM

PLUG

DAMPER RUBBER

DAMPER

DAMPER,BUNGEE CORD HOOK

DAMPER

DAMPER,9X24X14
