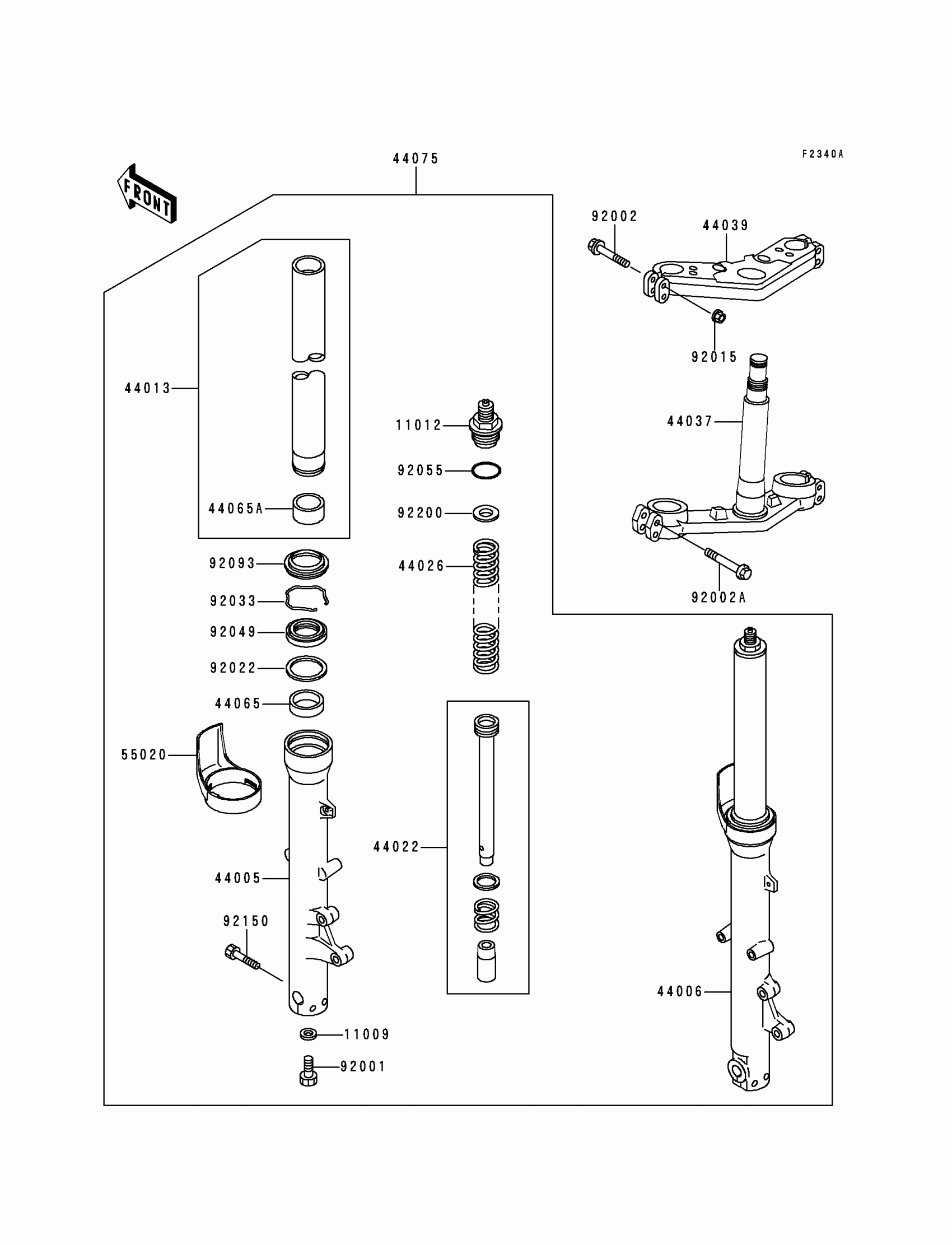

Kawasaki Concours Front Fork(ZG1000-A14) Diagram
#
Description
Price
11009
GASKET,FORK CYLINDER BOLT
11009-1127
$5.18
11012
CAP
11012-1885
$64.95
44005
PIPE-LEFT FORK OUTER,BLACK
44005-1395-10
$521.71
44006
PIPE-RIGHT FORK OUTER,BLACK
44006-1394-10
$521.71
44013
PIPE-FORK INNER
44013-1458
$368.44
44022
CYLINDER-FORK
44022-1297
$141.36
44026
SPRING-FRONT FORK
44026-1560
$95.39
44037
HOLDER-FORK UNDER
44037-1387
$628.54
44039
HOLDER-FORK UPPER
44039-1248
$316.18
44065
BUSHING-FRONT FORK,INNER PIPE
44065-1114
$21.57
44065A
BUSHING-FRONT FORK,OUTER TUBE
44065-1115
$28.71
44075
DAMPER-SET-FORK,BLACK
44075-1086-10
Unavailable
55020
GUARD,FORK
55020-1645
$11.64
92001
BOLT,FORK CYLINDER
92001-1309
$7.62
92002
BOLT,FLANGED,8X55
92002-1158
$9.23
92002A
BOLT,FLANGED,8X40
92002-1476
$11.51
92015
NUT,FLANGED,8MM
92015-1408
$5.38
92022
WASHER,FORK OUTER TUBE
92022-1298
$8.58
92033
RING-SNAP
92033-1036
$6.51
92049
SEAL-OIL,FORK OUTER TUBE
92049-1494
$21.38
92055
RING-O,FORK TOP CAP
92055-1050
$6.27
92093
SEAL,FORK OUTER TUBE
92093-1472
$23.76
92150
BOLT,SOCKET,10X40
92150-1468
$9.58
92200
WASHER,FORK
92200-1210
$11.49
