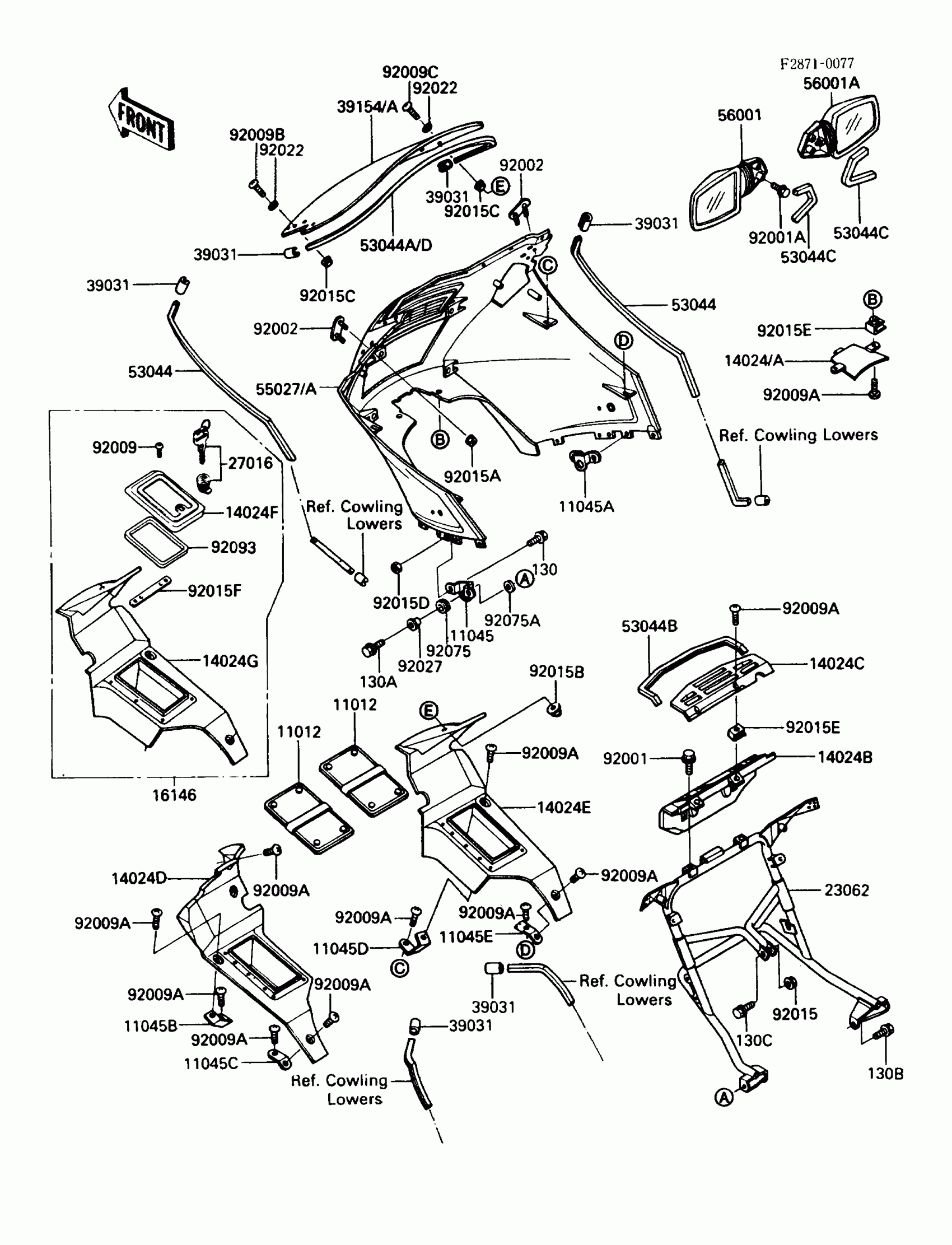

Kawasaki Concours Cowling(A1) Diagram
#
11012
CAP,INNER COWLING
11012-1546
Unavailable
11045
BRACKET,UPPER COWLING,LWR,LH
11044-1907
$10.62
11045A
BRACKET,UPPER COWLING,LWR,RH
11044-1908
$10.62
11045B
BRACKET,INNER COWLING,FR,LH
11044-1909
Unavailable
11045C
BRACKET,INNER COWLING,RR
11044-1910
Unavailable
11045D
BRACKET,INNER COWLING,FR,RH
11044-1922
Unavailable
11045E
BRACKET,INNER COWLING,RR
11045-1612
Unavailable
14024
COVER,UPPER COWLING,LWR,RED
14024-1252-H3
Unavailable
14024A
COVER,UPPER COWLING,LWR,GRAY
14024-1252-T8
Unavailable
14024B
COVER,HORN,RR
14024-1255
Unavailable
14024C
COVER,INNER COWLING,CNT
14024-1256
Unavailable
14024D
COVER,INNER COWLING,UPP,LH
14024-1422
Unavailable
14024E
COVER,INNER COWLING,UPP,RH
14024-1423
Unavailable
14024F
COVER,INNER COWLING COVER,RH
14024-1472
Unavailable
14024G
COVER,INNER COWLING,UPP,RH
14024-1473
Unavailable
16146
COVER-ASSY,INNER COWLING,UPP
16146-1083
$644.46
23062
BRACKET-COMP,UPPER COWLING
23062-1063
Unavailable
27016
LOCK-ASSY,FAIRING POCKET
27016-1073
$81.78
39031
CAP-END,TRIM
39031-1055
$6.89
39154
WINDSHIELD,SHORT TYPE
39154-1062
$546.71
39154A
WINDSHIELD,LONG TYPE
39154-1069
$338.55
53044
TRIM,COWLING
53044-1157
$29.70
53044A
TRIM,WINDSHIELD,SHORT TYPE
53044-1164
$27.33
53044B
TRIM,INNER COWLING
53044-1172
$14.18
53044C
TRIM,MIRROR
53044-1173
$9.05
53044D
TRIM,WINDSHIELD,LONG TYPE
53044-1192
Unavailable
55027
COWLING-ASSY,UPP,OUTER,RED
55027-1092-H3
$811.84
55027A
COWLING-ASSY,UPP,OUTER,GRAY
55027-1092-T8
$1,220.38
56001
MIRROR-ASSY,LH
56001-1333
$163.61
56001A
MIRROR-ASSY,RH
56001-1334
$163.61
92001
BOLT
92001-1825
$4.11
92001A
BOLT,6X14,BLACK
92001-1847
$3.96
92002
BOLT,"U"
92002-1800
$10.62
92009
SCREW,4X16
92009-1108
Unavailable
92009A
SCREW,6X14,BLACK
92009-1308
$3.92
92009B
SCREW,5X14,BLACK
92009-1383
$3.96
92009C
SCREW,5X20,BLACK
92009-1453
$3.96
92015
NUT,FLANGED,8MM,BLACK
92015-1183
$5.38
92015A
NUT,FLANGED,6MM,BLACK
92015-1237
$5.52
92015B
NUT,LOCK,FLANGE CAP,5MM
92015-1263
$6.57
92015C
NUT,5MM,COWLING
92015-1343
$4.39
92015D
NUT,STAY,6MM
92015-1394
$4.78
92015E
NUT,6MM
92015-1602
$7.34
92015F
NUT,PLATE,4MM
92015-1661
$7.62
92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92027
COLLAR,L=13.1,BLACK
92027-1450
$6.22
92075
RUBBER,FENDER COVER
92075-174
$4.78
92075A
DAMPER,FEMALE
92075-175
$4.39
92093
SEAL,FAIRING POCKET
92093-1239
$7.55
130
BOLT-FLANGED,6X10
130C0610
$3.84
130A
BOLT-FLANGED
130C0625
$2.62
130B
BOLT-FLANGED,8X12
130J0812
$0.67
130C
BOLT-FLANGED,8X30
130J0830
$4.15
