Cowling(Center)(EFF-EJF)

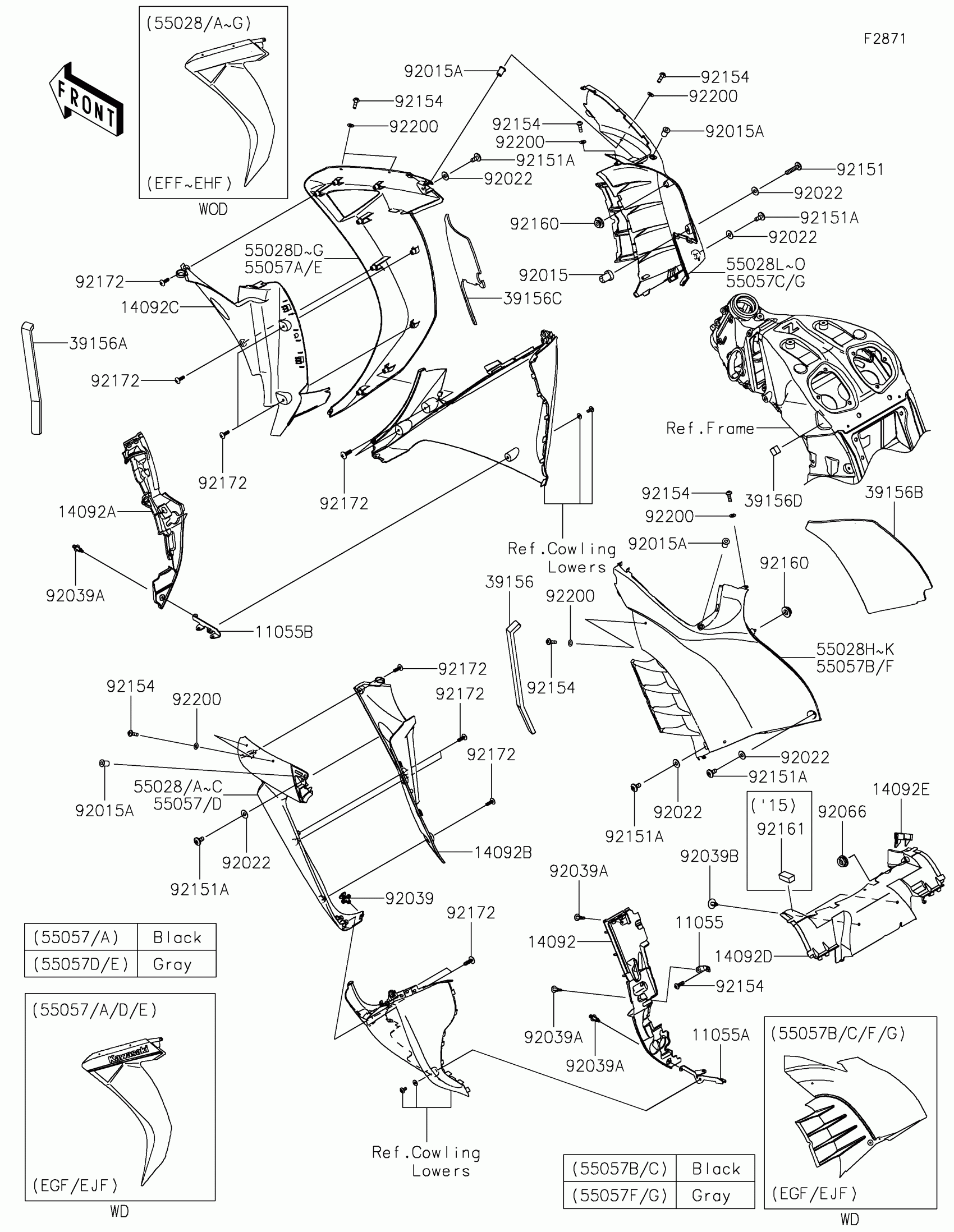

Kawasaki CONCOURS®14 ABS Cowling(Center)(EFF-EJF) Diagram
#
Description
Price
11055
BRACKET,RESERVOIR
11055-1837
$3.92
11055A
BRACKET,LWR COWLING,LH
11055-1838
$12.32
11055B
BRACKET,LWR COWLING,RH
11055-1839
$6.61
14092
COVER,HEAT GUARD,LH
14092-0098
$56.67
14092A
COVER,HEAT GUARD,RH
14092-0099
$56.67
14092B
COVER,SHROUD,LH
14092-0102
$75.79
14092C
COVER,SHROUD,RH
14092-0103
$75.79
14092D
COVER,HEAT GUARD,FR
14092-0135
$87.67
14092E
COVER,RADIATOR CAP
14092-0136
$12.05
39156
PAD,SHROUD,LH
39156-0591
$3.48
39156A
PAD,SHROUD,RH
39156-0593
$3.48
39156B
PAD,CNT COWLING,LH
39156-0595
$23.23
39156C
PAD,CNT COWLING,RH
39156-0596
$23.23
39156D
PAD,20X20X14
39156-1852
$3.48
55057D
COWLING,SIDE,LH,M.C.GRAY
55057-5474-51A
$520.87
55057E
COWLING,SIDE,RH,M.C.GRAY
55057-5475-51A
$520.87
55057F
COWLING,CNT,LH,M.C.GRAY
55057-5476-51A
$533.41
55057G
COWLING,CNT,RH,M.C.GRAY
55057-5477-51A
$559.93
92015
NUT,RUBBER,6MM
92015-1692
$7.34
92015A
NUT,WELL,5MM
92015-1757
$7.29
92022
WASHER,6.5X16X1
92022-1143
$3.92
92039
RIVET,HOLE 8MM
92039-0014
$3.29
92039A
RIVET
92039-0051
$4.65
92039B
RIVET
92039-1289
$2.80
92066
PLUG
92066-1306
$5.46
92151
BOLT,SOCKET,6X30
92151-1605
$2.34
92151A
BOLT,SOCKET,6X14
92151-1654
$1.83
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92160
DAMPER
92160-1613
$3.74
92172
SCREW,TAPPING,5X16
92172-0238
$1.00
92200
WASHER,NYLONE,5.3X11.5X0.5
92200-0006
$1.86
