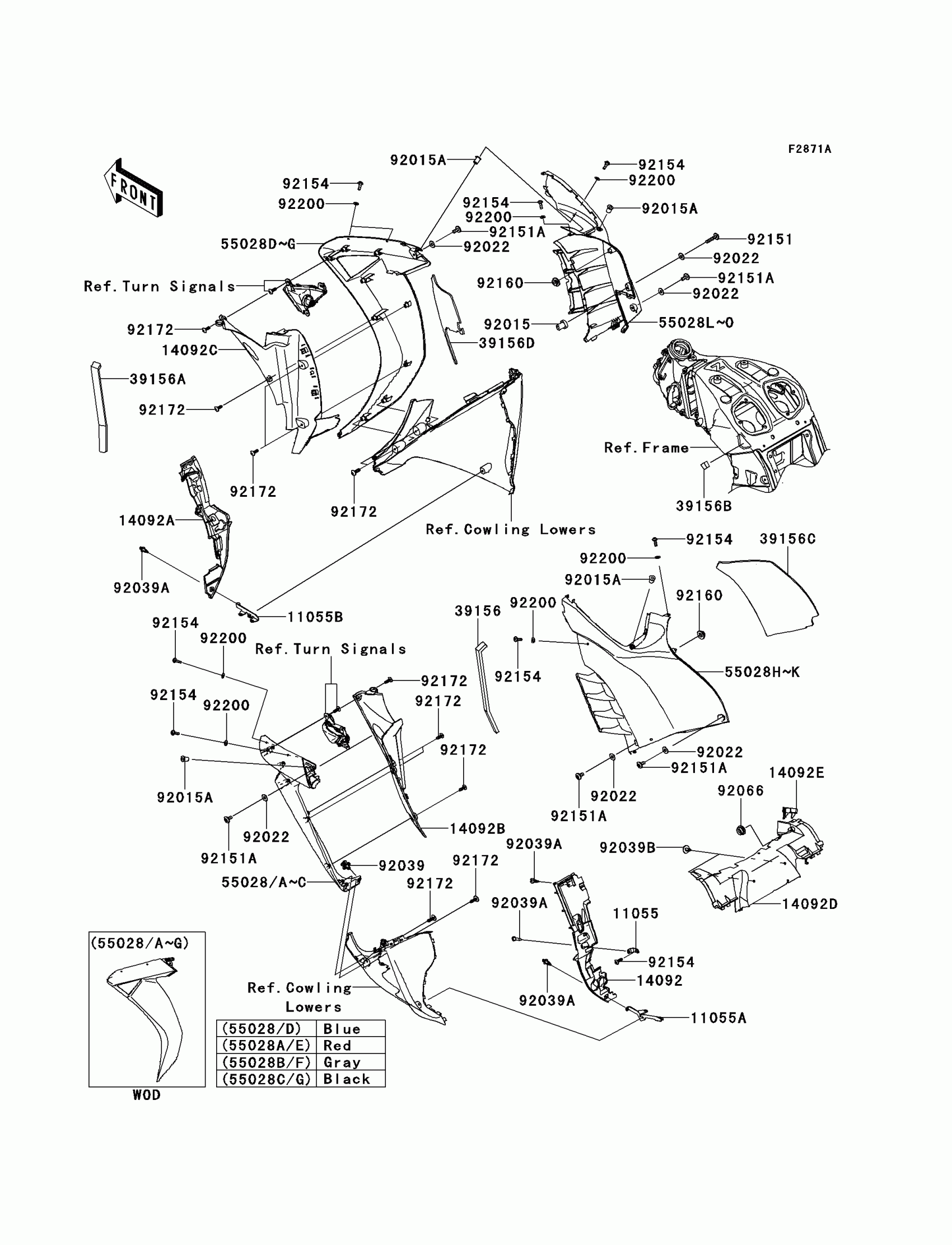

Kawasaki CONCOURS® 14 ABS Cowling(Center)(CDF/CEF) Diagram

#

Description
Price

11055

BRACKET,RESERVOIR

11055-1837

$3.92

11055A

BRACKET,LWR COWLING,LH

11055-1838

$12.32

11055B

BRACKET,LWR COWLING,RH

11055-1839

$6.61

14092

COVER,HEAT GUARD,LH

14092-0098

$56.67

14092A

COVER,HEAT GUARD,RH

14092-0099

$56.67

14092B

COVER,SHROUD,LH

14092-0102

$75.79

14092C

COVER,SHROUD,RH

14092-0103

$75.79

14092D

COVER,HEAT GUARD,FR

14092-0135

$87.67

14092E

COVER,RADIATOR CAP

14092-0136

$12.05

39156

PAD,SHROUD,LH

39156-0591

$3.48

39156A

PAD,SHROUD,RH

39156-0593

$3.48

39156B

PAD,20X20X14

39156-0594

$3.66

39156C

PAD,CNT COWLING,LH

39156-0595

$23.23

39156D

PAD,CNT COWLING,RH

39156-0596

$23.23

55028A

COWLING,SIDE,LH,C.C.RED

55028-0320-L1

$294.23

55028C

COWLING,SIDE,LH,M.S.BLACK

55028-0320-660

$294.23

55028E

COWLING,SIDE,RH,C.C.RED

55028-0321-L1

$294.23

55028G

COWLING,SIDE,RH,M.S.BLACK

55028-0321-660

$294.23

55028I

COWLING,CNT,LH,C.C.RED

55028-0388-L1

$433.26

55028K

COWLING,CNT,LH,M.S.BLACK

55028-0388-660

$433.26

55028M

COWLING,CNT,RH,C.C.RED

55028-0389-L1

$433.26

55028O

COWLING,CNT,RH,M.S.BLACK

55028-0389-660

$433.26

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92015A

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X16X1

92022-1143

$3.92

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92039A

RIVET

92039-0051

$4.65

92039B

RIVET

92039-1289

$2.80

92066

PLUG

92066-1306

$5.46

92151

BOLT,SOCKET,6X30

92151-1605

$2.34

92151A

BOLT,SOCKET,6X14

92151-1654

$1.83

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92160

DAMPER

92160-1613

$3.74

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86
