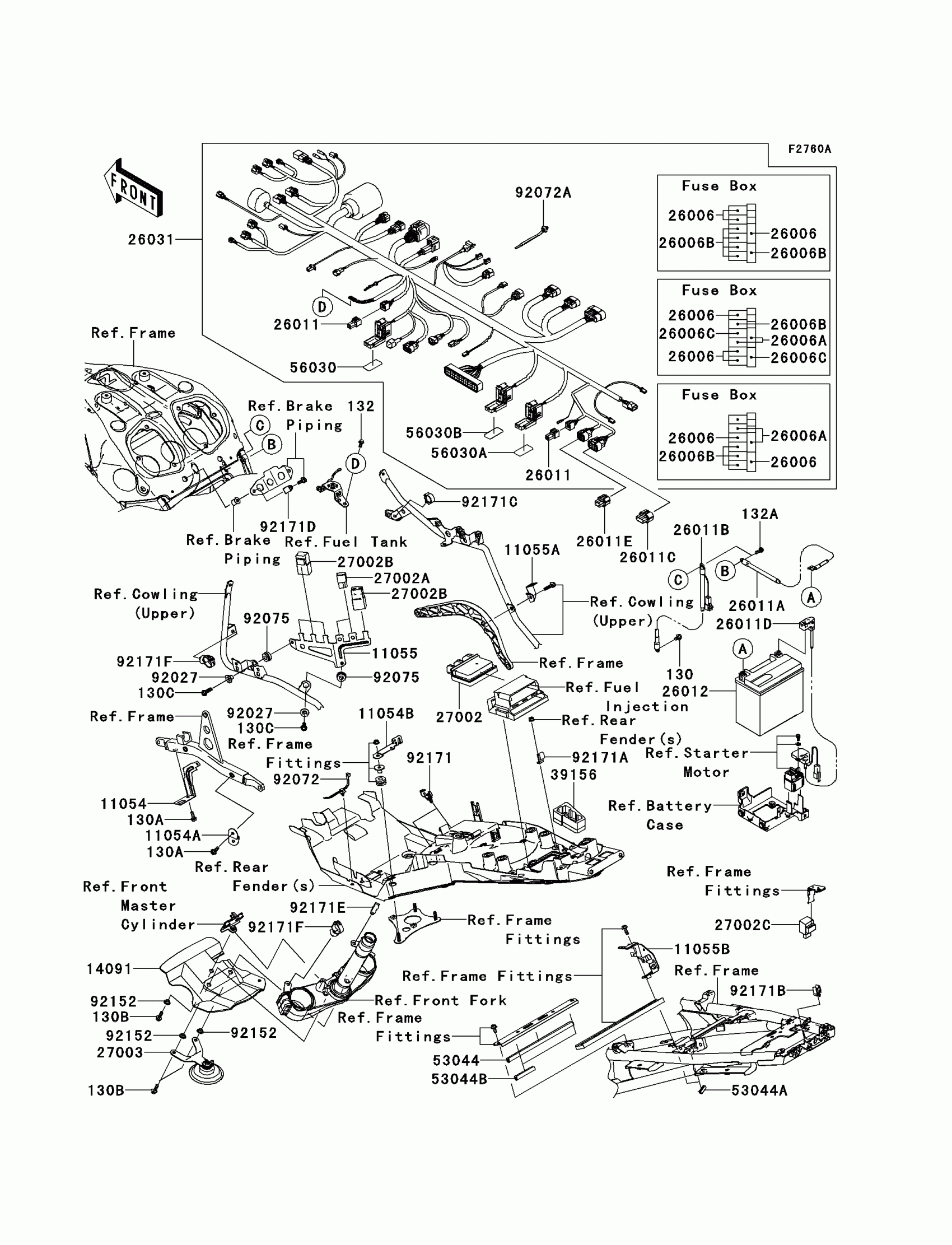

Kawasaki Concours 14 ABS Chassis Electrical Equipment(A9F) Diagram

#

Description
Price

11054

BRACKET,SUB FRAME,FR

11054-1131

$9.09

11054A

BRACKET,SUB FRAME,RR

11054-1133

$6.32

11054B

BRACKET,DIAG. COUPLER

11054-1870

$9.71

11055

BRACKET,RELAY

11055-0064

$35.58

11055A

BRACKET,FAN COUPLER

11055-0079

$9.71

11055B

BRACKET,COUPLER

11055-0276

$34.28

14091

COVER,RADIATOR

14091-0912

$40.73

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$4.87

26011

WIRE-LEAD

26011-0082

$25.00

26011A

WIRE-LEAD,BATTERY(-)

26011-0087

$29.43

26011B

WIRE-LEAD,BATTERY(-)

26011-0093

$32.24

26011C

WIRE-LEAD

26011-0105

$14.26

26011D

WIRE-LEAD,BATTERY(+)

26011-0120

$56.84

26011E

WIRE-LEAD

26011-0146

$33.76

26012

BATTERY,FTZ14-BS,12V 14AH

26012-1409

Unavailable

26031

HARNESS,MAIN

26031-0743

$1,297.57

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY

27002-0012

$42.21

27002B

RELAY-ASSY

27002-1086

$36.91

27002C

RELAY-ASSY,TURN SIGNAL

27002-1090

$79.17

27003

HORN

27003-0036

$85.73

39156

PAD

39156-0331

$16.95

53044

TRIM,L=220

53044-0022

$13.60

53044A

TRIM,L=22

53044-0031

$3.39

53044B

TRIM,L=60

53044-1249

$6.57

56030

LABEL,FUSE BOX1

56030-0110

$3.87

56030A

LABEL,FUSE BOX

56030-0247

$4.58

56030B

LABEL,FUSE BOX

56030-0260

$4.58

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92072

BAND

92072-0066

$3.39

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92075

DAMPER

92075-277

$2.84

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.80

92171A

CLAMP,HARNESS

92171-0255

$7.57

92171B

CLAMP

92171-0290

$3.73

92171C

CLAMP

92171-0782

$3.90

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X18

130BA0618

$1.54

130C

BOLT-FLANGED,6X22

130BA0622

$1.29

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

92171D

CLAMP

92171-0813

$8.68

92171E

CLAMP

92171-0864

$4.65

92171F

CLAMP

92171-1706

$10.30
