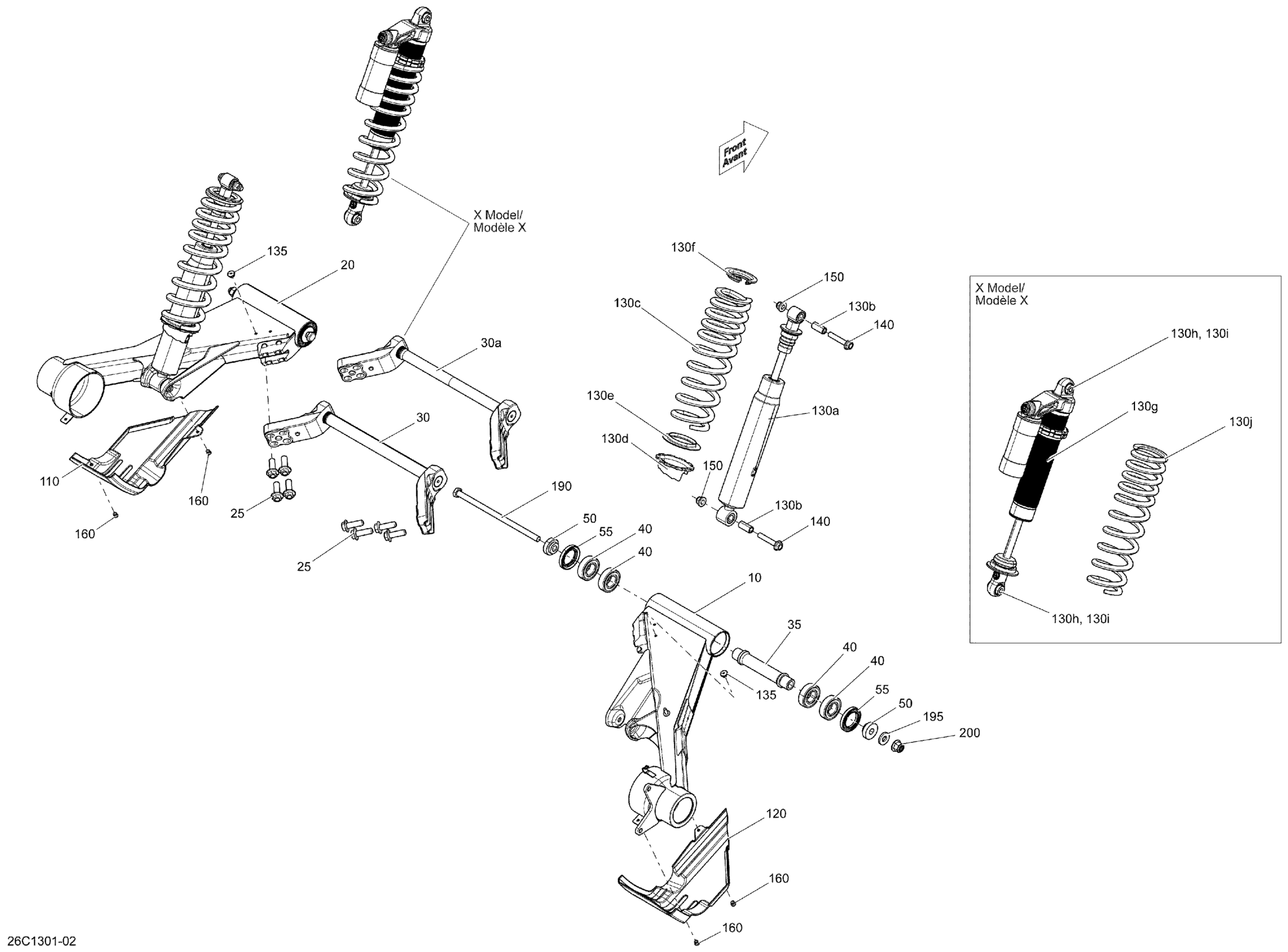

Can-Am Commander STD, DPS, XT, 800R EFI, 2013 08- Rear Suspension Diagram

#

Description
Price

10

RH Swing Arm

703500965

$190.99

20

LH Swing Arm

703500964

$190.99

25

Hex. Flange Screw M12 X 35, Scotch Grip

207523544

$3.91

30

Sway Bar Ass'y | STD, XT

706001500

$185.49

30a

Not Available As Spare Parts

XXX

Unavailable

35

Bushing

706001529

$34.99

40

Ball Bearing

293350115

$12.11

50

Spacer

706001350

$10.49

55

Seal

293200094

$10.33

110

LH Joint Protector

706000630

$8.85

120

RH Joint Protector

706000814

$8.85

130a

Rear Shock | STD, XT

706000615

$195.99

130b

Bushing

715900122

$11.06

130c

RED REAR SPRING - Call your local BRP dealership | XT Red Model

706002466

Unavailable

130c

Yellow Rear Spring | STD, XT Yellow Model

706000667

$104.99

130c

Black Rear Spring | XT Camo Model

706001045

$100.49

130d

Adjustment Ring

706000910

$16.49

130e

Protector Ring | STD, XT

706000911

$13.99

130f

Spring Stopper

706000567

$15.99

130g

Not Available As Spare Parts

XXX

Unavailable

130h

Not Available As Spare Parts

XXX

Unavailable

130i

Not Available As Spare Parts

XXX

Unavailable

130j

Not Available As Spare Parts

XXX

Unavailable

135

Pop Rivet 3/16"

390406500

$0.88

140

Hex. Flange Screw M10 X 55

207605544

$3.38

150

Hex. Flange Elastic Nut M10

233201436

$2.11

160

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

190

Hex. Cap Screw M12 X 241

250001031

$3.81

195

Flat Washer M12

250200120

$2.61

200

Elastic Flange Nut M12

233221416

$2.85
