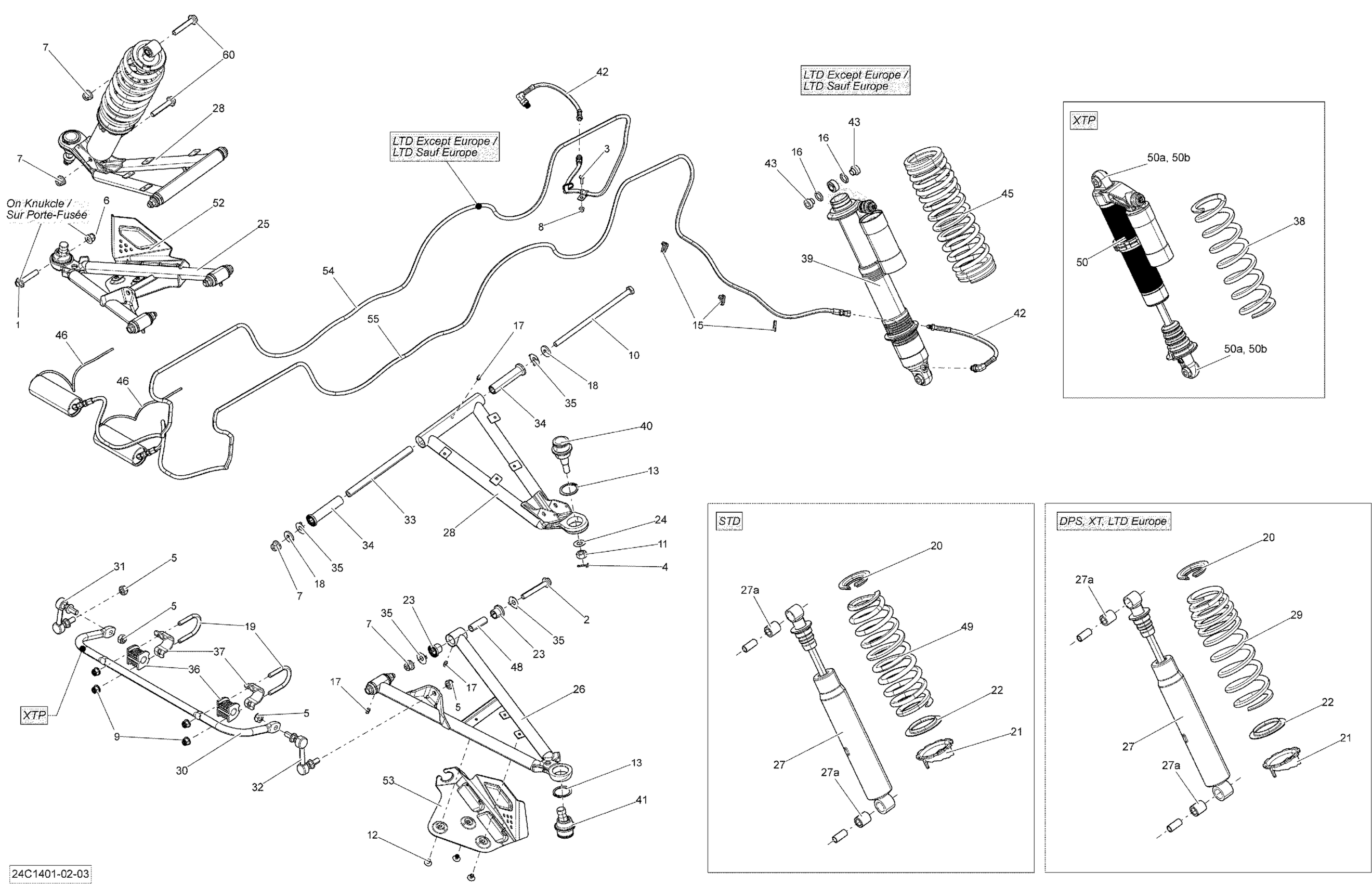

Can-Am Commander 1000 STD, DPS, XT, XT-P, 2014 07- Front Suspension Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 50

207605044

$5.29

2

Hex. Flange Screw M10 X 70

207607046

$2.96

3

Not Available As Spare Parts

XXX

Unavailable

4

Cotter Pin

211400017

$0.33

5

Elastic Flange Nut M10

232501416

$1.48

6

Hex. Flange Elastic Nut M10

233201414

$1.58

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

Not Available As Spare Parts

XXX

Unavailable

9

Hex. Flange Elastic Nut M8

233281414

$1.47

10

Hex. Cap Screw M10 X 225

250001032

$12.64

11

Nut M12

250100099

$2.09

12

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

13

Circlip

293370035

$2.64

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Grease Fitting

408200700

$3.49

18

Washer

503190439

$5.93

19

U-clamp | X

506060600

$17.80

20

Spring Stopper

706000567

$15.99

21

Adjustment Ring

706000910

$16.49

22

Protector Ring | STD, XT

706000911

$13.99

23

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

24

Hardened Washer

706200281

$2.85

25

LH Lower Suspension Arm

706200742

$190.99

26

RH Lower Suspension Arm

706200744

$190.99

27

Front Shock | XT Yellow Model

706200782

$195.99

27

Front Shock | STD

706200780

$206.49

27a

Bushing

715900122

$11.06

28

Suspension Upper Arm

706200796

$190.99

29

YELLOW FRONT SPRING - Call your local BRP dealership | XT Yellow Model

706200860

Unavailable

29

RED FRONT SPRING - Call your local BRP dealership | XT Red Model

706201367

Unavailable

29

BLACK FRONT SPRING - Call your local BRP dealership | XT Camo Model

706201369

Unavailable

30

Sway Bar Ass'y | X

706202560

$99.49

31

LH Sway Bar Link | X

706202536

$67.99

32

RH Sway Bar Link | X

706202537

$67.99

33

Bushing

706202445

$14.30

34

Cushion

706201062

$2.30

35

Wear Plate

706201063

$0.95

36

Stabilizer Bushing | X

706201086

$8.08

37

Clamp | X

706201087

$12.16

38

YELLOW FRONT SPRING - Call your local BRP dealership | X

706201124

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Ball Joint

706202044

$35.99

41

Ball Joint

706202045

$35.99

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

48

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

49

RED FRONT SPRING - Call your local BRP dealership | STD Model

706201631

Unavailable

50

FRONT SHOCK ASS'Y - Call your local BRP dealership | Includes 130a to 130c

706201658

Unavailable

50a

O-Ring Bushing

715900209

$14.75

50b

Interior Bushing | XTP

715900210

$15.82

52

LH Protector

706201669

$17.54

53

RH Protector

706201670

$17.54

54

Not Available As Spare Parts

XXX

Unavailable

55

Not Available As Spare Parts

XXX

Unavailable

60

Hex. Flange Screw M10 X 55

207605544

$3.38
