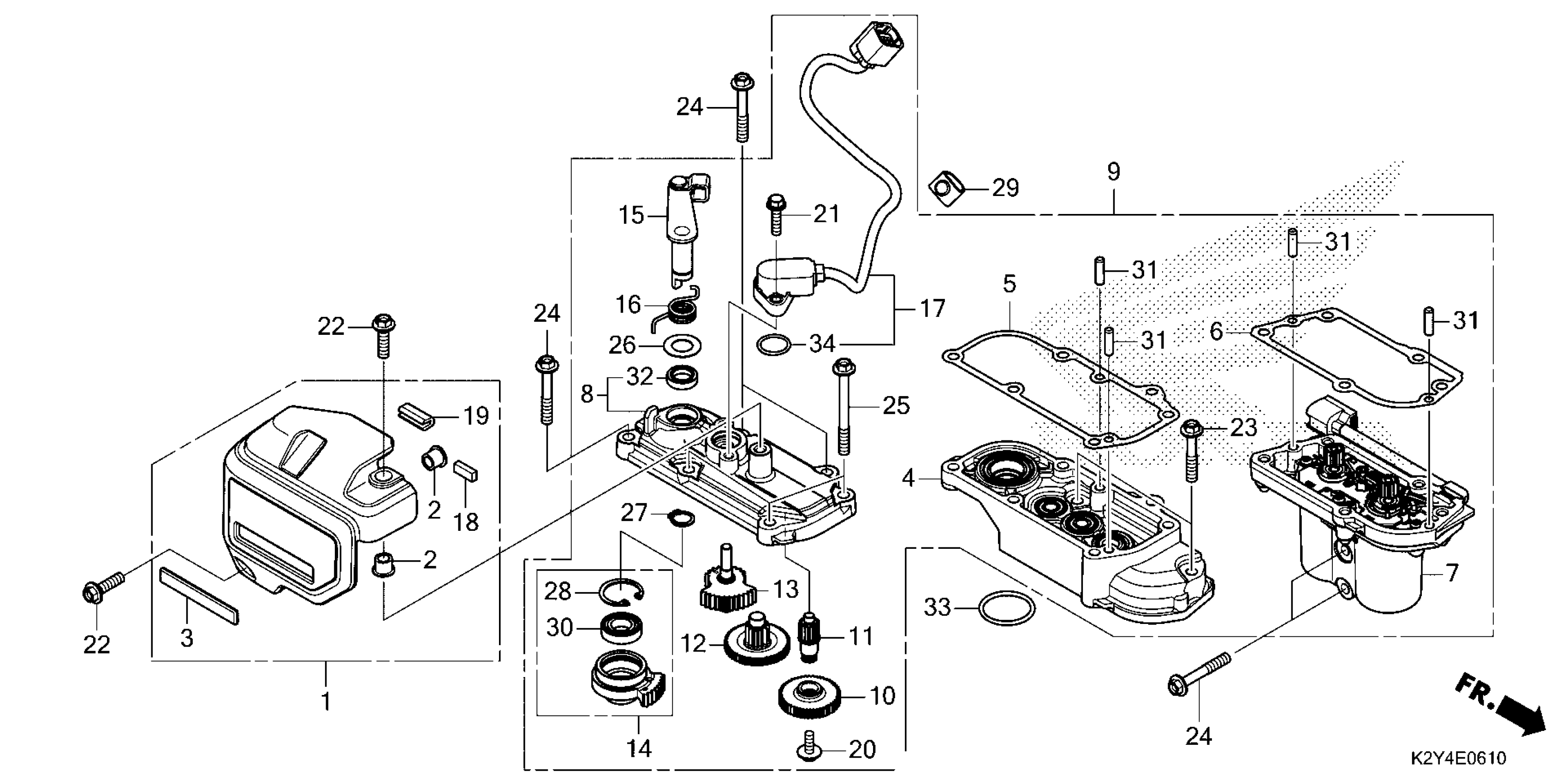

Honda CMX300A3AC (25) MOTORCYCLE, THA, VIN# MLHNC535-S5800001 TO MLHNC535-S5999999 CLUTCH ACTUATOR Diagram

#

Description
Price

1

COVER, CLUTCH ARM

11370-K2Y-J70

Unavailable

2

COLLAR

11372-K2Y-J70

Unavailable

3

PLATE, EMBLEM

11378-MKY-E80

$23.13

4

CASE

11410-MKY-E80

$63.57

5

GASKET

11412-K2Y-J71

Unavailable

6

GASKET

11413-K2Y-J71

Unavailable

7

CASE ASSY.

11420-K2Y-J71

Unavailable

8

CVR, CLUTCH ACTUATOR

11430-MKY-E80

$85.62

9

ACTUATOR, CLUTCH

22200-K2Y-J70

Unavailable

10

GEAR A (51T)

22661-MKY-E81

$31.08

11

SHAFT A (17T)

22662-MKY-E80

$41.07

12

GEAR B (62T/11T)

22671-MKY-E81

$42.51

13

GEAR C (12T/9T)

22680-MKY-E81

$56.56

14

GEAR ASSY. D (8T)

22690-MKY-E80

$57.74

15

LEVER, CLUTCH

22810-K2Y-J70

Unavailable

16

SPRING, CLUTCH LEVER

22816-K2Y-J70

Unavailable

17

SENSOR (110DEG)

38800-K2Y-J71

Unavailable

18

RUBBER, HANDLE COVER

53209-K0G-900

$1.49

19

PROTECTOR, RUBBER

77212-MFJ-D00

$1.74

20

BOLT-WASHER (5X14)

90002-MKY-E80

$1.49

21

BOLT, FLANGE (5X20)

90003-MKY-E80

$1.49

22

BOLT, FLANGE (6X22)

90026-GHB-670

$2.43

23

BOLT, FLANGE (6X35)

90026-GHB-720

$2.05

24

BOLT, FLANGE (6X40)

90026-GHB-740

$2.39

25

BOLT, FLANGE (6X60)

90026-GHB-780

Unavailable

26

WASHER

90525-MBZ-610

$2.39

27

CIRCLIP (12MM)

90601-MKY-E81

$1.49

28

CIRCLIP (24MM)

90602-MKY-E81

$1.79

29

BAND, RUBBER (50)

90652-MKH-D20

$2.93

30

BEARING (6901ZZ)

91002-MKY-E81

$4.31

31

ROLLER (5X17.8)

91101-MKY-E81

$1.49

32

OIL SEAL (12X18X5)

91204-MKY-E81

$1.49

33

O-RING (28X2.6)

91301-MKY-E81

$1.49

34

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72
