REAR TORQUE ARM CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURING E97336 (4938493849B014)

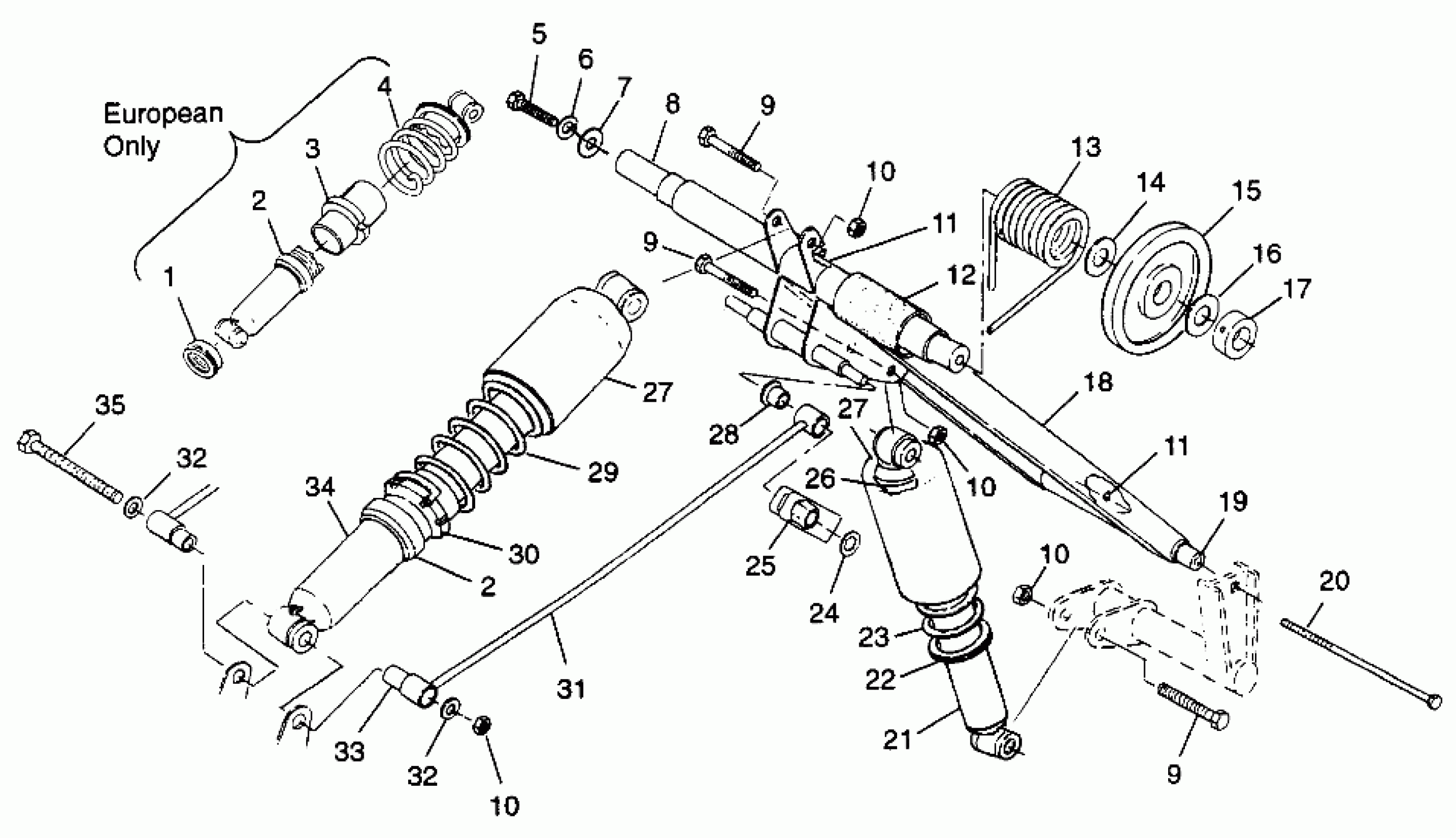

Polaris CLASSIC TOURING - 0973365 REAR TORQUE ARM CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURING E97336 (4938493849B014) Diagram
#
1
GUIDE,ADAPTER NUT (Euro)
5131276
Unavailable
2
RETAINER,SPRING,HVY BODY
1500091
$27.83
2
RETAINER,SPRING,HVY BODY
1500091
$27.83
3
ADAPTER,NUT,SPRING-RET. Substituted by 2871439 (Euro)
5131274
Unavailable
4
SPRING,COMP,190#,BLK (Euro)
7041491-067
Unavailable
5
BOLT(10)
7512589
$1.59
6
WASHER-LOCK, 7/16-B
7552614
$1.59
7
WASHER ,(10)
7555984
$2.39
8
SHAFT,RTA,UPPER
5020814
Unavailable
9
BOLT Substituted by 7515491
7515433
$1.59
9
BOLT Substituted by 7515491
7515433
$1.59
9
BOLT Substituted by 7515491
7515433
$1.59
10
NUT LOCK(10)
7542411
$3.19
10
NUT LOCK(10)
7542411
$3.19
10
NUT LOCK(10)
7542411
$3.19
10
NUT LOCK(10)
7542411
$3.19
11
ZERK,FITTING,THREADED(10)
7080433
$1.49
11
ZERK,FITTING,THREADED(10)
7080433
$1.49
12
SLEEVE,TORSION SPRING
5431923
$6.39
13
SPRING,RH,TORSION,BLK. (.406 Dia., Opt.)
7041395-067
Unavailable
13
SPRING,LH,TORS,.421,BLK. (.421 Dia., Opt.)
7041406-067
$95.19
13
SPRING,RH,TORS,.421,BLK. (.421 Dia., Opt.)
7041407-067
Unavailable
13
SPRING,LH,TORS,.437/77DG,BK (.437 Dia., Std.)
7041487-067
$113.32
13
SPRING,RH,TORS,.437/77DG,BK (.437 Dia., Std.)
7041488-067
Unavailable
13
SPRING,LH,TORSION,BLK. (.406 Dia., Opt.)
7041394-067
Unavailable
14
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
15
Wheel, Carrier
1543023
Unavailable
16
WASHER, THRUST(10) Substituted by 7555871
7555862
$5.56
17
SCREW-SET(10)
7512257
$3.99
17
COLLAR-BRG. LOCK
5010155
Unavailable
18
ARM,RR TORQUE(XTRA 12),BLK
1541029-067
Unavailable
19
Shaft
5020898
Unavailable
20
Screw
7517248
$13.19
21
SHOCK,GAS,R.TRACK,ADJ
7041481
Unavailable
22
SPACER,SHOCK RETAINER(10)
5210953
$6.39
23
SPRING,COMPRESSION
7041484-067
$214.99
24
CLIP-PUSH ON
7080394
$2.39
25
ROLLER,SPRING,ADJ.
5431909
$5.75
26
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
27
SHIELD,SPRING
5410874
$20.22
27
SHIELD,SPRING
5410874
$20.22
28
BUSHING, NYLON
3573910
Unavailable
29
SPRING,.331 COMP(LT),BLK.
7041404-067
$144.99
30
RING,SPRING PRELOAD ADJ.
5431734
$52.60
31
ROD, SHOCK
1541014-067
$92.99
32
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
32
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
33
Spacer
5333028
$1.59
34
SHOCK,F.TRACK,ADJ HVY B
7041485
Unavailable
35
BOLT(10)
7515514
$7.19
