PISTON and CRANKSHAFT CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURING (4938493849C011)

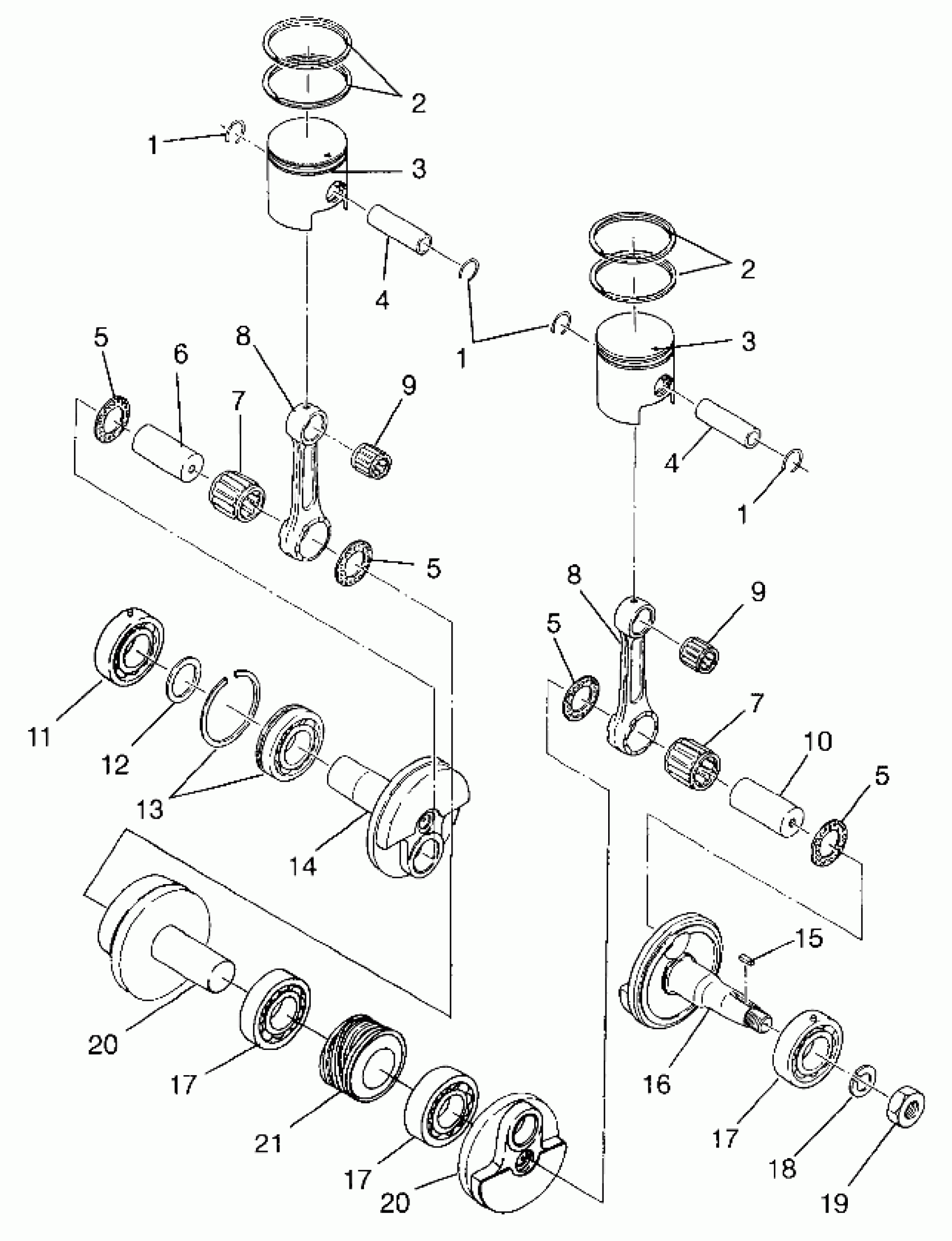

Polaris CLASSIC TOURING - 0973365 PISTON and CRANKSHAFT CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURING (4938493849C011) Diagram
#
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING,PISTON,STD. (Standard)
3084342
$47.60
2
RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084343
Unavailable
2
RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)
3084344
$66.65
2
RING,PISTON,STD. (Standard)
3084342
$47.60
2
RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084343
Unavailable
2
RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)
3084344
$66.65
3
PISTON,STD. (Standard)
3085458
Unavailable
3
PISTON,(.25MM O/S) (0.25mm/.010" O/S
3085459
Unavailable
3
PISTON,(.50MM O/S) (0.50mm/.020" O/S)
3085460
$152.37
3
PISTON,STD. (Standard)
3085458
Unavailable
3
PISTON,(.25MM O/S) (0.25mm/.010" O/S
3085459
Unavailable
3
PISTON,(.50MM O/S) (0.50mm/.020" O/S)
3085460
$152.37
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
PIN, CRANK, 2 (57mm)
3083456
Unavailable
7
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
7
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
ROD-CONNECTING
3083252
$164.99
8
ROD-CONNECTING
3083252
$164.99
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
10
PIN,CRANK (56mm)
3083233
$36.41
11
BALL BEARING
3085205
Unavailable
12
Spacer
3085203
$6.39
13
BALL BEARING
3085204
Unavailable
14
CRANKSHAFT 3 (PTO Side)
3085202
Unavailable
15
KEY
3081447
Unavailable
16
CRANKSHAFT #1 (Mag Side)
3083362
Unavailable
16
CRANKSHAFT ASM (Incl. 5-8, 10, 12-14, 16, 17, 20, 21)
3085206
$1,299.99
17
BEARING, BALL
3084586
$44.99
17
BEARING, BALL
3084586
$44.99
17
BEARING, BALL
3084586
$44.99
18
WASHER-SPRING(10)
3083094
$3.17
19
NUT
3083093
$19.99
20
CRANKSHAFT 2 (Center) (Incl. 6, 10)
3083713
$583.49
20
CRANKSHAFT 2 (Center) (Incl. 6, 10)
3083713
$583.49
21
GEAR,DRIVE,OIL PUMP
3083782
$102.13
