OIL TANK / AIR BOX CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURING E97 (4938493849C006)

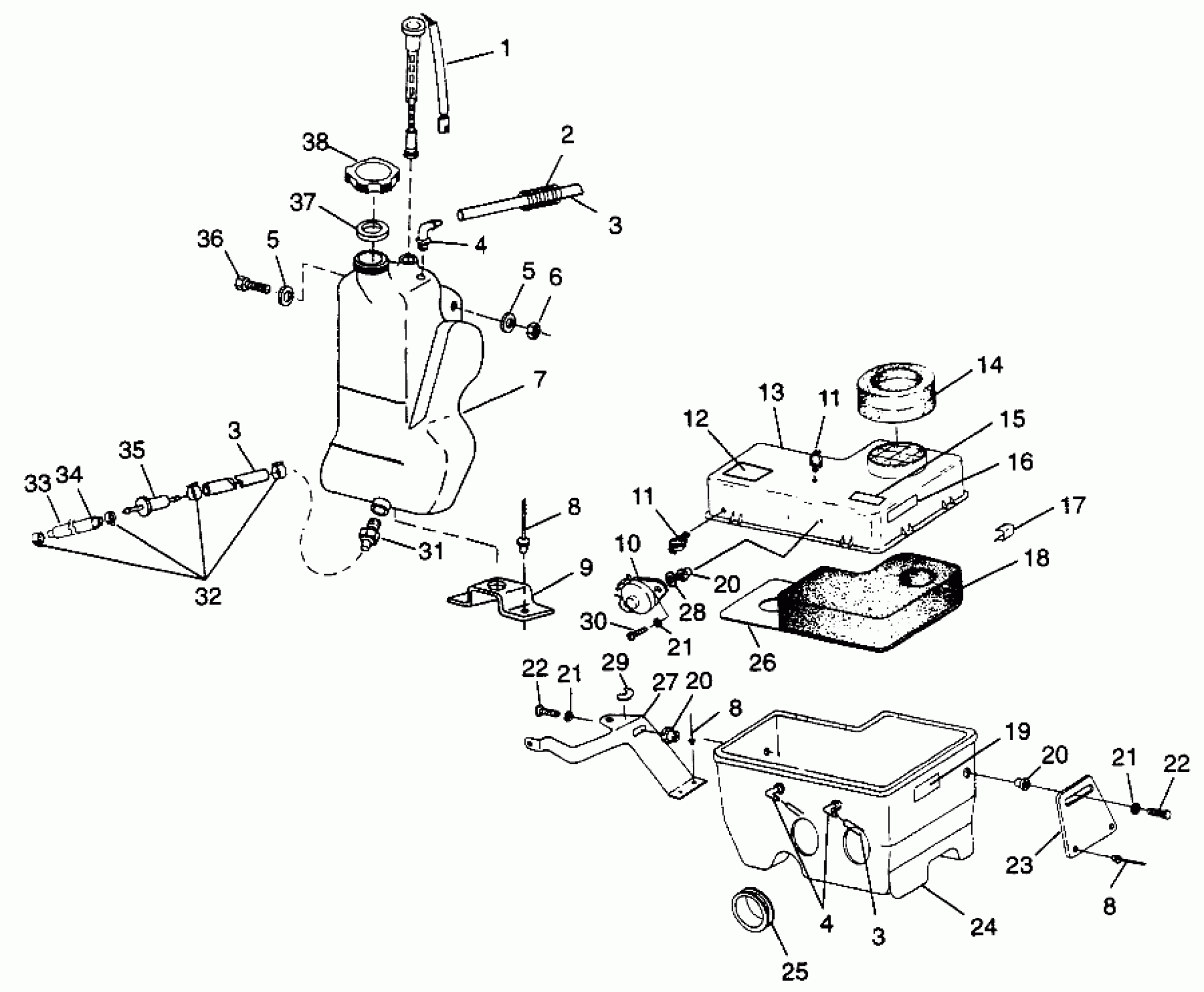

Polaris CLASSIC TOURING - 0973365 OIL TANK / AIR BOX CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURING E97 (4938493849C006) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
3
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
3
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
3
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
4
FITTING,90 DEG,1/8,(10)
7052095
$4.79
4
FITTING,90 DEG,1/8,(10)
7052095
$4.79
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
NUT-LOCK(10)
7542122
$1.49
7
Tank, Oil
5431437
Unavailable
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
BRKT,OILTANK,COINED
5241334
$9.70
10
Fuel Pump (See Pg. A36, Ref. 2)
-------
Unavailable
11
CLIP, PLASTIC(10)
4020139
$4.79
11
CLIP, PLASTIC(10)
4020139
$4.79
12
DECAL,COOL.SYSTEM [No Longer Available]
7075359
Unavailable
13
COVER,AIR SILENCER
5432480
Unavailable
14
DUCT ASM,AIR
2620057
$40.46
15
DECAL,CAUTION,AIRBOX
7075351
Unavailable
16
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
17
CLIP, AIR BOX,(10)
7670055
$7.99
18
BAFFLE ASM.
1253116
$59.99
19
DECAL, GREASING [No Longer Available]
7073426
$7.27
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
21
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
21
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
21
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
22
SCREW(10)
7512279
$1.49
22
SCREW(10)
7512279
$1.49
23
BRACKET, SILENCER
5211274
$9.70
24
SILENCER,INTAKE,DRILLED
5432135
Unavailable
25
BOOT
5410403
$12.99
26
PLATE,AIR SILENCER
5850075
$24.27
27
BRKT,SIL./REM.FILLER
5241792-067
$24.27
28
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
29
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
30
SCREW(10)
7512222
$2.39
31
FITTING, OUTLET
7052042
$8.99
32
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
33
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
34
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
35
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
36
BOLT(10)
7512240
$3.99
37
GASKET-OIL CAP
5810141
$2.39
38
CAP,OIL TANK
5430779
$14.56
