FRONT SUSPENSION and SKI CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURI (4938493849B002)

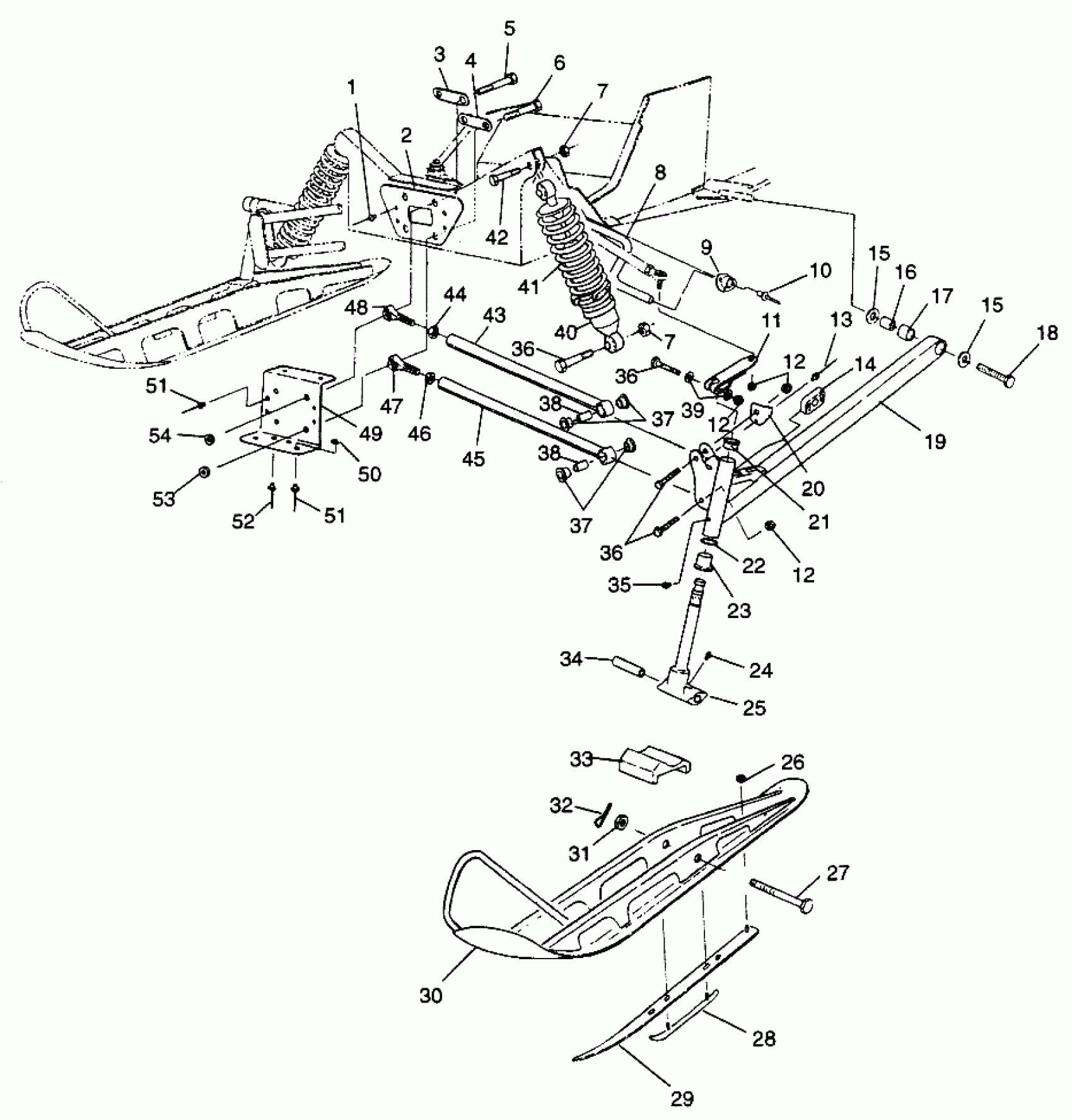

Polaris CLASSIC TOURING - 0973365 FRONT SUSPENSION and SKI CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURI (4938493849B002) Diagram
#
1
RIVET-3/16-.090-.290
7661637
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
STRAP,SPACER TOP
5211344
$7.27
4
STRAP,SPACER BOTTOM
5211345
$12.99
5
BOLT(10)
7512582
$8.79
6
BOLT(10)
7512684
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
8
BAR,SWAY,5/8(X-12)BLK
5224748-067
Unavailable
9
BUSHING,SWAY BAR
5432038
$19.99
10
RIVET(50)
7621433
$1.49
11
ARM,STRG,BLK
5241560-067
Unavailable
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
RIVET(50) Substituted by 7661130
7661643
Unavailable
14
SLIDE,SWAYBAR,5/8
5432331
$28.32
15
WASHER(10)
7555721
$1.49
15
WASHER(10)
7555721
$1.49
16
TUBE, BUSHING
5010310
$9.70
17
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
18
BOLT(10)
7512557
$7.60
19
ARM,TRLG,LH (Incl. 16, 17)
1822384
Unavailable
19
ARM,TRLG,RH (Incl. 16, 17)
1822386
Unavailable
20
STOP,LH,STRG,BLK.
5241569-067
$7.27
20
STOP,RH,STRG,BLK.
5241570-067
$7.27
21
BUSHING-FLANGE
3573909
$2.39
22
WASHER SPECIAL(10)
7556509
$1.59
23
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
24
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
25
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
26
NUT-5/16-18 NYLOK-Y
7542324
$1.49
27
BOLT(10)
7515462
$8.79
28
SKAG, BLK.
1820318-067
$49.99
29
Plate, Skag
1011829-067
$54.99
30
SKI WELD
1820430-067
Unavailable
31
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
32
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
33
Stop, Rubber
5411083
$12.94
34
BUSHING,PIVOT,(10)
5010158
$19.99
35
ZERK,FITTING,THREADED(10)
7080433
$1.49
36
BOLT(10) Substituted by 7517583
7515491
Unavailable
36
BOLT(10) Substituted by 7517583
7515491
Unavailable
36
BOLT(10) Substituted by 7517583
7515491
Unavailable
37
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
37
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
38
BUSHING-RADIUS ROD,(10)
5010127
$7.99
38
BUSHING-RADIUS ROD,(10)
5010127
$7.99
39
WASHER(10) Substituted by 7555832
7555851
Unavailable
40
SHOCK,GAS,IFS,SELECT
7041503
Unavailable
41
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
41
SPRING,COMPRESSION
7041551-067
$74.99
41
RING,SPRING PRELOAD ADJ.
5431734
$52.60
41
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
42
BOLT(10) Substituted by 7515415
7515515
Unavailable
43
ROD,RAD,UPPER
1822381-067
Unavailable
44
NUT JAM(10)
7542520
$2.39
45
ROD,RAD,LOWER,BLK.
1822383-067
Unavailable
46
NUT-JAM(10)
7542711
$2.39
47
ROD END Substituted by 7061027
7060162
$48.56
48
ROD END
7060163
Unavailable
49
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
50
BURR,RIVET(50)
7555904
$1.49
51
RIVET, BLIND(50)
7621467
$1.49
51
RIVET, BLIND(50)
7621467
$1.49
52
RIVET,3/16X.402(50)
7621432
$1.49
53
NUT FLEX,(10)
7542703
Unavailable
54
NUT, LOCK,(10)
7542503
$10.39
