ENGINE MOUNTING CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURING E97336 (4938493849C004)

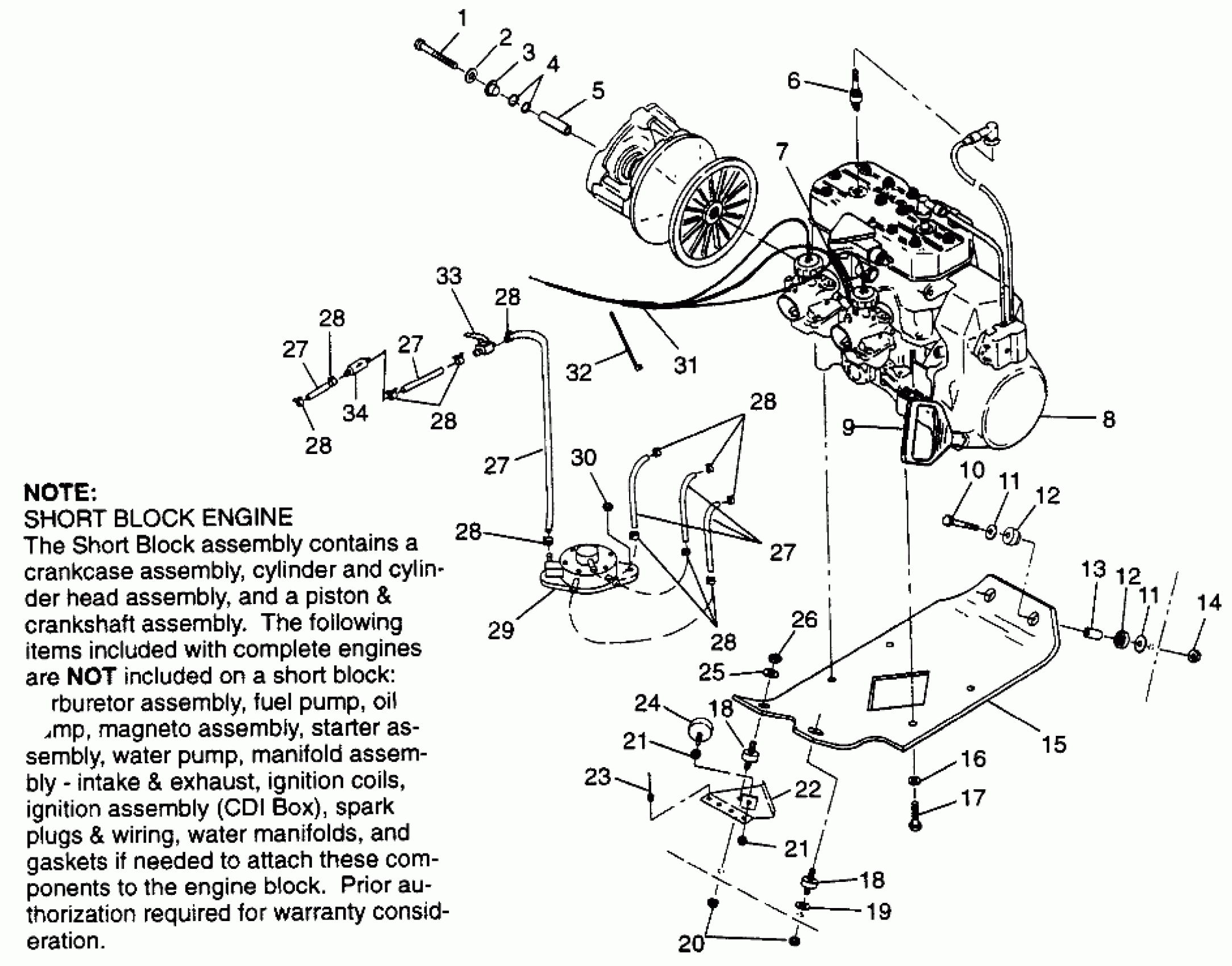

Polaris CLASSIC TOURING - 0973365 ENGINE MOUNTING CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURING E97336 (4938493849C004) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
SPARKPLUG, RN3C(8)
3070166
$3.99
7
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
8
ENG.(S.B.)EC50PL-16/19/20 [No Longer Available]
3085397
Unavailable
9
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
10
SCREW(10)
7512530
$5.59
11
WASHER(10)
7555740
$1.59
11
WASHER(10)
7555740
$1.59
12
MOUNT, ENGINE
5410390
Unavailable
12
MOUNT, ENGINE
5410390
Unavailable
13
TUBE,SPACER
5333354
Unavailable
14
NUT,FLANGE(10)
7542522
$5.59
15
PLATE,MTR.MT,(LWT)
5131192
$48.02
16
WASHER LOCK(10)
7553101
$3.99
17
BOLT(10)
7512539
$3.99
18
MOUNT,ENG.
3110061
$84.99
18
MOUNT,ENG.
3110061
$84.99
19
WASHER,FLAT(10)
7555915
$3.19
20
NUT FLEX LOC,(10)
7542402
$6.39
21
NUT,HEX(10)
7542414
$4.79
21
NUT,HEX(10)
7542414
$4.79
22
LIMITER,TORQUE,BLK.
1012048-067
$38.71
23
RIVET-3/16-.090-.290
7661637
$1.49
24
STOP,TORQUE,COARSE,1.94 DIA
3110063
$29.99
25
WASHER(10) Substituted by 7555806
7555720
$0.79
26
NUT,FLEXLOCK,(10)
7547008
$6.39
27
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
HOSE CLAMP, RED
7080003
$1.49
28
HOSE CLAMP, RED
7080003
$1.49
28
HOSE CLAMP, RED
7080003
$1.49
28
HOSE CLAMP, RED
7080003
$1.49
28
HOSE CLAMP, RED
7080003
$1.49
28
HOSE CLAMP, RED
7080003
$1.49
28
HOSE CLAMP, RED
7080003
$1.49
29
Fuel Pump (See Pg. A36, Ref. 2)
-------
Unavailable
30
NUT-LOCK(10)
7542122
$1.49
31
CABLE,THROTTLE,W/OIL
7080552
Unavailable
32
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
33
VALVE,FUEL SHUT-OFF
7052060
Unavailable
34
FILTER FUEL,(10)
2530008
$4.84
