COOLING SYSTEM CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURING E973365 (4938493849B008)

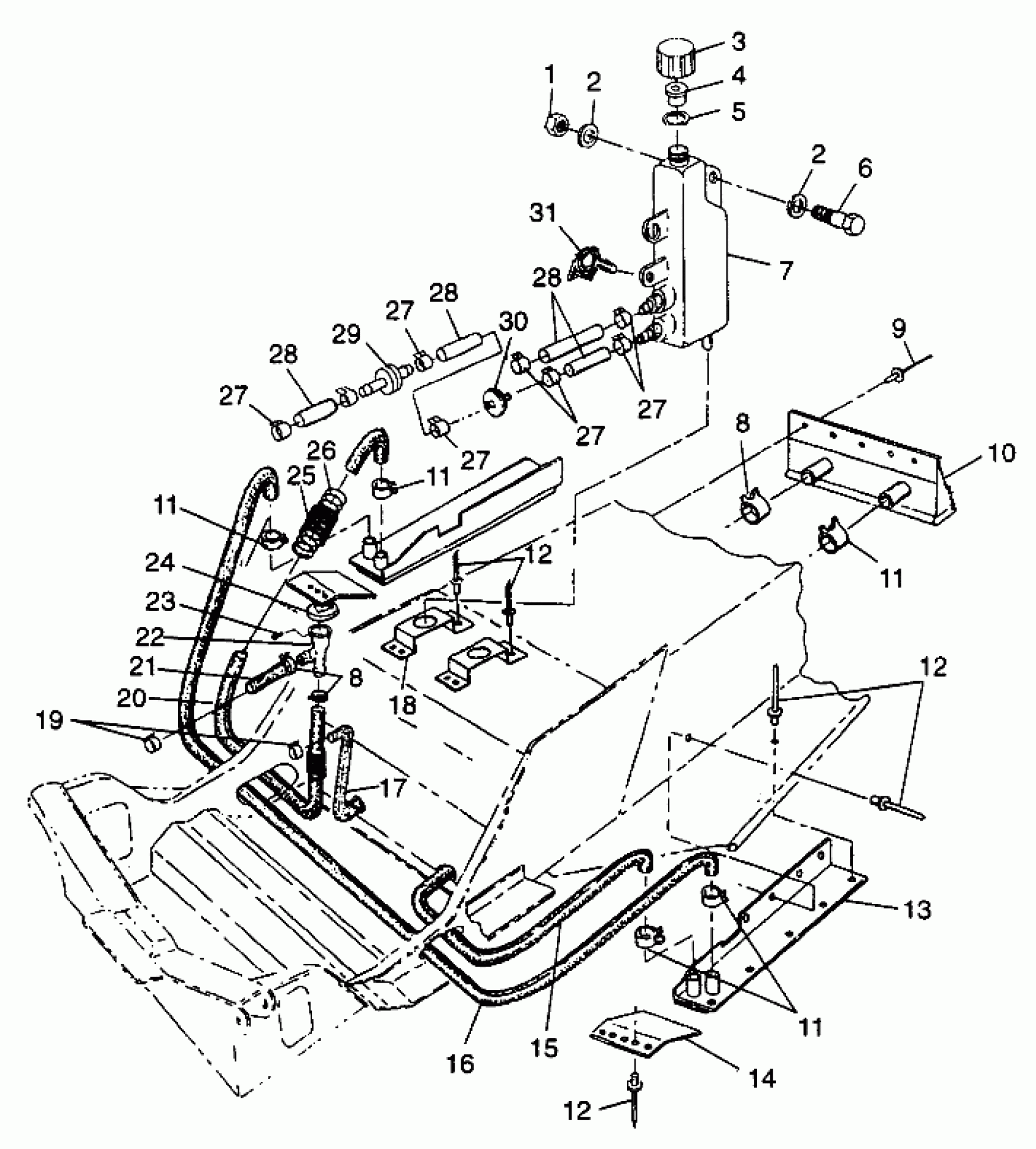

Polaris CLASSIC TOURING - 0973365 COOLING SYSTEM CLASSIC TOURING 0973365 and EUROPEAN CLASSIC TOURING E973365 (4938493849B008) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Grey)
7080564
$10.32
8
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Grey)
7080564
$10.32
9
RIVET-3/16-.090-.290
7661637
$1.49
10
EXCHANGER WELD,CTR.
2511225
$204.76
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
COOLING WELD,LH SIDE
1240020
$134.92
13
COOLING WELD,RH SIDE
1240021
$167.60
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE,LH,SIDE/CTR.
5411114
$17.43
16
HOSE,CROSSOVER
5410557
Unavailable
17
HOSE,PUMP/CTR.EXT.
5410743
Unavailable
18
BRKT,OILTANK,COINED
5241334
$9.70
19
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842 (Black)
7080563
Unavailable
20
HOSE,RH,FILLER OUT,EXTRUSION
5411011
Unavailable
21
HOSE,ENG.OUT/FILLER
5411010
$24.27
22
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
23
Screw
7517298
$4.79
24
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
25
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
26
SPRING,HOSE RETAINER
7041079
$4.95
27
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
28
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
28
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
28
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
29
VALVE, CHECK
7052038
$10.51
30
FILTER,COOLANT,LGE.
2530024
Unavailable
31
CLIP, PLASTIC(10)
4020139
$4.79
