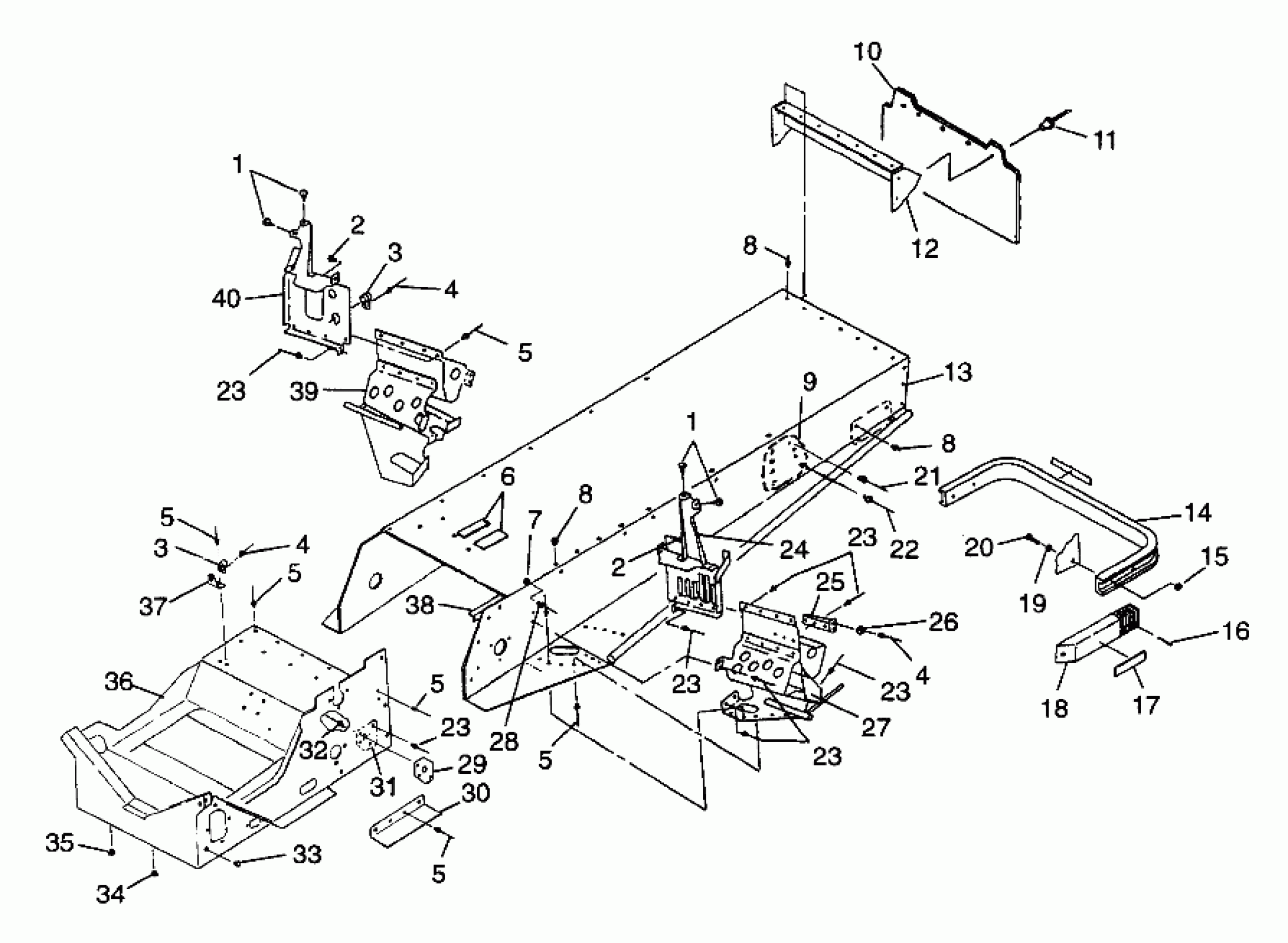

Polaris CLASSIC - 0973865 TUNNEL CLASSIC 0973865 (4938463846A005) Diagram
#
1
BUMPER,HOOD
5410768
$2.95
1
BUMPER,HOOD
5410768
$2.95
2
SCREW(10)
7512057
$2.38
2
SCREW(10)
7512057
$2.38
3
GUIDE, RECOIL
5431385
$10.51
3
GUIDE, RECOIL
5431385
$10.51
4
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET,3/16X.402(50)
7621432
$1.49
5
RIVET-3/16-.090-.290
7661637
$1.49
5
RIVET-3/16-.090-.290
7661637
$1.49
5
RIVET-3/16-.090-.290
7661637
$1.49
5
RIVET-3/16-.090-.290
7661637
$1.49
5
RIVET-3/16-.090-.290
7661637
$1.49
5
RIVET-3/16-.090-.290
7661637
$1.49
6
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
7
SNAP-MALE(10)
7080227
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
9
PAD,LH,RR SUSP(X12),BLK
1012431-067
$19.03
9
PAD,RH,RR SUSP(X12),BLK
1012432-067
$18.23
10
FLAP,SNOW
5432033
Unavailable
11
POP RIVET(50)
7621418
$1.49
12
PANEL,TUNNELBACK
5241053-067
$308.99
13
TUNNEL,LIQ.,BLK. Substituted by 1012343-067 (Incl. 8-9, 12, 38 and Heat Exchangers)
1012343
Unavailable
14
BUMPER,REAR,STD.
5224674-067
Unavailable
15
NUT-LOCK(10)
7542122
$1.49
16
SCREW(10)
7511863
$1.99
17
REFLECTOR RED
2670070
$9.91
18
CAP, BUMPER, BLK.
5430930-070
Unavailable
19
WASHER(10)
7558301
$1.49
20
BOLT(10)
7512240
$3.99
21
RIVET,SEMI-TUBE,(50)
7661841
$1.49
22
RIVET(50)
7661846
$1.99
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
MT,CONSOLE,LH
1011951-067
$35.51
25
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
26
STOP,SIDEPANEL BUMPER
5411172
Unavailable
27
FOOTREST ASM, LH Substituted by 1012544
1012337
Unavailable
28
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
29
PLATE,F.SUSP,OUT,X-12,BLK
5211746-067
$13.39
30
GUARD,ADAPTER GUIDE
5222857
$12.94
31
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
31
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
32
RIVET(50) Substituted by 7661130
7661643
Unavailable
33
PLUG, HOLE(10)
7080416
$5.65
34
PLUG-HOLE
7080398
$4.84
35
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
36
BULKHEAD ASM,(500),BLK. Substituted by 1012607-067
1012481-067
$436.51
37
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
38
BRACE,TUNNEL,REINF.CORNER Substituted by 5244452
5241852
Unavailable
39
FOOTREST ASM, RH Substituted by 1011935
1012338
Unavailable
40
MT,CONSOLE,RH
1011952-067
$339.99
