STARTING MOTOR CLASSIC 0973865 (4938463846C014)

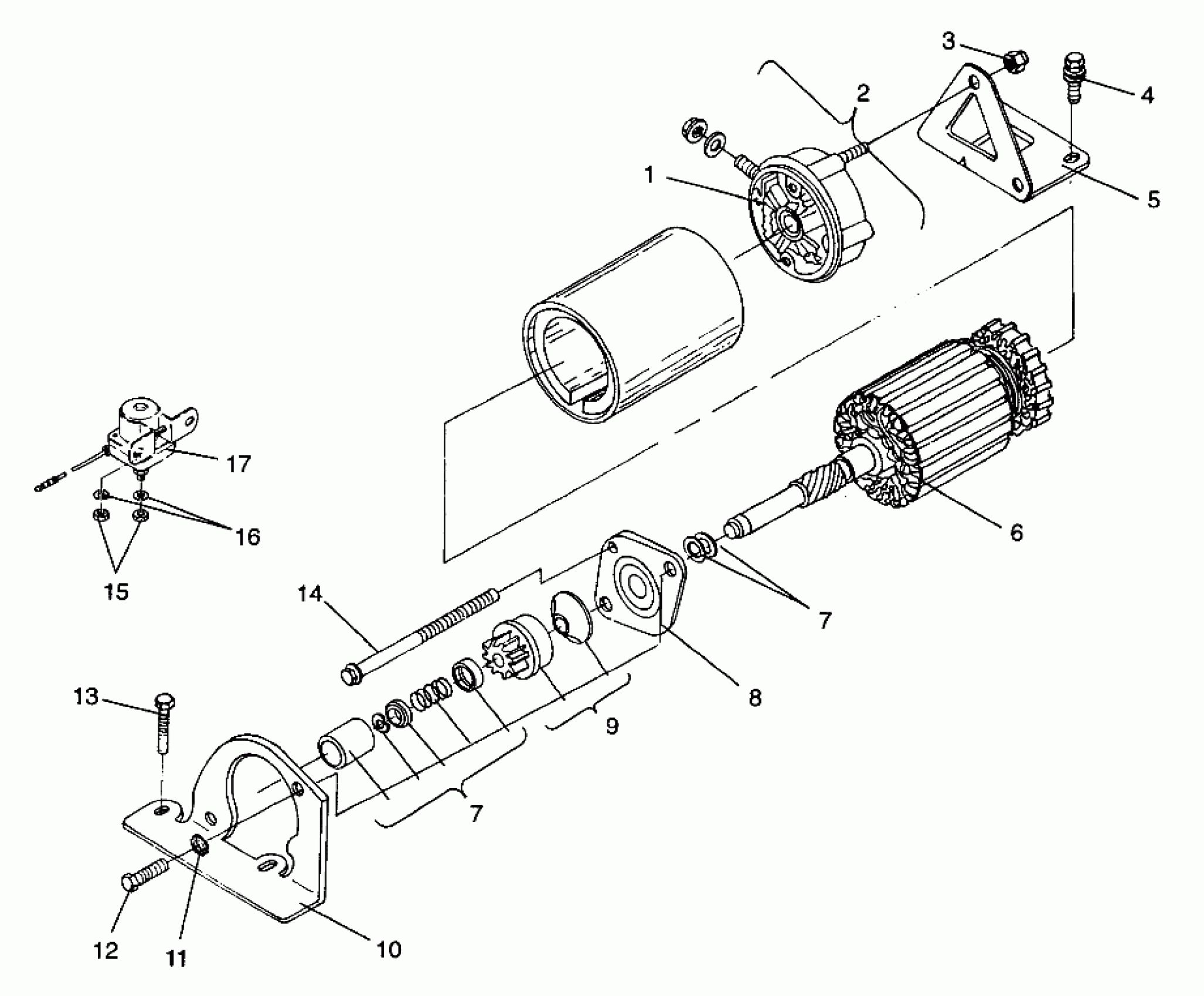

Polaris CLASSIC - 0973865 STARTING MOTOR CLASSIC 0973865 (4938463846C014) Diagram
#
-
MOTOR,STARTER,(DOMESTIC)
4170006
Unavailable
1
ASM., BRUSH & SCREW
-------
Unavailable
1
ASM., BRUSH
-------
Unavailable
1
BUSHING, INSULATION
-------
Unavailable
1
WASHER, INSULATION
-------
Unavailable
1
Nut
-------
Unavailable
1
KIT,BRUSH&SPRING
2200759
$59.99
2
KIT,COMMUTATOR CAP ASM. (Incl. 1)
2200758
$82.39
3
NUT(10)
7542153
$1.59
4
SCREW(10)
7516815
$6.39
5
BRKT,STARTER,FR.(2 CYL)
5241271
$32.37
6
KIT,ARMATURE ASM.
2200756
$169.99
7
PINION, STOP
-------
Unavailable
7
KIT,DRIVE HDWE.
2200755
Unavailable
7
COVER, DUST
-------
Unavailable
7
Washer, Thrust
-------
Unavailable
7
SPACER
-------
Unavailable
7
WASHER, CURVED SPRING
-------
Unavailable
7
SPRING, ANTIDRIFT
-------
Unavailable
7
RING, LOCK
-------
Unavailable
7
PINION, STOP
-------
Unavailable
7
KIT,DRIVE HDWE.
2200755
Unavailable
7
COVER, DUST
-------
Unavailable
7
Washer, Thrust
-------
Unavailable
7
SPACER
-------
Unavailable
7
WASHER, CURVED SPRING
-------
Unavailable
7
SPRING, ANTIDRIFT
-------
Unavailable
7
RING, LOCK
-------
Unavailable
8
KIT,DRIVECAP ASM.
2200757
$59.99
9
PLATE, DRIVE
-------
Unavailable
9
PINION
-------
Unavailable
9
KIT,DRIVE ASM.
2200754
Unavailable
10
BRKT,R.STARTER
5240956
$16.99
11
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
12
BOLT(10) Substituted by 7512492
7515548
Unavailable
13
SCREW & WASHER ASM.(10)
7516730
$6.39
14
BOLT, THRU
-------
Unavailable
14
KIT,SCREW
2200753
$29.99
15
NUT(10)
3082939
Unavailable
16
WASHER SPRING(10)
3080077
$2.39
17
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 15, 16)
3083211
Unavailable
