REAR TORQUE ARM CLASSIC 0973865 (4938463846B012)

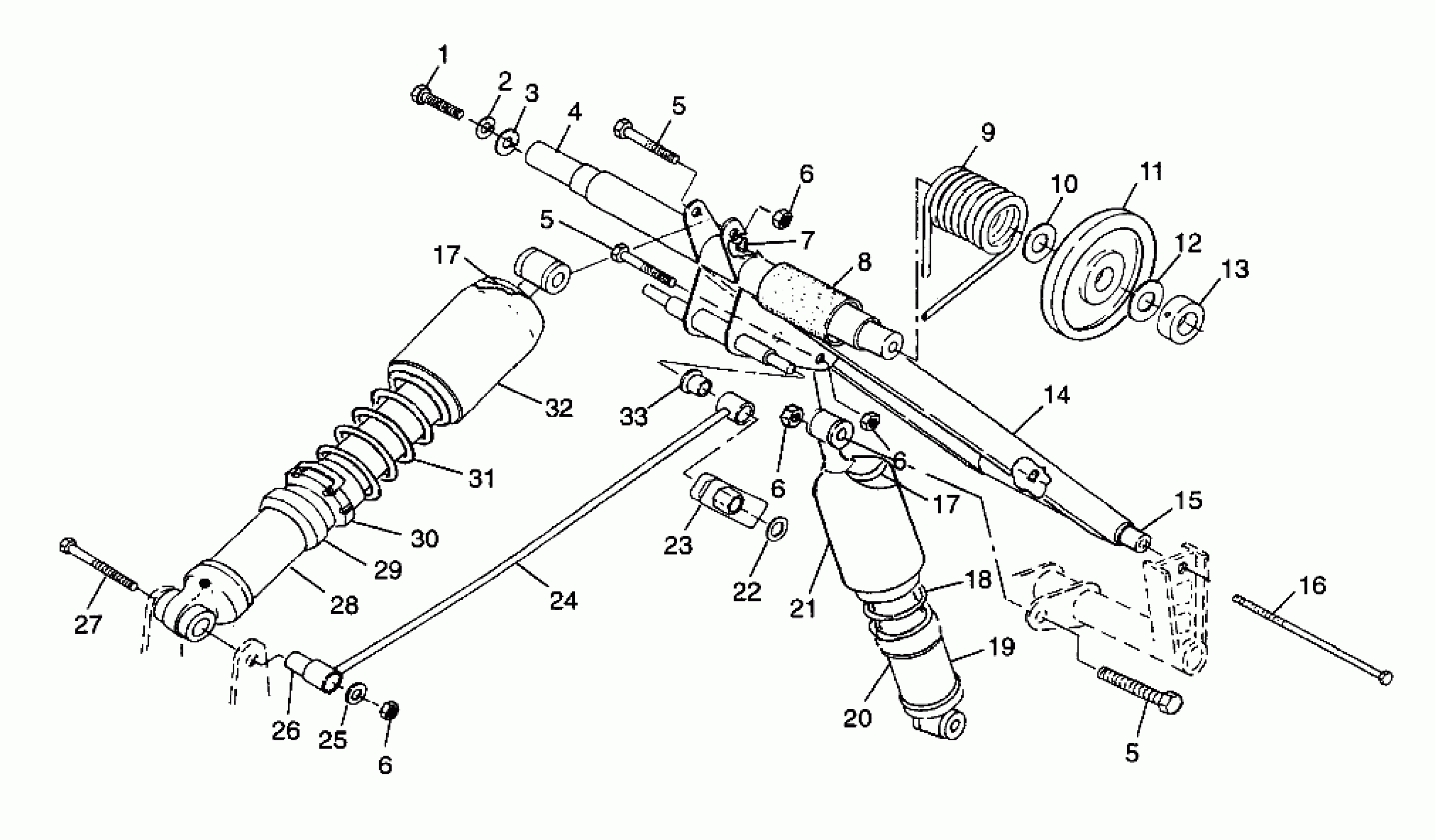

Polaris CLASSIC - 0973865 REAR TORQUE ARM CLASSIC 0973865 (4938463846B012) Diagram
#
1
BOLT(10)
7512589
$1.59
2
WASHER-LOCK, 7/16-B
7552614
$1.59
3
WASHER ,(10)
7555984
$2.39
4
SHAFT,RTA,UPPER
5020814
Unavailable
5
BOLT Substituted by 7515491
7515433
$1.59
5
BOLT Substituted by 7515491
7515433
$1.59
5
BOLT Substituted by 7515491
7515433
$1.59
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
SLEEVE,TORSION SPRING
5431923
$6.39
9
SPRING,RH,TORSION,BLK. (.406 Dia.) (Std.)
7041395-067
Unavailable
9
SPRING,LH,TORS,.421,BLK. (Opt.)
7041406-067
$95.19
9
SPRING,RH,TORS,.421,BLK. (Opt.)
7041407-067
Unavailable
9
SPRING,LH,TORSION,BLK. (.406 Dia.) (Std.)
7041394-067
Unavailable
10
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
11
Wheel, Carrier
1543023
Unavailable
12
WASHER, THRUST(10) Substituted by 7555871
7555862
$5.56
13
SCREW-SET(10)
7512257
$3.99
13
COLLAR-BRG. LOCK
5010155
Unavailable
14
ARM,RR TORQUE(XTRA 12),BLK
1541029-067
Unavailable
15
Shaft
5020898
Unavailable
16
Screw
7517232
$19.99
17
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
17
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
18
SPRING,COMPRESSION,BLK.
7041561-067
$133.99
19
SHOCK,RR.TRK,X12
7041587
Unavailable
20
RETAINER,SPRING Substituted by 5245067
5241276-067
Unavailable
21
SHIELD-SPRING
5430671
$24.27
22
CLIP-PUSH ON
7080394
$2.39
23
ROLLER,SPRING,ADJ.
5431909
$5.75
24
ROD, SHOCK
1541014-067
$92.99
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
26
Spacer
5333028
$1.59
27
BOLT(10)
7515514
$7.19
28
SHOCK,F.TRK,X12,ADJ
7041586
Unavailable
29
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
30
RING,SPRING PRELOAD ADJ.
5431734
$52.60
31
SPRING,R.SUSP,BLK,LXC
7041351-067
Unavailable
32
SHIELD,SPRING
5410874
$20.22
33
BUSHING, NYLON
3573910
Unavailable
