OIL TANK / AIR BOX CLASSIC 0973865 (4938463846C003)

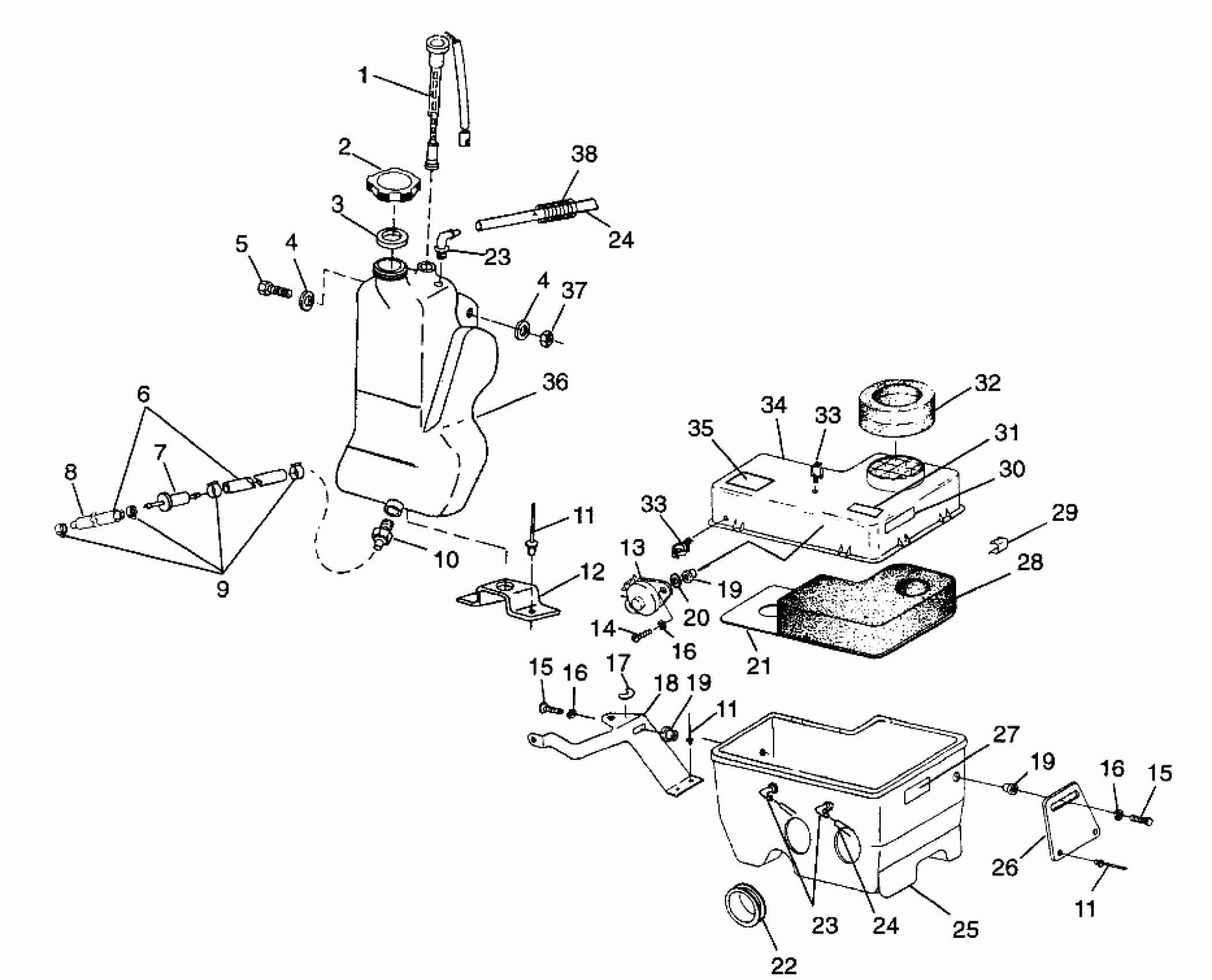

Polaris CLASSIC - 0973865 OIL TANK / AIR BOX CLASSIC 0973865 (4938463846C003) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512240
$3.99
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
9
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
10
FITTING, OUTLET
7052042
$8.99
11
RIVET-3/16-.090-.290
7661637
$1.49
11
RIVET-3/16-.090-.290
7661637
$1.49
11
RIVET-3/16-.090-.290
7661637
$1.49
12
BRKT,OILTANK,COINED
5241334
$9.70
13
Asm., Fuel Pump Non-Asbestos (See Pg. A40, Ref. 1)
-------
Unavailable
14
SCREW(10)
7512222
$2.39
15
SCREW(10)
7512279
$1.49
15
SCREW(10)
7512279
$1.49
16
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
16
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
16
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
18
BRKT,SIL./REM.FILLER
5241792-067
$24.27
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
20
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
21
PLATE,AIR SILENCER
5850075
$24.27
22
Boot
5410271
Unavailable
23
FITTING,90 DEG,1/8,(10)
7052095
$4.79
23
FITTING,90 DEG,1/8,(10)
7052095
$4.79
24
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
24
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
25
SILENCER,INTAKE,DRILLED
5432135
Unavailable
26
BRACKET, SILENCER
5211274
$9.70
27
DECAL, GREASING [No Longer Available]
7073426
$7.27
28
BAFFLE ASM.
1253116
$59.99
29
CLIP, AIR BOX,(10)
7670055
$7.99
30
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
31
DECAL,CAUTION,AIRBOX
7075351
Unavailable
32
DUCT ASM,AIR
2620057
$40.46
33
CLIP, PLASTIC(10)
4020139
$4.79
33
CLIP, PLASTIC(10)
4020139
$4.79
34
COVER,AIR SILENCER
5432480
Unavailable
35
DECAL,COOL.SYSTEM [No Longer Available]
7075359
Unavailable
36
Tank, Oil
5431437
Unavailable
37
NUT-LOCK(10)
7542122
$1.49
38
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
