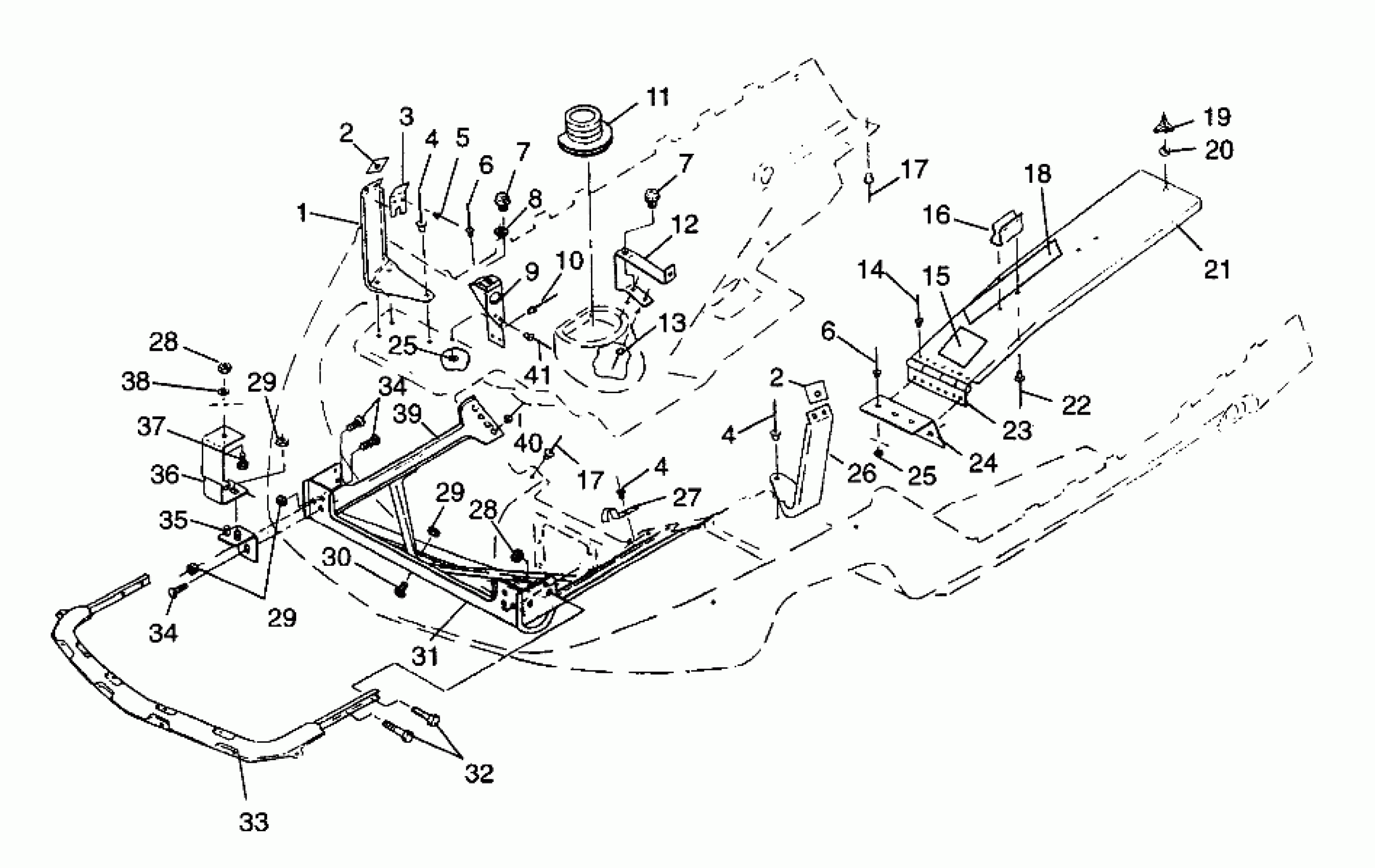

Polaris CLASSIC - 0973865 NOSEPAN CLASSIC 0973865 (4938463846A009) Diagram
#
1
BRKT,RH,SIDEPANEL
5240995
Unavailable
2
NUT, RETAINER(10)
7542146
Unavailable
2
NUT, RETAINER(10)
7542146
Unavailable
3
SHIELD,FASTENER
5240769
$0.90
4
RIVET(50)
7621485
$1.49
4
RIVET(50)
7621485
$1.49
4
RIVET(50)
7621485
$1.49
5
RIVET(50)
7621318
$1.49
6
RIVET(50)
7621433
$1.49
6
RIVET(50)
7621433
$1.49
7
DAMPNER, VIB.
5410467
$8.79
7
DAMPNER, VIB.
5410467
$8.79
8
WASHER, THRUST(10)
7555788
$4.99
9
SUPPORT,MUFFLER,BLK.
1260724-067
$92.99
10
RIVET-3/16-.090-.290
7661637
$1.49
11
Boot, Exhaust
5410502
$24.27
12
BRKT,R.MUFFLER SUPPORT
5240715-067
Unavailable
13
RIVET(50)
7621472
$1.49
14
RIVET, POP(50)
7621330
$1.49
15
DECAL,SUSP,X-12
7076275
Unavailable
16
CLIP,BELT RETAINER
5222769
$8.79
17
RIVET, BLIND(50)
7621467
$1.49
17
RIVET, BLIND(50)
7621467
$1.49
18
DECAL,ENG&CLUTCH(CPSC)
7075350
Unavailable
19
KNOB,CLUTCH GUARD(10)
7080523
$4.03
20
BUMPER,CLUTCHGUARD
5431928
$2.39
21
GUARD,CLUTCH
5240999
Unavailable
22
RIVET(50)
7621429
$1.49
23
HINGE
5210728
Unavailable
24
MT,FR.CLUTCHGUARD
5222904
Unavailable
25
BURR,RIVET(50)
7555904
$1.49
25
BURR,RIVET(50)
7555904
$1.49
26
BRKT,LH,SIDEPANEL
5240994-067
Unavailable
27
CLIP, HALF(10)
7080393
$3.19
28
NUT FLEX-LOC(10)
7542303
$6.39
28
NUT FLEX-LOC(10)
7542303
$6.39
29
NUT(10)
7542153
$1.59
29
NUT(10)
7542153
$1.59
29
NUT(10)
7542153
$1.59
30
BOLT(10)
7512298
$3.99
31
BRACE,HD.SUPPORT,BLK.
5241003-067
$49.21
32
SCREW(10)
7512307
$3.99
33
BUMPER,FRONT
2670146-067
Unavailable
34
BOLT(10)
7512193
$2.39
34
BOLT(10)
7512193
$2.39
35
MOUNT,HINGE,BLK.
1011982-067
$45.99
36
HINGE ASM,HOOD,BLK.
2635013-067
Unavailable
37
SCREW(10)
7512310
$2.39
38
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
39
SUPPORT,LH,BUMPER
1012327-067
$63.49
39
SUPPORT,RH,BUMPER
1012328-067
$133.29
40
RIVET,INTERLOCK,B(50)
7661638
$1.49
41
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
