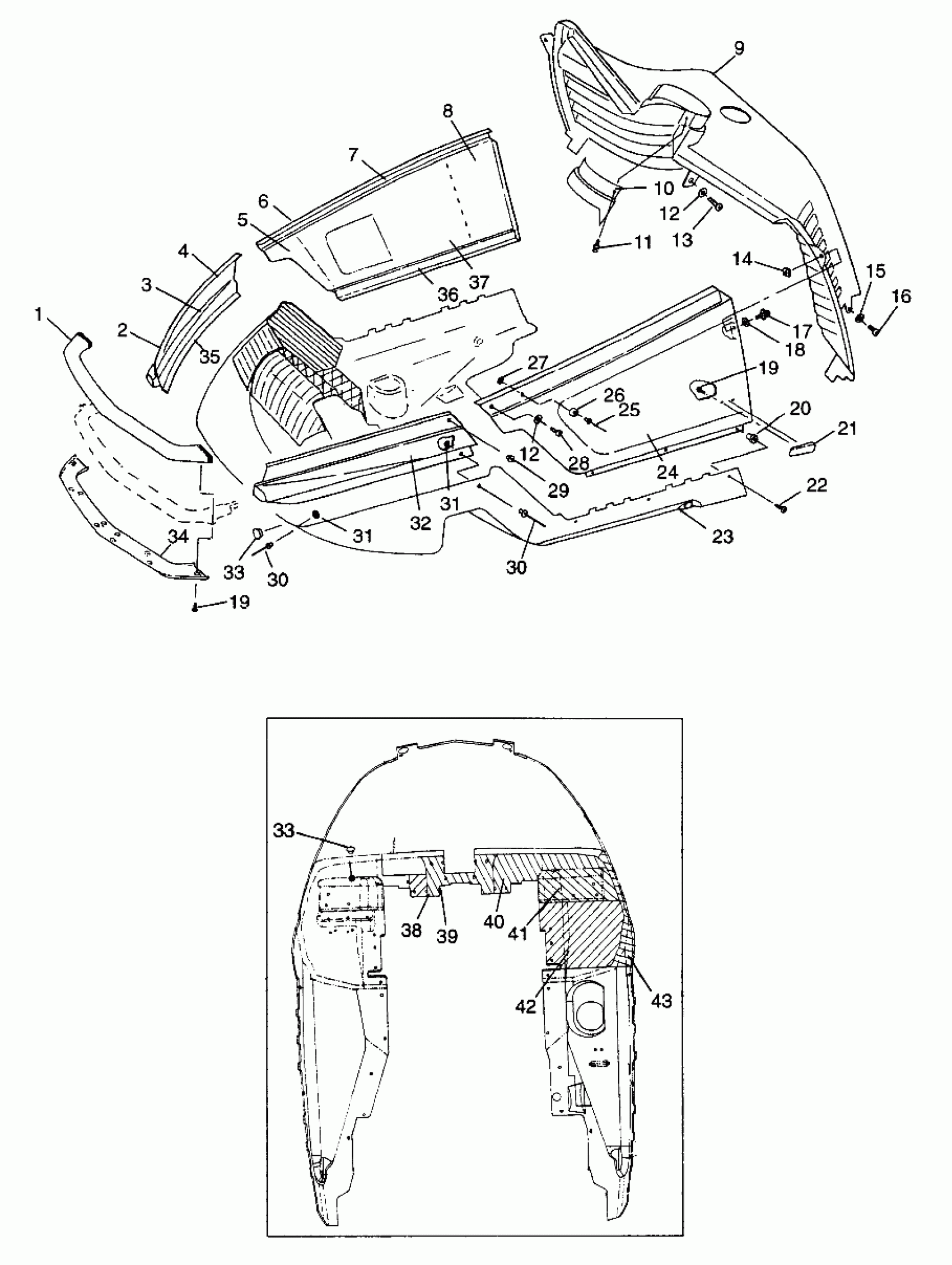

Polaris CLASSIC - 0973865 NOSEPAN CLASSIC 0973865 (4938463846A007) Diagram
#
1
COVER,F.BUMP.TOP,BLK.
5431480-177
Unavailable
2
BUMPER,RH,SIDE/FOIL,BLK.MT. (Incl. 3, 4, 35)
2610010-177
Unavailable
3
FOIL,SIDE BUMP,MIDDLE
5811086
Unavailable
4
FOIL-SIDE BUMPER-UPPER
5811153
Unavailable
5
FOIL,FR.SIDEPANEL
5811072
Unavailable
6
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
6
FOIL,TOP,INNER,SIDEPANEL
5811074
Unavailable
7
FOIL,UP.SIDEPANEL
5811073
Unavailable
8
PANEL,RH,SIDE,FOIL,BLK. (Incl. 5-7, 36, 37)
2610008-177
Unavailable
9
CONSOLE,BASIC
5431467
Unavailable
10
COVER,CONSOLE
5431535
$54.35
11
RIVET,PLASTI-LOC.(50)
7621509
$1.49
12
WASHER(10) Substituted by 7558301
7555776
Unavailable
12
WASHER(10) Substituted by 7558301
7555776
Unavailable
13
SCREW(10)
7512252
Unavailable
14
NUT, RETAINER(10)
7542146
Unavailable
15
WASHER(10)
7555792
$4.79
16
SCREW(10)
7512069
Unavailable
17
RETAINER,HOODLATCH
5431502
$12.94
18
WASHER,RUBBER(10)
7555884
$5.70
19
SCREW(10)
7512068
$2.39
19
SCREW(10)
7512068
$2.39
20
NUT-WELL(10)
7541923
$5.59
21
BUMPER,SIDE PANEL
5432456
Unavailable
22
SCREW,(10)
7517230
$1.49
23
NOSEPAN,EV,STD,W/BATT,BLK
5432385
Unavailable
24
PANEL,LH,SIDE,BLK.MET.
5431742-177
Unavailable
24
FOAM,LH,SIDEPANEL
5811076
Unavailable
25
RIVET(50)
7621315
$3.99
26
BUMPER,RUBBER STOP Substituted by 5411440
5410843
Unavailable
27
RIVET BURR(50)
7555756
$2.99
28
SCREW(10)
7515148
$4.79
29
RIVET(50)
7621472
$1.49
30
RIVET, BLIND(50)
7621467
$1.49
30
RIVET, BLIND(50)
7621467
$1.49
31
BURR,RIVET(50)
7555904
$1.49
31
BURR,RIVET(50)
7555904
$1.49
32
BUMPERSIDE,LH,BLK.
5431492-177
Unavailable
33
PLUG,NOSEPAN HOLE
5410820
$15.99
33
PLUG,NOSEPAN HOLE
5410820
$15.99
34
COVER,F.BUMP.BOTTOM
5431481
Unavailable
35
FOIL,SIDE BUMP,LOWER
5811085
Unavailable
36
FOIL,LOW.SIDEPANEL
5811071
Unavailable
37
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
38
FOIL,LH,SHOCKTOWER,#12
5811188
Unavailable
39
FOIL-CENTER, #11
5811187
Unavailable
40
FOIL,RH,SHOCKTOWER,#13
5811192
Unavailable
41
FOIL,RH,SHOCKTOWER,TOP,#14
5811193
Unavailable
42
FOIL,RH,SHOCK TOWER,LOW.
5811194
Unavailable
43
FOIL,RH,PANSIDE,#16
5811195
Unavailable
