ENGINE MOUNTING CLASSIC 0973865 (4938463846C001)

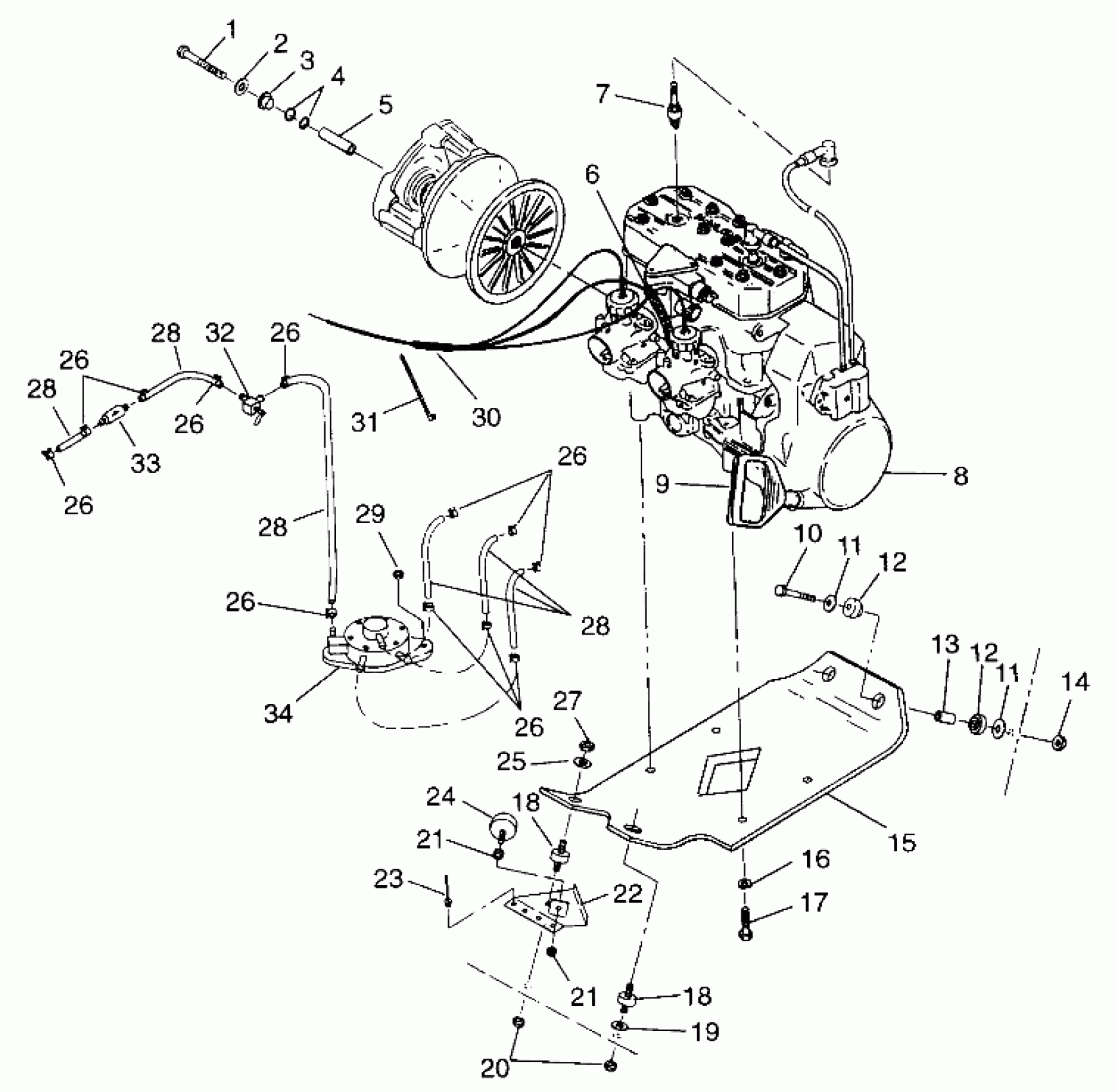

Polaris CLASSIC - 0973865 ENGINE MOUNTING CLASSIC 0973865 (4938463846C001) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CONDUIT,CONVOL(26 CM) Substituted by 4010051-30
4010051-26
Unavailable
7
SPARKPLUG, RN3C(8)
3070166
$3.99
8
ENG.(S.B.)EC50PL-17/18 [No Longer Available] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization
3085396
Unavailable
9
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
10
SCREW(10)
7512530
$5.59
11
WASHER(10)
7555740
$1.59
11
WASHER(10)
7555740
$1.59
12
MOUNT, ENGINE
5410390
Unavailable
12
MOUNT, ENGINE
5410390
Unavailable
13
TUBE,SPACER
5333354
Unavailable
14
NUT,FLANGE(10)
7542522
$5.59
15
PLATE,MTR.MT,(LWT)
5131192
$48.02
16
WASHER LOCK(10)
7553101
$3.99
17
BOLT(10)
7512539
$3.99
18
MOUNT,ENG.
3110061
$84.99
18
MOUNT,ENG.
3110061
$84.99
19
WASHER,FLAT(10)
7555915
$3.19
20
NUT FLEX LOC,(10)
7542402
$6.39
21
NUT,HEX(10)
7542414
$4.79
21
NUT,HEX(10)
7542414
$4.79
22
LIMITER,TORQUE,BLK.
1012048-067
$38.71
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
STOP,TORQUE,COARSE,1.94 DIA
3110063
$29.99
25
WASHER(10) Substituted by 7555806
7555720
$0.79
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
27
NUT,FLEXLOCK,(10)
7547008
$6.39
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
29
NUT-LOCK(10)
7542122
$1.49
30
CABLE,THROTTLE,W/OIL
7080520
Unavailable
31
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
32
VALVE,FUEL SHUT-OFF
7052060
Unavailable
33
FILTER FUEL,(10)
2530008
$4.84
34
Asm., Fuel Pump, Non-Asbestos (See Pg., Ref.)
-------
Unavailable
