TUNNEL ASSEMBLY CLASSIC 0952865 (4929072907A006)

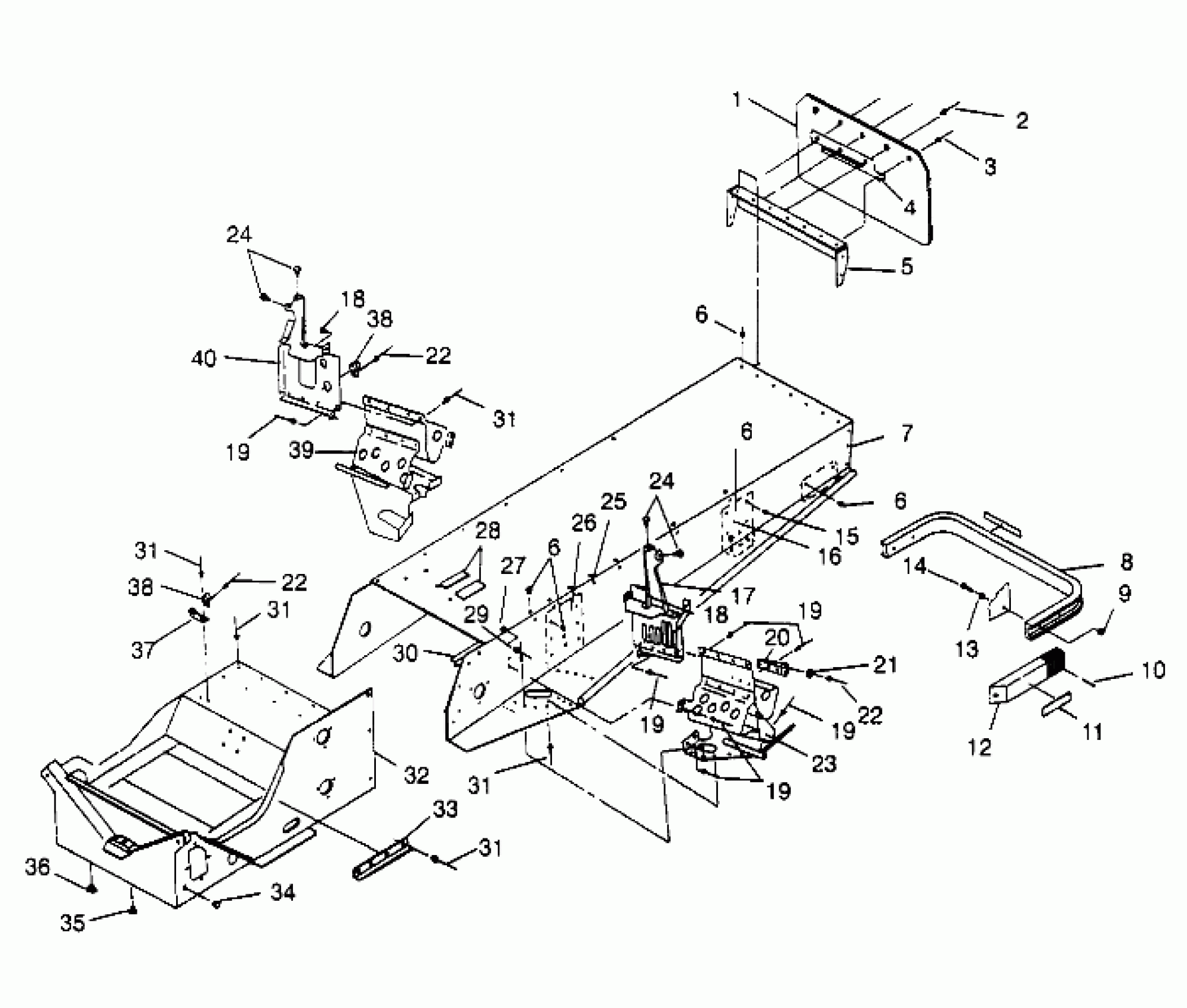

Polaris CLASSIC - 0952865 TUNNEL ASSEMBLY CLASSIC 0952865 (4929072907A006) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
2
RIVET(50)
7661641
Unavailable
3
POP RIVET(50)
7621418
$1.49
4
RETAINER, FLAP Substituted by 5241874-067
5222659-067
Unavailable
5
PANEL,TUNNELBACK
5240599
Unavailable
6
RIVET ,(50)
7661829
Unavailable
6
RIVET ,(50)
7661829
Unavailable
6
RIVET ,(50)
7661829
Unavailable
6
RIVET ,(50)
7661829
Unavailable
7
TUNNEL ASM,BLK,'LIQ'
1012085
$366.65
8
BUMPER,REAR,BLK.
5224334-067
Unavailable
9
NUT-LOCK(10)
7542122
$1.49
10
SCREW(10)
7511863
$1.99
11
REFLECTOR RED
2670070
$9.91
12
CAP, BUMPER, BLK.
5430930-070
Unavailable
13
WASHER(10)
7558301
$1.49
14
BOLT(10)
7512240
$3.99
15
RIVET,(50)
7661825
$1.49
16
BRKT,LH,R.SUSP
1011857-067
Unavailable
17
MT,CONSOLE,LH
1011951-067
$35.51
18
SCREW(10)
7512057
$2.38
18
SCREW(10)
7512057
$2.38
19
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
21
STOP, BUMPER
5410826
Unavailable
22
RIVET,3/16X.402(50)
7621432
$1.49
22
RIVET,3/16X.402(50)
7621432
$1.49
22
RIVET,3/16X.402(50)
7621432
$1.49
23
FOOTREST ASM,LH,BLK. Substituted by 1012544
1011934
Unavailable
24
BUMPER,HOOD
5410768
$2.95
24
BUMPER,HOOD
5410768
$2.95
25
NUT,SERT(10)
7541938
Unavailable
26
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
27
SNAP-MALE(10)
7080227
Unavailable
28
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
29
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
30
BRACE,REINF.TUNNEL
5240242
Unavailable
31
RIVET-3/16-.090-.290
7661637
$1.49
31
RIVET-3/16-.090-.290
7661637
$1.49
31
RIVET-3/16-.090-.290
7661637
$1.49
31
RIVET-3/16-.090-.290
7661637
$1.49
31
RIVET-3/16-.090-.290
7661637
$1.49
32
BULKHEAD,BLK.
1012257-067
$396.83
33
GUARD,ADAPTER GUIDE
5222857
$12.94
34
PLUG, HOLE(10)
7080416
$5.65
35
PLUG-HOLE
7080398
$4.84
36
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
37
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
38
GUIDE, RECOIL
5431385
$10.51
38
GUIDE, RECOIL
5431385
$10.51
39
FOOTREST ASM,RH,BLK. Substituted by 1012545
1011935
Unavailable
40
MT,CONSOLE,RH
1011952-067
$339.99
