STEERING ASSEMBLY CLASSIC 0952865 (4929072907B004)

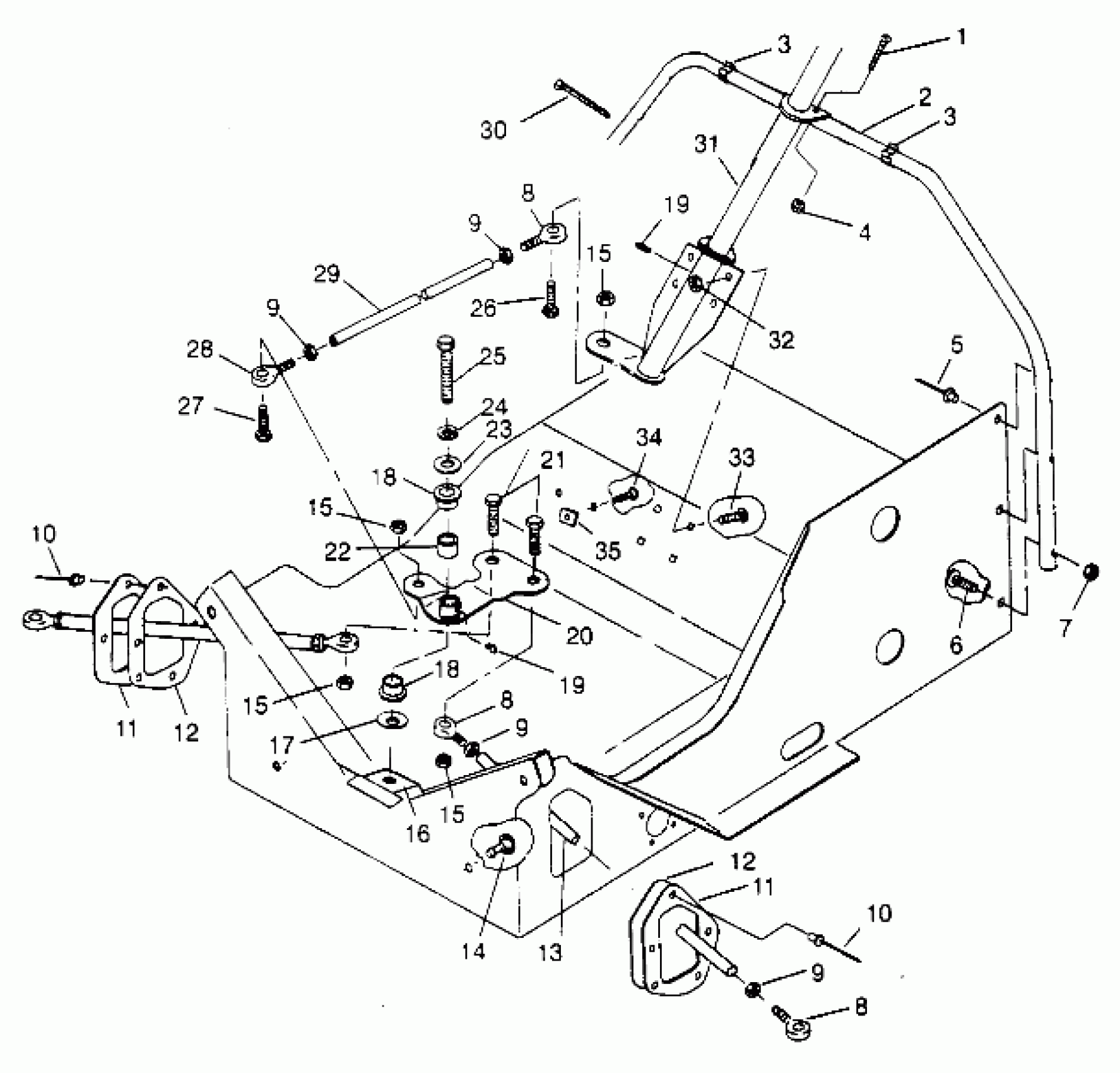

Polaris CLASSIC - 0952865 STEERING ASSEMBLY CLASSIC 0952865 (4929072907B004) Diagram
#
1
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
2
HOOP,STRG,BLK.
1011929-067
$28.19
3
CLIP(10)
7080278
$2.63
3
CLIP(10)
7080278
$2.63
4
NUT(10)
7542124
Unavailable
5
RIVET-3/16-.090-.290
7661637
$1.49
6
BOLT-CARRIAGE(10)
7512275
$3.99
7
NUT, LOCK(10)
7542103
$5.59
8
ROD END, LH Substituted by 7060166
7060151
$48.56
8
ROD END, RH Substituted by 7060167
7060152
$48.56
8
ROD END, LH Substituted by 7060166
7060151
$48.56
8
ROD END, RH Substituted by 7060167
7060152
$48.56
8
ROD END, LH Substituted by 7060166
7060151
$48.56
8
ROD END, RH Substituted by 7060167
7060152
$48.56
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
10
POP RIVET(50)
7621323
$1.49
10
POP RIVET(50)
7621323
$1.49
11
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
11
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
12
BOOT,TIEROD
5410761
$12.94
12
BOOT,TIEROD
5410761
$12.94
13
TIEROD
5020636-067
Unavailable
14
CLIP, PLASTIC(10)
4020139
$4.79
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
16
BLOCK, CTR.STRG.
5130889
$139.68
17
WASHER,WAVE(10)
7555735
$3.99
18
BUSHING
3563907
$3.99
18
BUSHING
3563907
$3.99
19
FITTING,LUB/VEN(10)
7080561
$4.79
19
FITTING,LUB/VEN(10)
7080561
$4.79
20
STRG.ASM,CTR.
1822212
Unavailable
21
BOLT(10)
7515528
$8.79
22
BUSHING
5010322
Unavailable
23
WASHER(10)
7555721
$1.49
24
LOCK WASHER(10)
7553201
$3.99
25
BOLT(10)
7512681
Unavailable
26
BOLT(10) Substituted by 7515492
7512410
Unavailable
27
BOLT(10)
7512404
$3.99
28
ROD END,LH Substituted by 7060164
7060124
$48.56
29
ROD, DRAG, LINK
5333144
Unavailable
30
STRAP, BLK
7080272
Unavailable
31
POST,STRG,BLK.
1823157-067
Unavailable
32
NUT-5/16-18 NYLOK-Y
7542324
$1.49
33
BOLT(10) Substituted by 7512377
7512394
Unavailable
34
BOLT-CARRIAGE(10)
7512263
$3.99
35
SPEED NUT(10)
7670021
$6.99
