NOSEPAN ASSEMBLY CLASSIC 0952865 (4929072907A010)

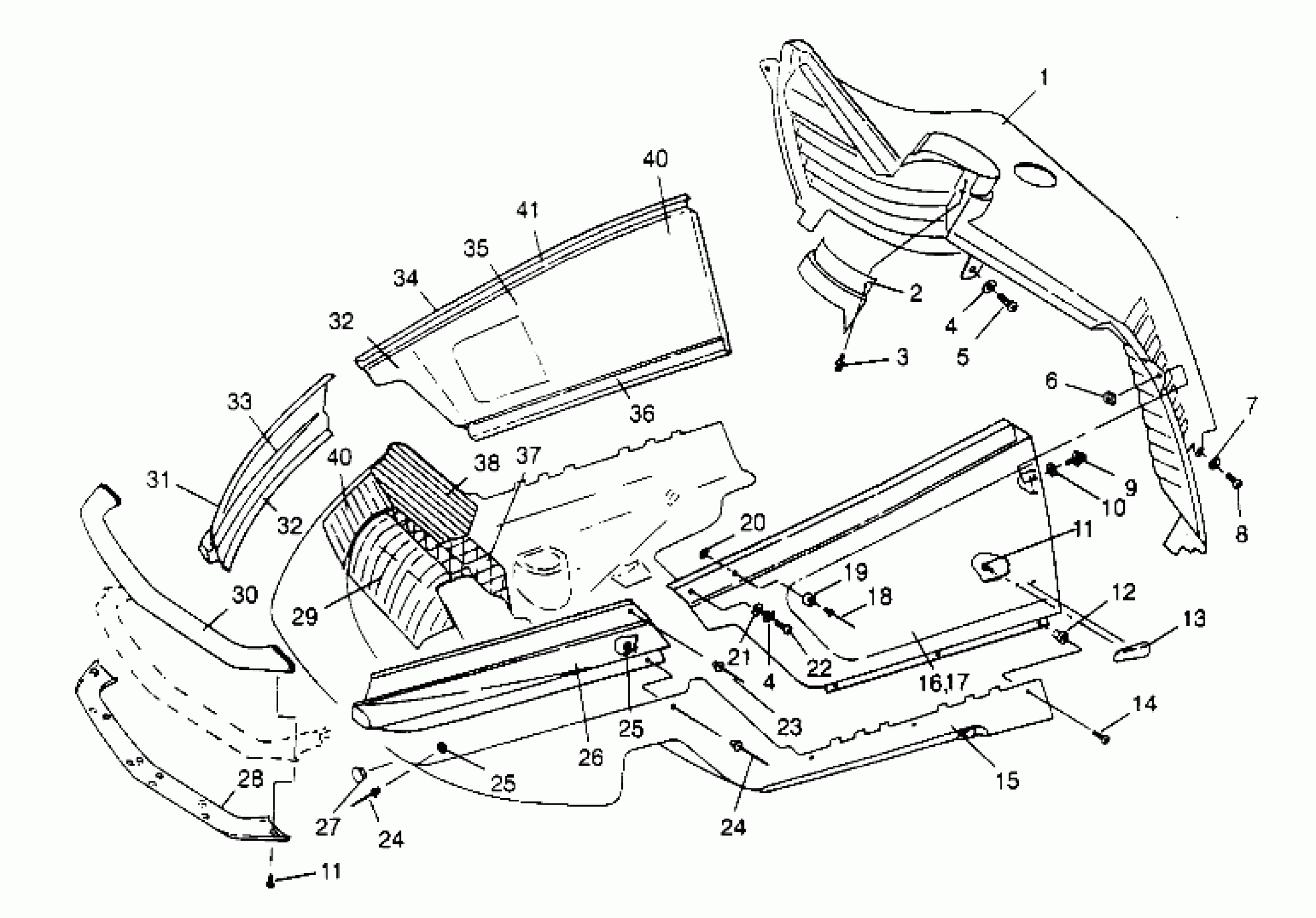

Polaris CLASSIC - 0952865 NOSEPAN ASSEMBLY CLASSIC 0952865 (4929072907A010) Diagram
#
1
CONSOLE,BASIC
5431467
Unavailable
2
COVER,CONSOLE
5431535
$54.35
3
RIVET,PLASTI-LOC.(50)
7621509
$1.49
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
5
SCREW(10)
7512252
Unavailable
6
NUT,RETAINER(10)
7542138
Unavailable
7
WASHER(10)
7555792
$4.79
8
SCREW(10)
7512069
Unavailable
9
RETAINER,HOODLATCH
5431502
$12.94
10
WASHER,RUBBER(10)
7555884
$5.70
11
SCREW(10)
7512068
$2.39
11
SCREW(10)
7512068
$2.39
12
NUT-WELL(10)
7541923
$5.59
13
BUMPER,SIDE PANEL Substituted by 5432456
5431662
Unavailable
14
SCREW(10)
7512279
$1.49
15
NOSEPAN, BLK.
5431899-070
$253.97
16
PANEL,LH,SIDE,BAH.BLUE
5431742-183
Unavailable
17
FOAM,LH,SIDEPANEL
5811076
Unavailable
18
RIVET(50)
7621315
$3.99
19
BUMPER,RUBBER STOP Substituted by 5411440
5410843
Unavailable
20
RIVET BURR(50)
7555756
$2.99
21
WASHER,HI-TEMP,(10)
7555886
Unavailable
22
SCREW(10)
7515148
$4.79
23
RIVET(50)
7621472
$1.49
24
RIVET, BLIND(50)
7621467
$1.49
24
RIVET, BLIND(50)
7621467
$1.49
25
BURR,RIVET(50)
7555904
$1.49
25
BURR,RIVET(50)
7555904
$1.49
26
BUMPERSIDE,LH,BAH.BLUE
5431492-183
Unavailable
27
PLUG,NOSEPAN HOLE
5410820
$15.99
28
COVER,F.BUMP.BOTTOM
5431481
Unavailable
29
FOIL,F.SHOCK TOWER
5810937
Unavailable
30
COVER,F.BUMP.TOP(BAH.BLUE)
5431480-183
Unavailable
31
BUMPER,RH.SIDE/FOIL,BAH.BLUE Substituted by 2610010-183
2610006-183
Unavailable
32
FOIL,FR.SIDEPANEL
5811072
Unavailable
32
FOIL,FR.SIDEPANEL
5811072
Unavailable
33
FOIL,MID.BUMPER Substituted by 5811086
5810932
Unavailable
34
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
34
FOIL,TOP,INNER,SIDEPANEL
5811074
Unavailable
35
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
36
FOIL,LOW.SIDEPANEL
5811071
Unavailable
37
FOIL,R.SHOCK TOWER
5810938
Unavailable
38
FOIL,RH,PAN
5810908
Unavailable
40
PANEL,RH,SIDE,BAH.BLUE (Incl. 35)
2610008-183
Unavailable
40
PANEL,RH,SIDE,BAH.BLUE (Incl. 35)
2610008-183
Unavailable
41
FOIL,UP.SIDEPANEL
5811073
Unavailable
