HOOD ASSEMBLY CLASSIC 0952865 (4929072907A012)

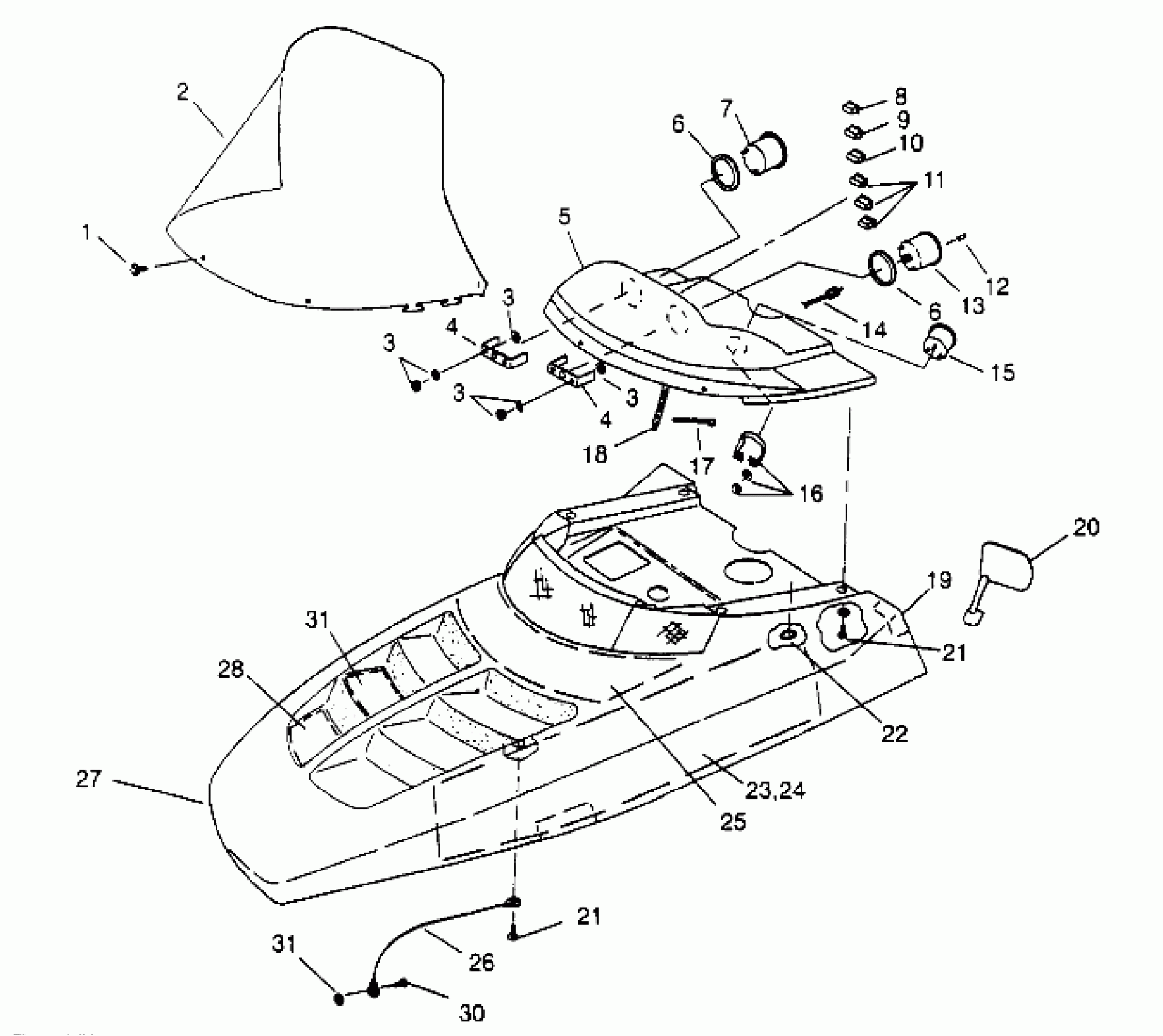

Polaris CLASSIC - 0952865 HOOD ASSEMBLY CLASSIC 0952865 (4929072907A012) Diagram
#
1
RIVET,PLASTI-LOC.(50)
7621509
$1.49
2
WNDSHLD,STD,CLEAR
5431929
Unavailable
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
BRKT,SPEEDO/TACH
3280153
Unavailable
4
BRKT,SPEEDO/TACH
3280153
Unavailable
5
HSG.ASM,INST. (Incl. Warning Decals)
2652129
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
7
BULB TAILLIGHT(10)
4030015
$4.03
7
TACHOMETER,BACKLIT(2P) (Incl. 3, 4, 6)
3280149
Unavailable
8
INDICATOR'TEMP'WARN.
4040011
$32.37
9
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
10
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
11
PLUG,INDIC.HOLE
5430967
$5.65
12
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
13
SPEEDOMETER,BACKLIT (Incl. 3, 4, 6, 12)
3280148
Unavailable
14
CABLE,SPEEDO.
3280094
$60.70
15
INDICATOR,FUEL LEVEL
3280118
$53.59
16
HDWE.PKG,FUEL INDIC.
3280119
$24.79
17
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
18
HARNESS,HEADLIGHT
2460440
Unavailable
19
FOIL,TAPE,1.5X6
5810949
$3.19
20
PR,MIRRORS,R.VIEW
2870938
Unavailable
21
SCREW(10)
7512070
Unavailable
21
SCREW(10)
7512070
Unavailable
22
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
23
FOAM,LH,HOOD
5810876
Unavailable
24
FOAM,RH,HOOD
5810877
Unavailable
24
FOIL,RH,HOOD
5810905
Unavailable
25
FOAM,HOOD,CTR.
5810875
Unavailable
26
CABLE,HOOD RETAINER
7080521
$24.27
27
HOOD ASM,CLASSIC'94 (Incl. 23-25)
2631591-183
Unavailable
28
FOIL,HOOD,FRONT
5810874
Unavailable
30
SCREW(10)
7511930
$2.39
31
NUT FLEX LOC(10)
7541906
$3.19
31
NUT FLEX LOC(10)
7541906
$3.19
