FRONT SUSPENSION and SKI CLASSIC 0952865 (4929072907B001)

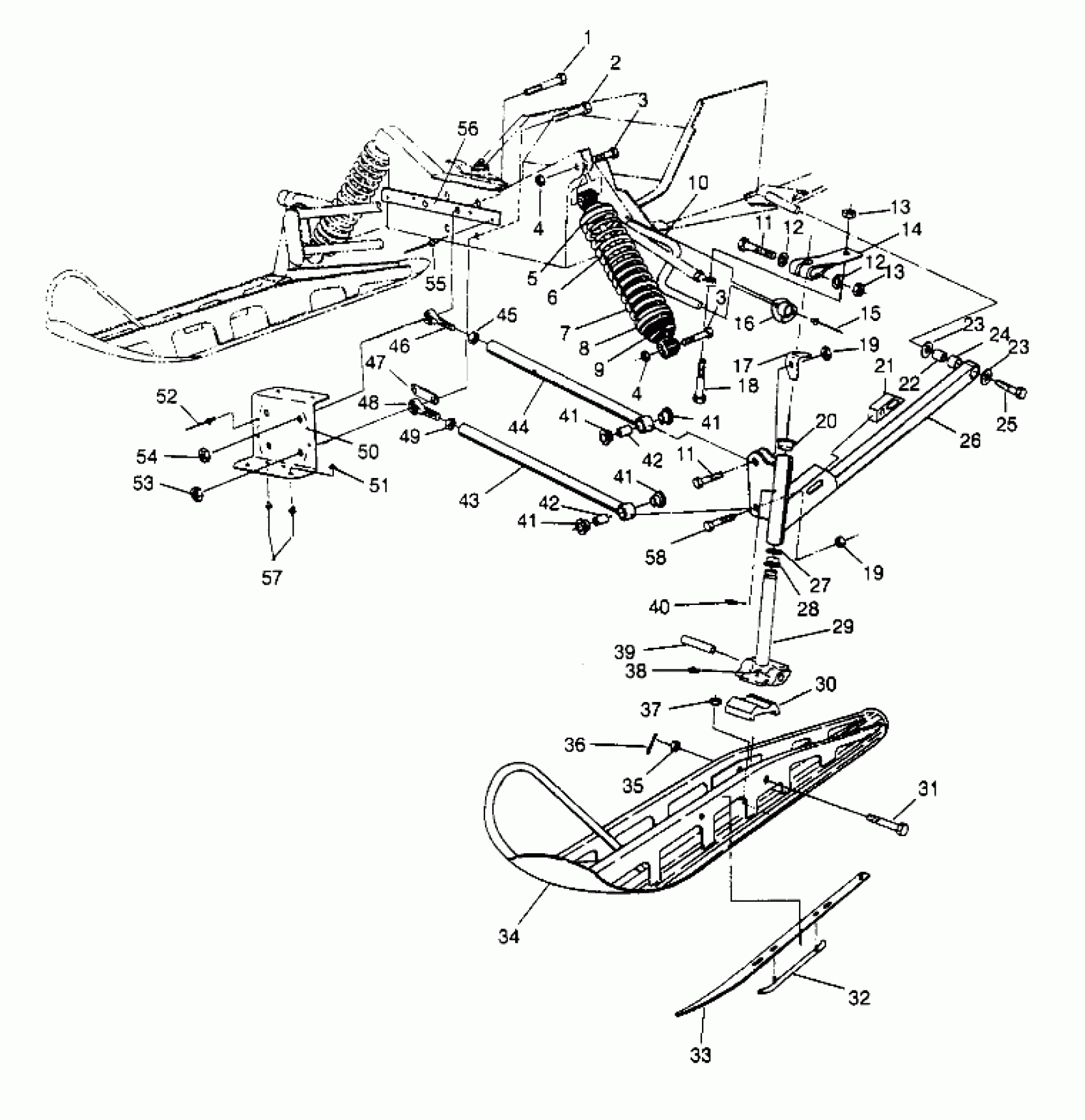

Polaris CLASSIC - 0952865 FRONT SUSPENSION and SKI CLASSIC 0952865 (4929072907B001) Diagram
#
1
BOLT(10)
7512582
$8.79
2
BOLT(10)
7512678
$19.99
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK.
7041334-067
Unavailable
7
SLEEVE,SPRING PROTECTOR
5431032
$31.99
8
CAM,ADJUSTING SPRING
5630334
$32.37
9
SHOCK,GAS/CAM,IFS
7041288
Unavailable
10
BAR,SWAY,9/16,BLK.
5224476-067
Unavailable
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
12
WASHER(10) Substituted by 7555832
7555851
Unavailable
12
WASHER(10) Substituted by 7555832
7555851
Unavailable
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
ARM,STEERING,BLK. Substituted by 1012423-067
5222873-067
Unavailable
15
RIVET(50)
7621433
$1.49
16
BUSHING-SWAYBAR
5410383
Unavailable
17
STOP,STRG,RH,BLK.
5222875-067
Unavailable
17
STOP,STRG,LH,BLK.
5222874-067
Unavailable
18
BOLT(10) Substituted by 7515528
7515529
Unavailable
19
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
19
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
20
BUSHING-FLANGE
3573909
$2.39
21
SLIDE-SWAYBAR
5410384
Unavailable
22
TUBE,TRAILING ARM
5010187
Unavailable
23
WASHER(10)
7555721
$1.49
23
WASHER(10)
7555721
$1.49
24
PIVOT-TRAILING ARM
5410382
Unavailable
25
BOLT(10)
7512557
$7.60
26
ARM,TRAIL,LH. (Incl. 22, 24)
1822187
Unavailable
26
ARM,TRAIL,RH. (Incl. 22, 24)
1822188
Unavailable
27
WASHER SPECIAL(10)
7556509
$1.59
28
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
29
SPINDLE, BLK.
6230073-067
Unavailable
30
STOP, RUBBER
5521276
Unavailable
31
BOLT(10)
7515462
$8.79
32
SKAG, BLK.
1820318-067
$49.99
33
Plate, Skag
1011829-067
$54.99
34
SKI WELD, BLK
1820332-067
Unavailable
35
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
36
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
37
NUT-5/16-18 NYLOK-Y
7542324
$1.49
38
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
39
BUSHING,PIVOT,(10)
5010158
$19.99
40
ZERK,FITTING,THREADED(10)
7080433
$1.49
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
43
ROD,RAD.LOW,WIDE,BLK.
1822216-067
Unavailable
44
ROD,RAD.UPPER,BLK.
1822215-067
Unavailable
45
NUT JAM(10)
7542520
$2.39
46
ROD END
7060163
Unavailable
47
STRAP,SPACER,BOTT.
5211427
Unavailable
48
ROD END Substituted by 7061027
7060162
$48.56
49
NUT-JAM(10)
7542711
$2.39
50
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
51
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
52
RIVET, BLIND(50)
7621467
$1.49
53
NUT FLEX,(10)
7542703
Unavailable
54
NUT, LOCK,(10)
7542503
$10.39
55
RIVET,INTERLOCK,B(50)
7661638
$1.49
56
BRACE,BULKHEAD
5240349-067
$6.63
57
RIVET,3/16X.402(50)
7621432
$1.49
58
BOLT(10) Substituted by 7515540
7515492
$4.62
