CHAINCASE ASSEMBLY CLASSIC 0952865 (4929072907B009)

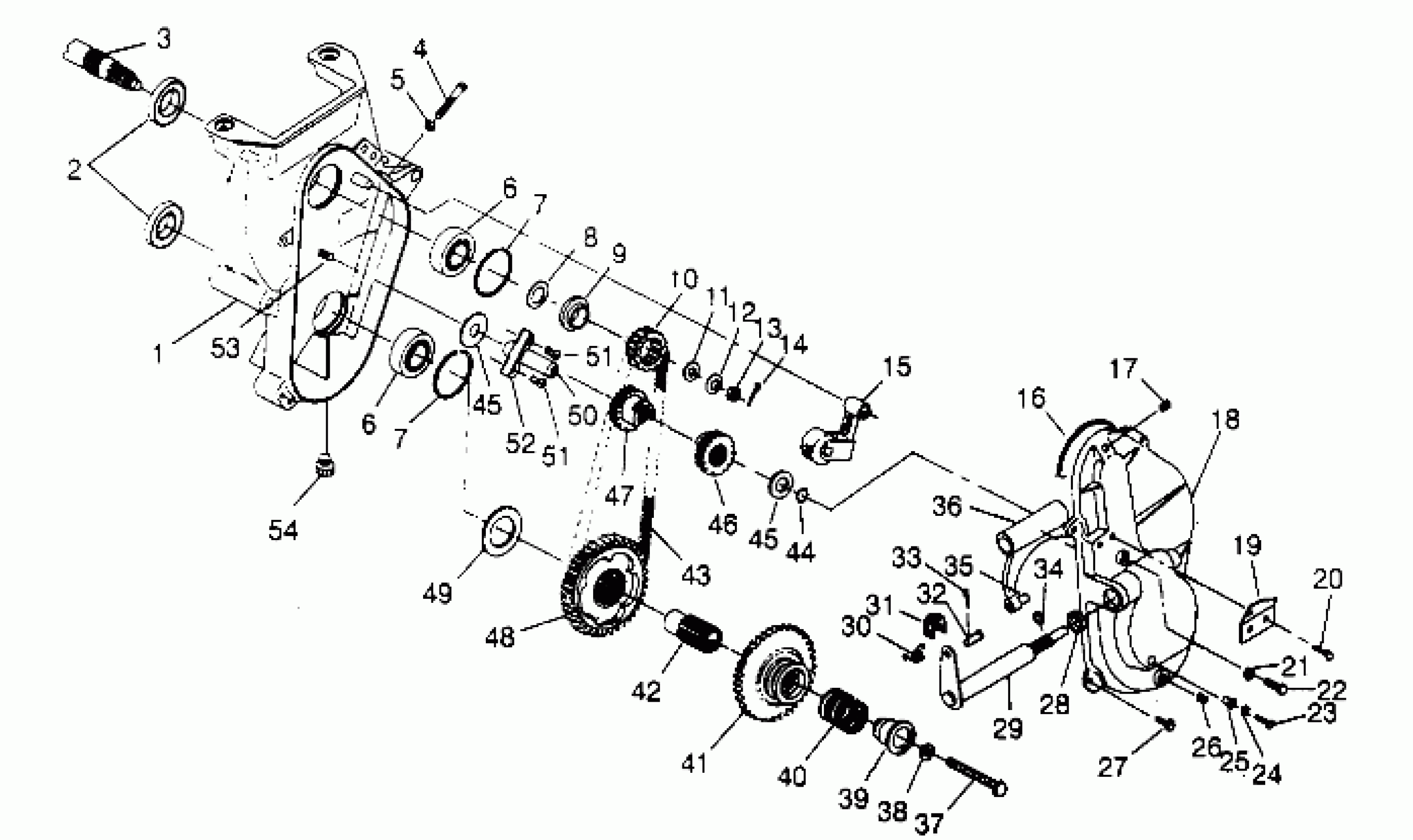

Polaris CLASSIC - 0952865 CHAINCASE ASSEMBLY CLASSIC 0952865 (4929072907B009) Diagram
#
1
CHAINCASE,TOP MT,VENTED MACH Substituted by 5131121
5131055
Unavailable
2
SEAL-OIL
3610030
$20.22
3
Asm., Jackshaft (See Pg. A24, Ref. 15)
-------
Unavailable
4
SCREW(10)
7515511
$3.99
5
NUT(10)
7542404
$1.59
6
BEARING,205,W/O SEAL
3514304
$15.99
6
BEARING,205,W/O SEAL
3514304
$15.99
7
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
8
WASHER,THRUST(10)
7555876
Unavailable
9
SPACER, SPROCKET
5010270
Unavailable
10
SPROCKET 21 T
3221035
Unavailable
11
WASHER, SLOTTED(10)
7571620
$7.19
12
BUSHING(10)
7555863
$2.39
13
NUT, SLOTTED(10)
7542810
$3.19
14
COTTER PIN(10)
7661401
$1.49
15
PIN,CHAIN TIGHTENER
7662210
Unavailable
15
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
15
BEARING
3553002
$11.99
15
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
15
WHEEL,C/C IDLER
5630123
Unavailable
15
WASHER THRUST(10)
7558702
$1.59
16
GASKET-CHAINCASE
5410277
$24.99
17
PLUG(10)
7051520
$8.79
18
COVER,CH.CASE,REV.MACH. Substituted by 5131172
5131114
Unavailable
19
BRKT,CABLE MOUNT
5222502-067
Unavailable
20
SCREW(10)
7512252
Unavailable
21
WASHER WROUGHT(10)
7558403
$4.79
22
SCREW(10)
7512497
Unavailable
23
SCREW(10)
7511909
$3.99
24
WASHER, FLAT(10)
7558201
$5.79
25
NUT-WELL(10)
7541918
Unavailable
26
PLUG, DRAIN
7052053
Unavailable
27
SCREW(10)
7512242
$2.39
28
Seal, Oil
3610029
$8.89
29
SHAFT, SHIFT
1341093-067
$29.37
30
SPRING,REV.CABLE TENSION
7042044
Unavailable
31
CLEVIS
5222606
Unavailable
32
PIN, CLEVIS(10)
7661830
$3.99
33
PIN-COTTER(10)
7661205
$1.49
34
RING, RETAINER(10)
7710415
$3.99
35
PIN, SHIFT FORK(10)
7661826
$5.65
36
KIT,SHIFT FORK/SHAFT (Incl. 29, 35)
2200363
Unavailable
36
Fork, Shift
5130805
Unavailable
37
SCREW, NYLOK(10)
7515348
$4.79
38
LOCK WASHER(10)
7552901
$1.49
39
RETAINER,DRIVE COUPLER
5130727
Unavailable
40
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
41
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
42
Coupler, Drive
5130720
Unavailable
43
CHAIN 66 PITCH
3224024
Unavailable
44
O RING
5410589
$4.99
45
WASHER,THRUST(10)
7555877
$3.99
45
WASHER,THRUST(10)
7555877
$3.99
46
GEAR,SPUR PINION
1341075
$149.99
47
GEAR ASM, PINION
1341076
Unavailable
48
SPROCKET, 39T
1341053
Unavailable
49
WASHER, REVERSE(10)
7555871
$5.59
50
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
51
SCREW(10)
7512019
$3.99
51
SCREW(10)
7512019
$3.99
52
BRKT,CHAIN RETENTION
5222298
Unavailable
53
BOLT(10)
7515477
$34.99
54
PLUG(10)
7052115
$5.65
