TUNNEL ASSEMBLY CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496001A)

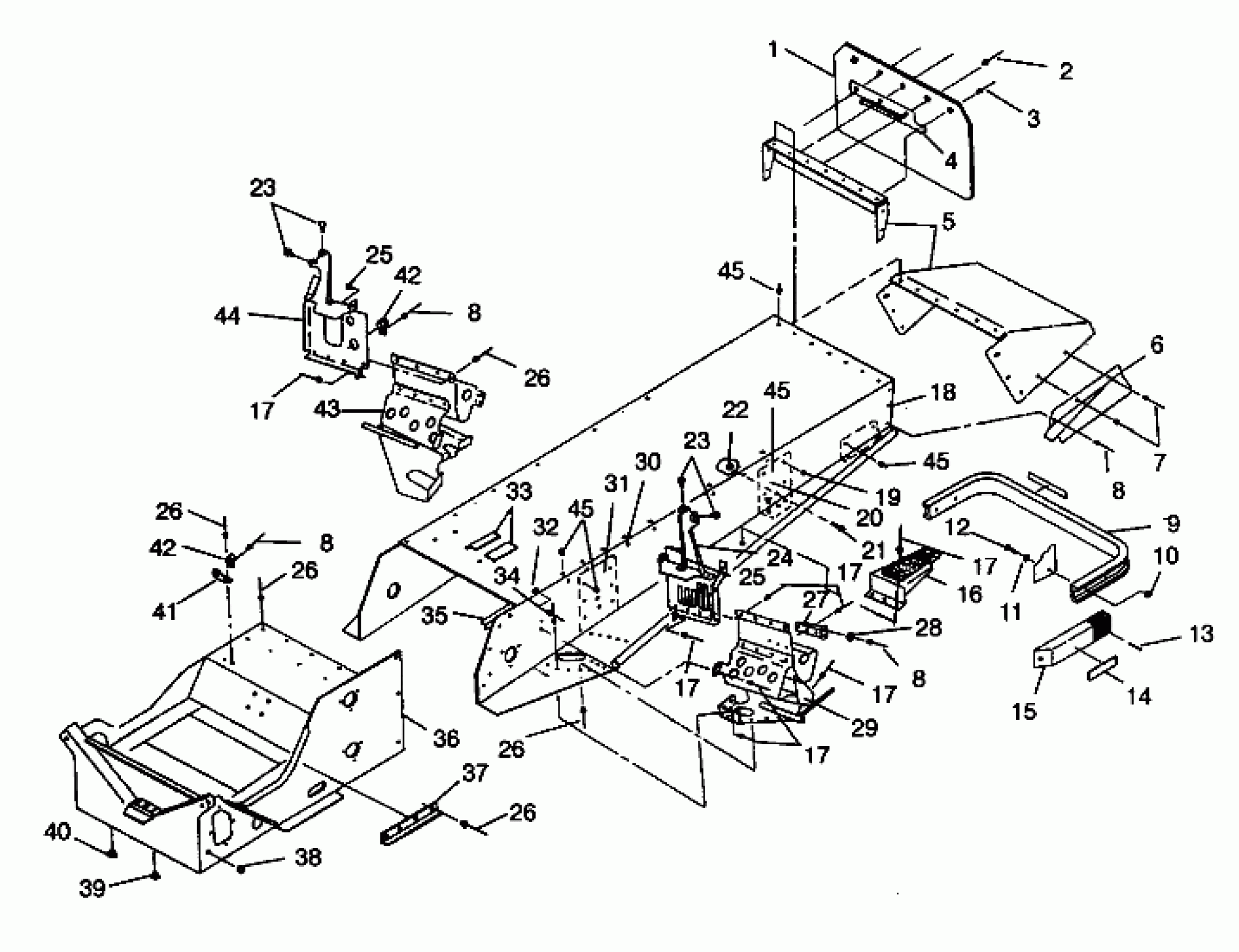

Polaris CLASSIC - 0942865 TUNNEL ASSEMBLY CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496001A) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
2
RIVET(50)
7661641
Unavailable
3
POP RIVET(50) (Classic)
7621418
$1.49
4
RETAINER, FLAP Substituted by 5241874-067
5222659-067
Unavailable
5
PANEL,TUNNEL,BACK Substituted by 5220478-067 (Classic)
5220478
Unavailable
5
CLOSE-OFF ASM,REAR,BLK. Substituted by 1012232-067 (Touring) (Incl. Rivets)
1011694-067
Unavailable
6
SKIRT,LH,SNOW,BLK. Substituted by 5431627-070 (Touring Only)
5431627
$26.98
6
SKIRT,RH,SNOW,BLK. Substituted by 5431645-070 (Touring Only)
5431645
$31.11
7
RIVET(50) (Touring Only)
7621472
$1.49
8
RIVET,3/16X.402(50) (Touring Only)
7621432
$1.49
8
RIVET,3/16X.402(50) (Touring Only)
7621432
$1.49
8
RIVET,3/16X.402(50) (Touring Only)
7621432
$1.49
8
RIVET,3/16X.402(50) (Touring Only)
7621432
$1.49
9
BUMPER,REAR,BLK. (Classic)
5224334-067
Unavailable
9
BUMPER ASM, REAR (Touring)
2670122
Unavailable
10
NUT-LOCK(10)
7542122
$1.49
11
WASHER(10)
7558301
$1.49
12
BOLT(10)
7512240
$3.99
13
SCREW(10)
7511863
$1.99
14
REFLECTOR RED
2670070
$9.91
15
CAP, BUMPER, BLK.
5430930-070
Unavailable
16
FOOTREST,LH REAR
5220893
Unavailable
16
FOOTREST,RH REAR
5220894
$32.15
16
PAD,LH FOOT SAFETY
5830007
$7.89
16
PAD,RH FOOT SAFETY
5830008
$4.92
17
RIVET,INTERLOCK,B(50) (Classic)
7661638
$1.49
17
RIVET,INTERLOCK,B(50) (Classic)
7661638
$1.49
17
RIVET,INTERLOCK,B(50) (Classic)
7661638
$1.49
17
RIVET,INTERLOCK,B(50) (Classic)
7661638
$1.49
17
RIVET,INTERLOCK,B(50) (Classic)
7661638
$1.49
17
RIVET,INTERLOCK,B(50) (Classic)
7661638
$1.49
18
TUNNEL ASM,BLK(94CLASSIC) (CL.)
1011933
$405.94
18
TUNNEL,2-UP,BLK,SKS (Tour.)
1011957
Unavailable
19
RIVET,(50)
7661825
$1.49
20
BRKT,RH.REAR SUSP. (Tour.)
1011906-067
Unavailable
20
BRKT,LH.REAR SUSP (Tour.)
1011905-067
Unavailable
20
BRKT,RH,R.SUSP. (CL.)
1011858-067
Unavailable
20
BRKT,LH,R.SUSP (CL.)
1011857-067
Unavailable
21
BOLT(10) Substituted by 7515494 (Touring Only)
7515482
Unavailable
22
NUT(10) (Touring Only)
7542423
$3.99
23
BUMPER,HOOD
5410768
$2.95
23
BUMPER,HOOD
5410768
$2.95
24
MT,CONSOLE,LH
1011951-067
$35.51
25
SCREW(10)
7512057
$2.38
25
SCREW(10)
7512057
$2.38
26
RIVET-3/16-.090-.290
7661637
$1.49
26
RIVET-3/16-.090-.290
7661637
$1.49
26
RIVET-3/16-.090-.290
7661637
$1.49
26
RIVET-3/16-.090-.290
7661637
$1.49
26
RIVET-3/16-.090-.290
7661637
$1.49
27
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
28
STOP, BUMPER
5410826
Unavailable
29
FOOTREST ASM,LH,BLK. Substituted by 1012544
1011934
Unavailable
30
NUT,SERT(10)
7541938
Unavailable
31
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
32
SNAP-MALE(10)
7080227
Unavailable
33
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
34
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
35
BRACE,REINF.TUNNEL
5240242
Unavailable
36
BULKHEAD,(440SKS) (Classic)
1011923
$396.83
36
BULKHEAD, EFI (Touring)
1011948-067
$524.99
37
GUARD,ADAPTER GUIDE
5222857
$12.94
38
PLUG, HOLE(10)
7080416
$5.65
39
PLUG-HOLE (Classic)
7080398
$4.84
40
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
41
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
42
GUIDE, RECOIL
5431385
$10.51
42
GUIDE, RECOIL
5431385
$10.51
43
FOOTREST ASM,RH,BLK. Substituted by 1012545
1011935
Unavailable
44
MT,CONSOLE,RH
1011952-067
$339.99
45
RIVET ,(50)
7661829
Unavailable
45
RIVET ,(50)
7661829
Unavailable
45
RIVET ,(50)
7661829
Unavailable
45
RIVET ,(50)
7661829
Unavailable
