SEAT and GAS TANK ASSEMBLY CLASSIC TOURING 0942875 (4924962496005A)

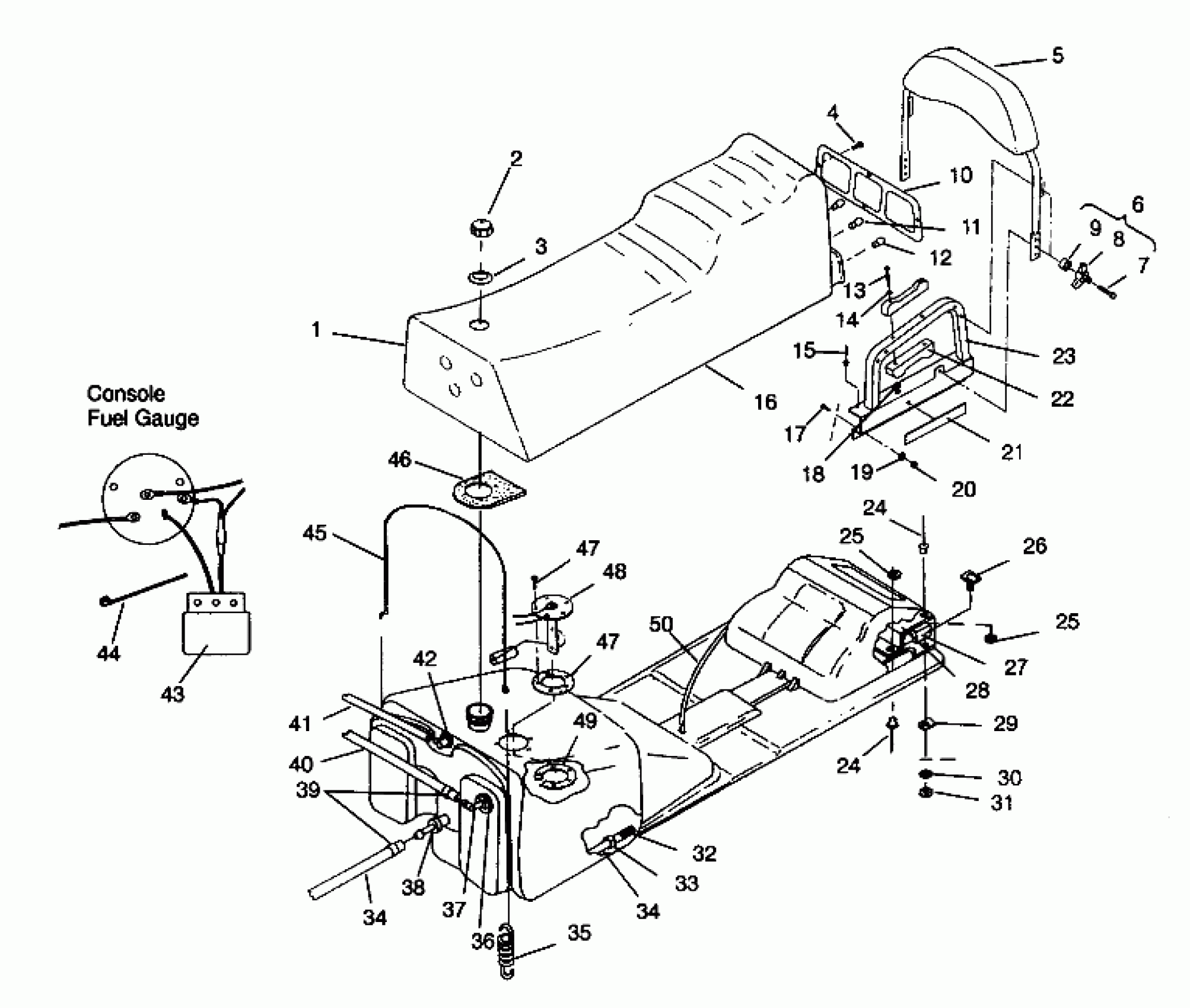

Polaris CLASSIC - 0942865 SEAT and GAS TANK ASSEMBLY CLASSIC TOURING 0942875 (4924962496005A) Diagram
#
1
SEAT/TANK CUSH,(2-UP) (Incl. 16)
2681659
Unavailable
2
CAP,FUELTANK,W/GASKET
2511226
Unavailable
3
GROMMET,FUELTANK
5410815
Unavailable
4
SCREW(10)
7511840
Unavailable
5
BACKREST ASM.
2681356
$284.75
5
COVER,BACKREST(CLASSIC)
2681574
Unavailable
6
KNOB ASM,BACKREST (Incl. 7-9)
2670130
Unavailable
7
SCREW(10)
7515352
Unavailable
8
Knob, Backrest
5630386-067
$20.22
9
SPACER
5431285
Unavailable
10
LENS,TAILLIGHT
5430423
Unavailable
11
Bulb, Brakelight
4030045
Unavailable
12
BULB,TAILLIGHT(10)
4030024
$4.84
13
SCREW(10)
7510504
$6.76
14
WASHER(10)
7555783
$3.99
15
RIVET Substituted by 7661638
7661625
$1.19
16
COVER,SEAT,(2-UP)
2681660
Unavailable
17
BOLT(10) Substituted by 7512325
7515363
Unavailable
18
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
19
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
20
NUT, NYLOK(10)
7542327
$4.79
21
REFLECTOR RED
2670070
$9.91
22
GRIP, HAND Substituted by 5433383
5431015
$19.68
23
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
23
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
24
RIVET, BLIND(50)
7621467
$1.49
24
RIVET, BLIND(50)
7621467
$1.49
25
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
25
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
26
MOUNT, REAR SEAT
1011855
Unavailable
27
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
28
COVER,T/L PROTECTOR
5431436
$21.43
29
SPEED NUT(10)
7670021
$6.99
30
WASHER(10)
7558301
$1.49
31
NUT-LOCK(10)
7542122
$1.49
32
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
33
RING, COMPRESSION(10)
7080402
$1.60
34
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
34
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
35
SPRING-EXHAUST(10)
7042029
$4.84
36
GROMMET-TANK FITTING(10)
7052028
$6.39
37
FITTING,TANK OUTLET(5/16)
7052059
Unavailable
38
FITTING - OUTLET(10)
7052023
$24.99
39
CLAMP, HOSE
7080490
Unavailable
40
FUEL LINE, 5 FT.
8450045-153
Unavailable
41
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
42
FITTING,(10)
7052077
$6.39
43
REGULATOR, VOLTAGE
4060092
Unavailable
44
STRAP, BLK
7080272
Unavailable
45
CABLE,TANK RETENTION
7080473
Unavailable
46
FOAM, FILLER
5810201
Unavailable
47
HDWE.PKG,SEND.UNIT
2410012
Unavailable
47
HDWE.PKG,SEND.UNIT
2410012
Unavailable
48
SEND.UNIT,W/HDWE.PKG.
2410015
Unavailable
49
MTG.FLANGE,FUELTANK Substituted by 5244067
5211308
Unavailable
50
HARNESS,TAILLIGHT
2460398
Unavailable
