PISTON and CRANKSHAFT CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496037A)

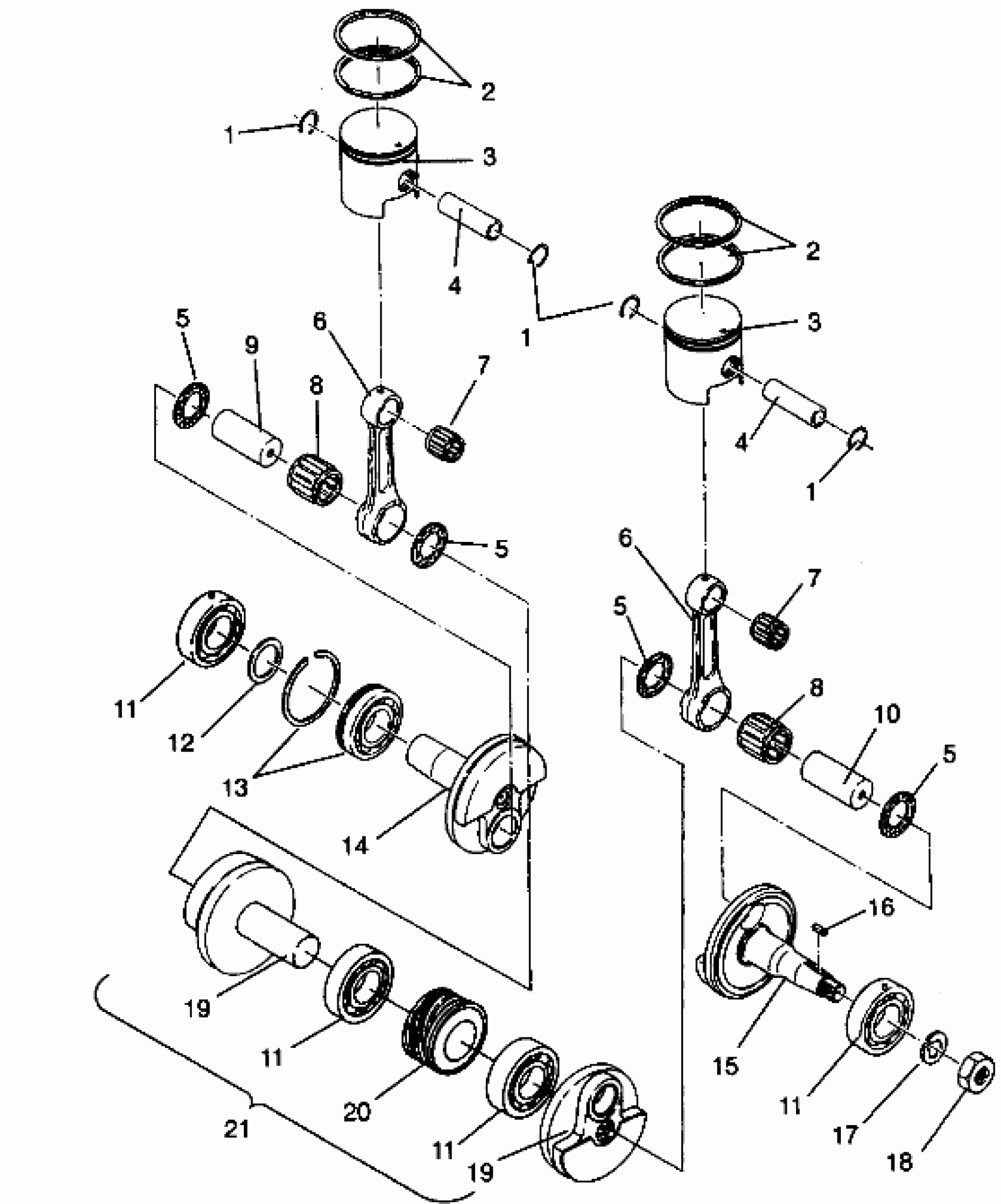

Polaris CLASSIC - 0942865 PISTON and CRANKSHAFT CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496037A) Diagram
#
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING,PISTON,STD. (Standard)
3084342
$47.60
2
RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084343
Unavailable
2
RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)
3084344
$66.65
2
RING,PISTON,STD. (Standard)
3084342
$47.60
2
RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084343
Unavailable
2
RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)
3084344
$66.65
3
PISTON,(.010 O/S) (0.25m/.010" O/S)
3084340
Unavailable
3
PISTON, (.020 O/S) (0.50m/.020" O/S)
3084341
Unavailable
3
PISTON, STD. (Standard)
3084339
Unavailable
3
PISTON,(.010 O/S) (0.25m/.010" O/S)
3084340
Unavailable
3
PISTON, (.020 O/S) (0.50m/.020" O/S)
3084341
Unavailable
3
PISTON, STD. (Standard)
3084339
Unavailable
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
ROD-CONNECTING
3083252
$164.99
6
ROD-CONNECTING
3083252
$164.99
6
ROD-CONNECTING
3083252
$164.99
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
Pin, Crank, 2
3083456
Unavailable
10
PIN,CRANK
3083233
$36.41
11
BEARING, BALL
3084586
$44.99
11
BEARING, BALL
3084586
$44.99
11
BEARING, BALL
3084586
$44.99
11
BEARING, BALL
3084586
$44.99
12
SPACER,CRANKSHAFT
3080447
$1.99
13
BALL BEARING, C-4
3083714
Unavailable
14
CRANKSHAFT Substituted by 3085179 (PTO Side)
3084357
Unavailable
15
CRANKSHAFT #1 (Mag Side)
3083362
Unavailable
16
KEY
3081447
Unavailable
17
WASHER-SPRING(10)
3083094
$3.17
18
NUT
3083093
$19.99
19
CRANKSHAFT 2 (Incl. 9,10)
3083713
$583.49
19
CRANKSHAFT 2 (Incl. 9,10)
3083713
$583.49
20
GEAR,DRIVE,OIL PUMP
3083782
$102.13
21
CRANKSHAFT (Incl. 5,6,8-15,19)
3084612
$999.99
