NOSEPAN ASSEMBLY CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496008A)

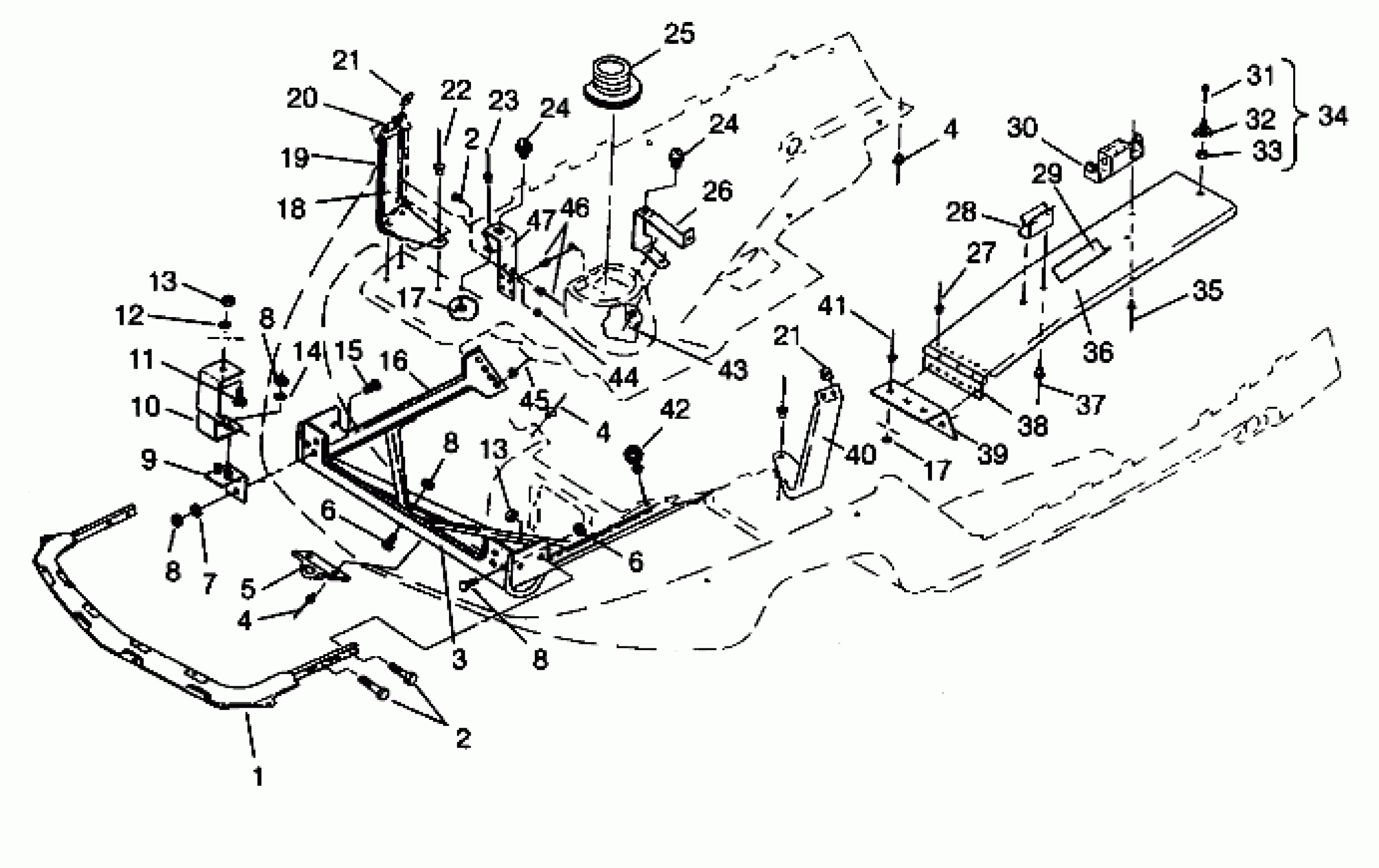

Polaris CLASSIC - 0942865 NOSEPAN ASSEMBLY CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496008A) Diagram
#
1
BUMPER,FRONT
2670146-067
Unavailable
2
SCREW(10)
7512307
$3.99
2
SCREW(10)
7512307
$3.99
3
BRACE,HD.SUPP.LOW,BLK.
5222889-067
Unavailable
4
RIVET, BLIND(50)
7621467
$1.49
4
RIVET, BLIND(50)
7621467
$1.49
4
RIVET, BLIND(50)
7621467
$1.49
5
SUPPORT,BUMPER PAN
5410832
Unavailable
6
BOLT(10)
7512298
$3.99
6
BOLT(10)
7512298
$3.99
7
WASHER(10)
7558301
$1.49
8
NUT, LOCK(10)
7542103
$5.59
8
NUT, LOCK(10)
7542103
$5.59
8
NUT, LOCK(10)
7542103
$5.59
8
NUT, LOCK(10)
7542103
$5.59
9
MOUNT,HINGE,BLK.
1011982-067
$45.99
10
HINGE ASM,HOOD,BLK.
2635013-067
Unavailable
11
SCREW(10)
7512310
$2.39
12
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
13
NUT FLEX-LOC(10)
7542303
$6.39
13
NUT FLEX-LOC(10)
7542303
$6.39
14
WASHER,WROUGHT(10)
7558302
$1.59
15
BOLT(10)
7512193
$2.39
16
SUPPORT,LH,BUMPER,BLK.
1011968-067
Unavailable
16
SUPPORT,RH,BUMPER,BLK.
1011969-067
Unavailable
17
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
17
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
18
TAPE,FOIL,215 CM.(85 IN.)
8360043-215
Unavailable
19
BRKT,RH SIDEPANEL,BLK. Substituted by 5240770
5222898-067
Unavailable
20
FOIL, 3MIL
5810963
Unavailable
21
NUT,RETAINER(10)
7542138
Unavailable
21
NUT,RETAINER(10)
7542138
Unavailable
22
RIVET(50)
7621485
$1.49
23
RIVET(50)
7621433
$1.49
24
DAMPNER, VIB.
5410467
$8.79
24
DAMPNER, VIB.
5410467
$8.79
25
Boot, Exhaust
5410502
$24.27
26
BRKT,R.MUFFLER SUPPORT
5240715-067
Unavailable
27
RIVET, POP(50)
7621330
$1.49
28
CLIP,BELT RETAINER
5222769
$8.79
29
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
30
CADDY,SPARKPLUG
5431761
$11.59
31
SCREW(10)
7515352
Unavailable
32
Knob, Backrest
5630386-067
$20.22
33
SPACER
5431285
Unavailable
34
KNOB ASM,BACKREST (Incl. 31-33)
2670130
Unavailable
35
RIVET(50)
7621337
$1.49
36
GUARD,CLUTCH
5222903
Unavailable
37
RIVET(50)
7621429
$1.49
38
HINGE
5210728
Unavailable
39
MT,FR.CLUTCHGUARD
5222904
Unavailable
40
BRKT,LH SIDEPANEL,BLK.
5222897-067
Unavailable
41
POP RIVET(50)
7621402
$1.49
42
CLIP, PLASTIC(10)
4020139
$4.79
43
RIVET(50)
7621472
$1.49
44
NUT LOCK(10)
7542321
$1.49
45
RIVET,3/16X.402(50)
7621432
$1.49
46
RIVET-3/16-.090-.290
7661637
$1.49
47
SUPPORT,FR.MUFFLER,BLK. Substituted by 5240720-067
5222923-067
Unavailable
