HOOD ASSEMBLY CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496009A)

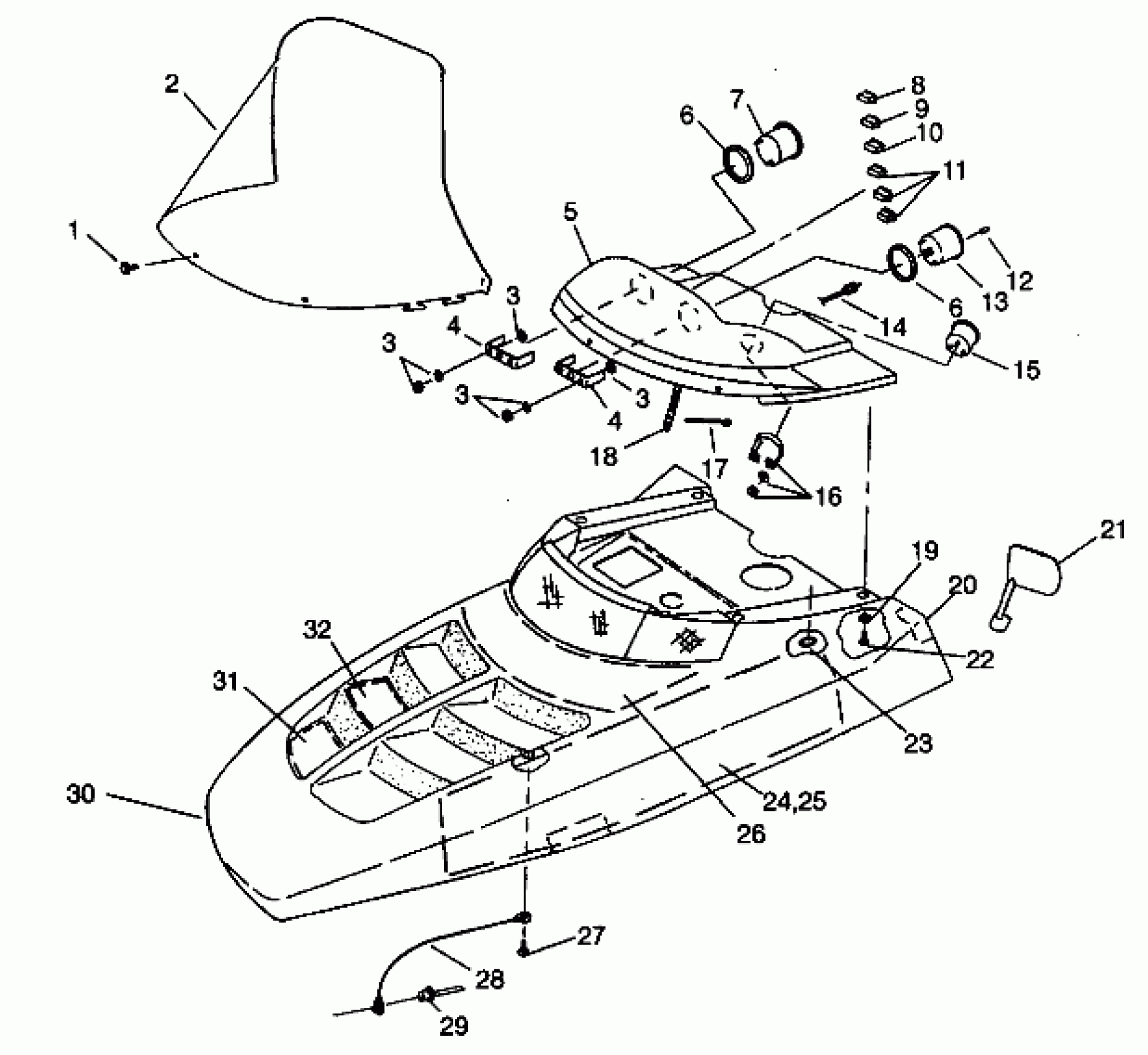

Polaris CLASSIC - 0942865 HOOD ASSEMBLY CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496009A) Diagram
#
1
RIVET,PLASTI-LOC.(50)
7621509
$1.49
2
WNDSHLD,HI CLEAR(TRL.DLX/XLT TOUR) (Classic)
5431465
$159.99
2
WNDSHLD,XTRA HI CLEAR Substituted by 2871268 (Touring)
5431590
Unavailable
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
BRKT,SPEEDO/TACH
3280153
Unavailable
4
BRKT,SPEEDO/TACH
3280153
Unavailable
5
HSG.ASM,INST. (Incl. Warning Decals)
2652129
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
7
TACHOMETER,BACKLIT(2P) (Incl. 3,4,6,12)
3280149
Unavailable
8
INDICATOR'TEMP'WARN. (Classic)
4040011
$32.37
8
INDICATOR'TEMP/BATT'.WARN. (Touring)
4040026
$13.19
9
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
10
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
11
PLUG,INDIC.HOLE
5430967
$5.65
12
KNOB,TRIP ODOMETER
3280103
$3.83
13
SPEEDOMETER,BACKLIT (Incl. 3,4,6,12)
3280148
Unavailable
14
CABLE,SPEEDO.
3280094
$60.70
15
INDICATOR,FUEL LEVEL
3280118
$53.59
16
HDWE.PKG,FUEL INDIC.
3280119
$24.79
17
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
18
HARNESS,H/L,(CLASSIC) (Touring)
2460434
$66.05
18
HARNESS,HEADLIGHT (Classic)
2460440
Unavailable
19
WASHER(10)
7555783
$3.99
20
FOIL,TAPE,1.5X6
5810949
$3.19
21
PR,MIRRORS,R.VIEW
2870938
Unavailable
22
SCREW(10)
7512009
Unavailable
23
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
24
FOAM,LH,HOOD
5810876
Unavailable
25
FOAM,RH,HOOD
5810877
Unavailable
25
FOIL,RH,HOOD
5810905
Unavailable
26
FOAM,HOOD,CTR.
5810875
Unavailable
27
SCREW(10)
7512026
$1.49
28
CABLE,HOOD RETAINER
7080521
$24.27
29
POP RIVET(50)
7621402
$1.49
30
HOOD ASM,CLASSIC'94 (Incl. 24-26)
2631591-183
Unavailable
31
FOIL,HOOD,FRONT
5810874
Unavailable
32
FOIL,HOOD,CTR.
5810873
Unavailable
