DRIVE TRAIN ASSEMBLY CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496021A)

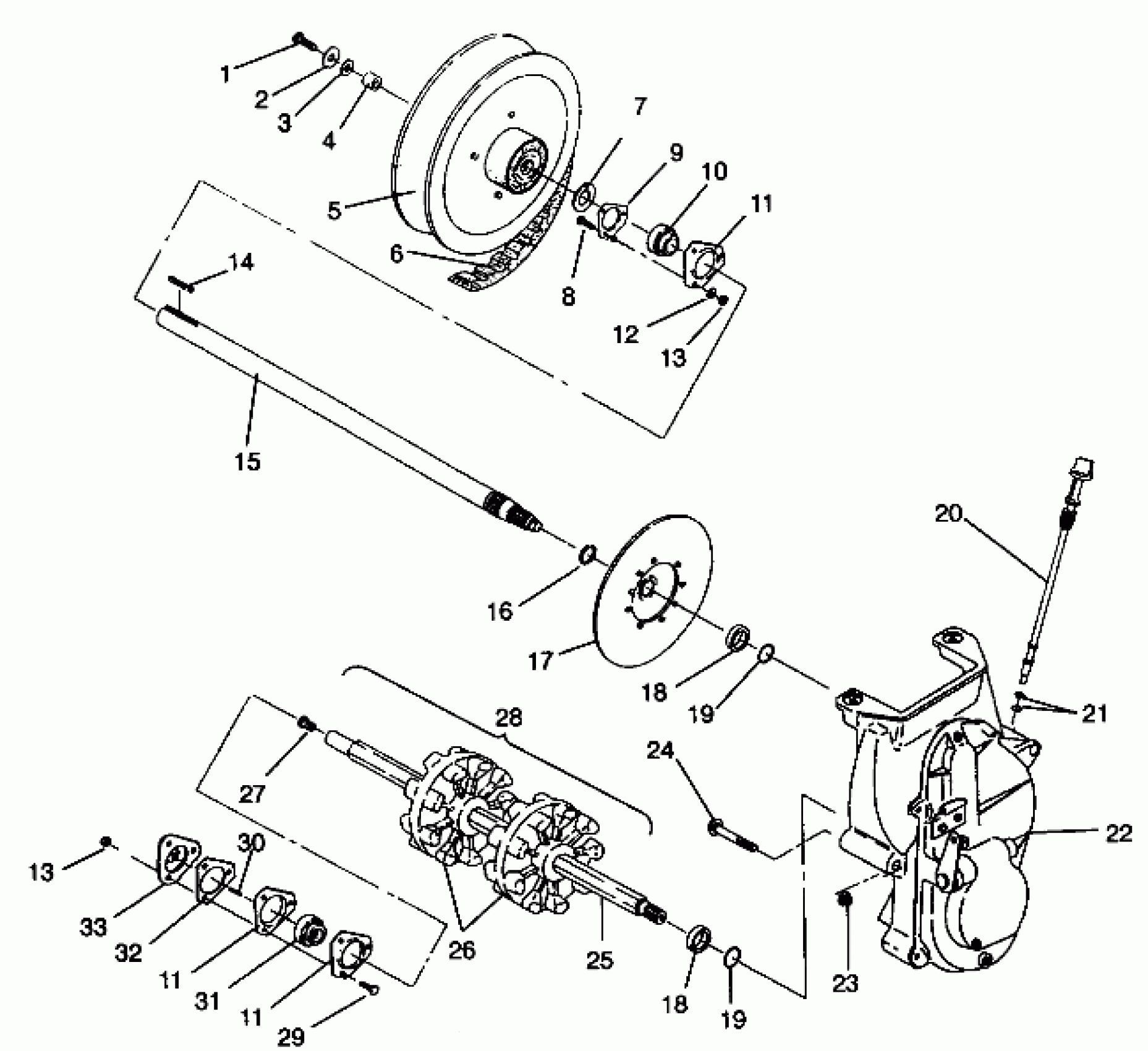

Polaris CLASSIC - 0942865 DRIVE TRAIN ASSEMBLY CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496021A) Diagram
#
Description
Price
1
BOLT(10)
7515301
Unavailable
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
Asm., Driven Clutch (See Pg. A33, Ref. 15)
-------
Unavailable
6
BELT DRIVE(5)
3211042
$109.99
7
WASHER SPECIAL(10)
7556509
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE
5240252
Unavailable
10
BEARING,JACKSHAFT
3514519
$64.99
11
FLANGETTE
5222751
$16.44
11
FLANGETTE
5222751
$16.44
11
FLANGETTE
5222751
$16.44
12
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
KEY-SQUARE(10)
7721204
$3.19
15
Asm., Jackshaft (Incl. 16) (See Pg. A23, Ref. 3)
-------
Unavailable
16
RING, RETAINING(10)
7710422
$3.99
17
DISC ASM, BRAKE
1910086
Unavailable
18
SLEEVE, SEAL
5020588
$23.99
18
SLEEVE, SEAL
5020588
$23.99
19
O RING,(10)
5410613
$1.99
19
O RING,(10)
5410613
$1.99
20
DIPSTICK Substituted by 1332143
5431419
Unavailable
21
O-RING
5410675
$1.60
22
Asm., Cover Chaincase (See Pg. A23, Ref. 18)
-------
Unavailable
23
NUT(10)
7542423
$3.99
24
BOLT(10)
7515428
$4.79
25
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
26
SPROCKET, 9T
5430571
Unavailable
27
BUSHING METAL SPEEDO
3280019
$11.99
28
DRIVESHAFT ASM. Substituted by 1590246 (Incl. 25-27)
1590230
$285.70
29
BOLT(10)
7512331
$3.99
30
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
31
BEARING,DRIVESHAFT
3514518
$64.99
32
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
33
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
