CONTROLS CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496017A)

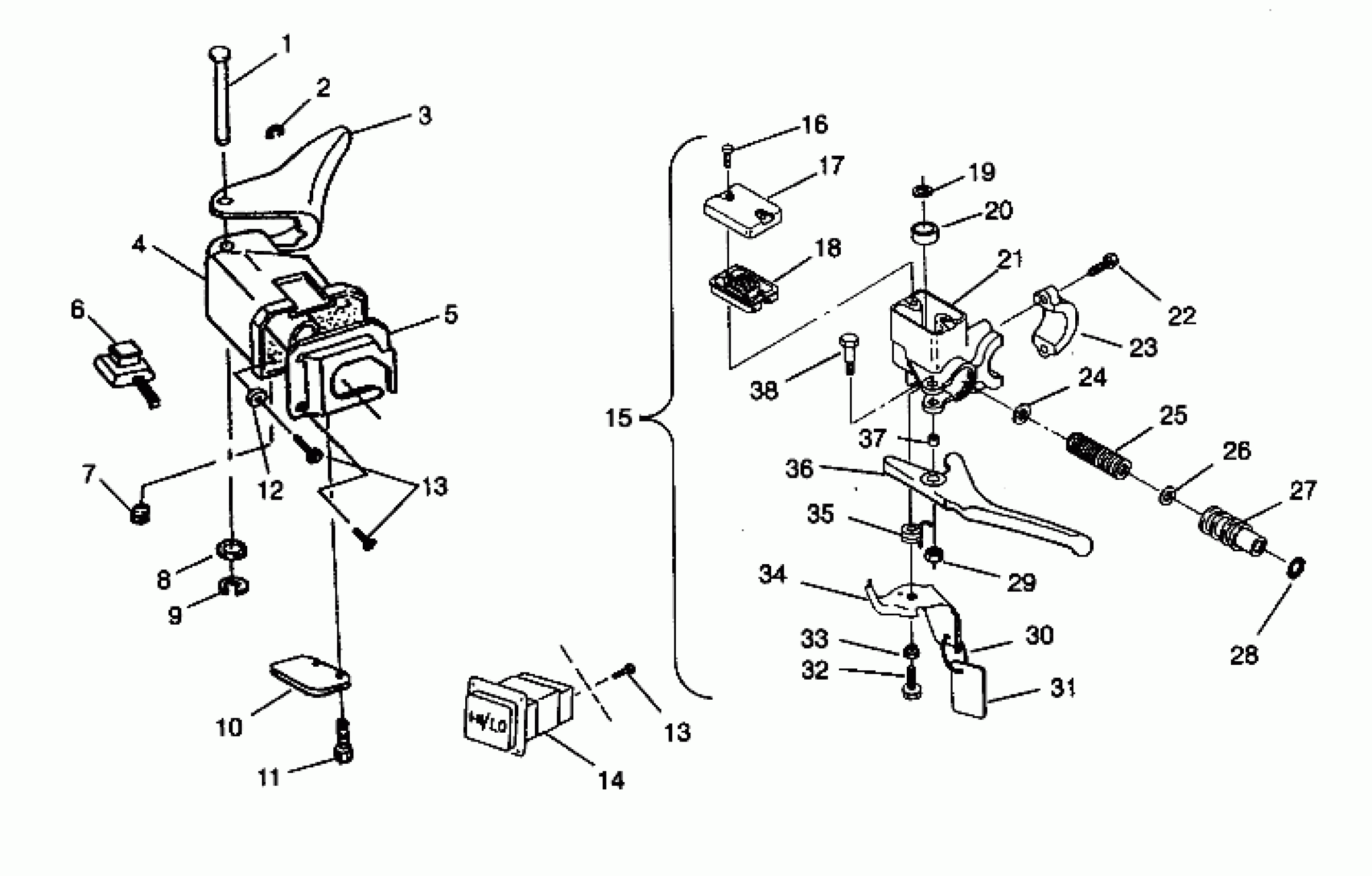

Polaris CLASSIC - 0942865 CONTROLS CLASSIC 0942865 and CLASSIC TOURING 0942875 (4924962496017A) Diagram
#
1
PIN-RETAINING .186X1.780-AL
7661624
$12.79
2
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
3
LEVER-THROTTLE (Touring)
5430652
Unavailable
3
LEVER ASM,HTR.STD 34MM (Touring)
2010142
Unavailable
3
LEVER-THROTTLE (Classic)
5430638
Unavailable
3
LEVER ASM,W/WARMER (Classic)
2010094
Unavailable
4
BLOCK,THROTTLE/BRAKE
5431592
$49.99
5
BLOCK-ADAPTER
5430604
$13.75
6
SWITCH,AUX.SHUT-OFF
4110106
$94.99
7
SCREW(10)
7512465
$3.99
8
WASHER(10)
7555730
$3.99
9
RING-RETAINING EXTERNAL
7710401
$3.99
10
PLATE,BLK,WIREHOLDER Substituted by 5432261
5240256-067
$24.27
11
SCREW(10)
7511858
$3.99
12
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
13
SCREW-SEMS(10)
7511848
$3.99
13
SCREW-SEMS(10)
7511848
$3.99
14
SWITCH, DIMMER
4110136
Unavailable
15
MASTER CYL.ASM,(SNOW) (Incl. 16-29, 36-38)
2050056
Unavailable
16
SCREW,W/WASHER(10)
7512050
$3.99
17
COVER,MASTER CYL.
5630338
Unavailable
18
GASKET,MASTER CYL.
5410527
$8.99
19
WASHER, BAFFLE(10)
1930662
Unavailable
20
BAFFLE,MASTER CYL.
1930673
Unavailable
21
HSG.,MASTER CYL. Substituted by 2050056
5130912
Unavailable
22
BOLT,SOCKET HEAD(10)
7512290
$4.79
23
CLAMP, MASTER CYL.
5630342
Unavailable
24
WASHER(10)
7555708
$3.99
25
SPRING,COMPRESSION,(10)
7041203
$33.87
26
U PACKING SEAL
5410164
Unavailable
27
PISTON, MASTER CYL.
5020520
Unavailable
28
O RING
5410163
$1.60
29
NUT(10)
7542124
Unavailable
30
STRAP,PARK.BRAKE TAG
7080447
Unavailable
31
TAG,PARK.BRAKE
5431389
Unavailable
32
SCREW(10)
7511866
$4.79
33
BUSHING,PK.BRAKE LEVER
5020545
Unavailable
34
LEVER,PARK.BRAKE
5222669
Unavailable
35
SPRING,PK.BRAKE
7041229
$32.37
36
LEVER, BRAKE
5630409
Unavailable
37
BUSHING,BRAKE LEVER
5332931
Unavailable
38
BOLT,BRAKE LEVER(10)
7512287
Unavailable
