CARBURETOR ASSEMBLY CLASSIC 0942865 (4924962496044A)

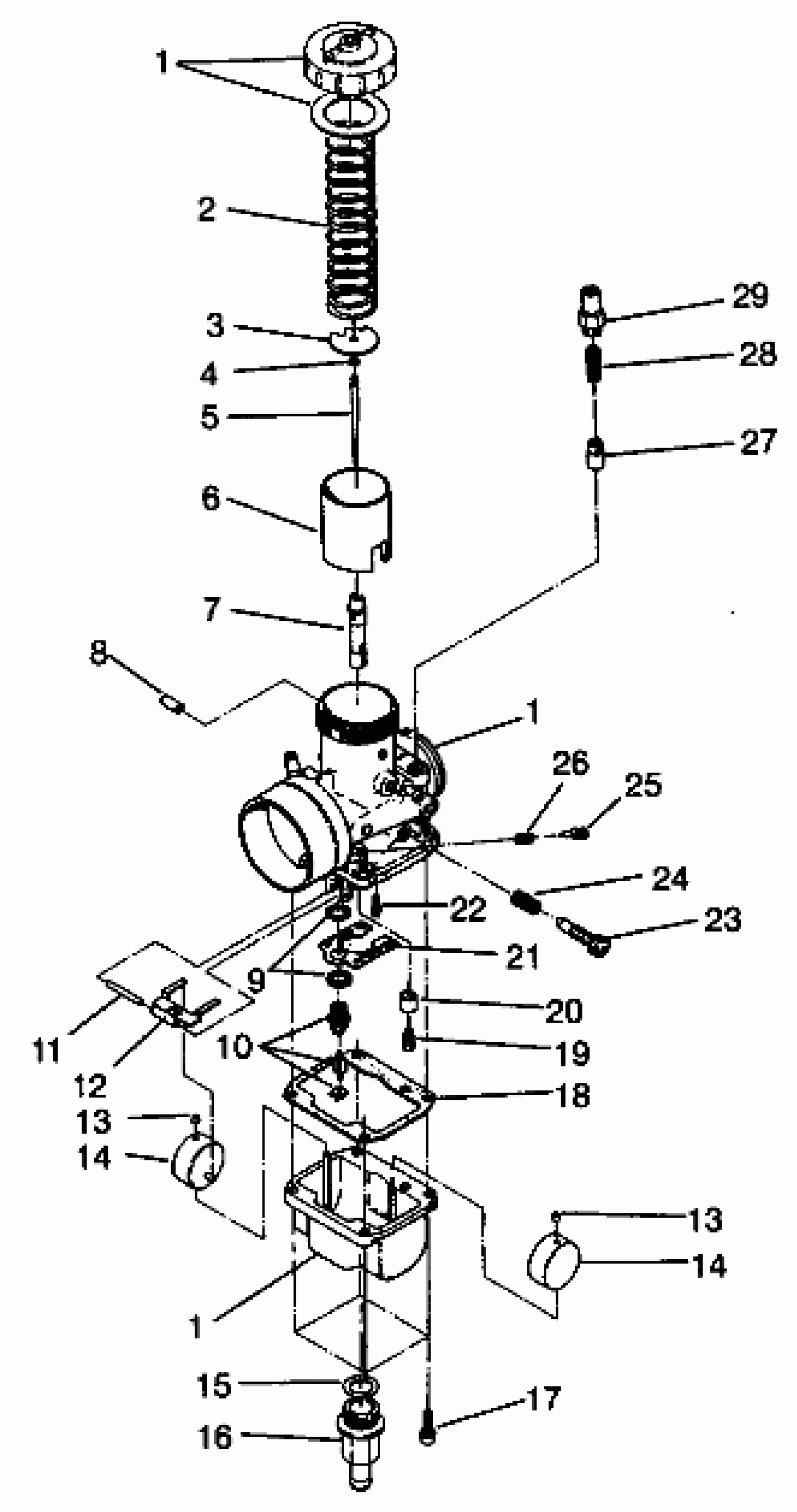

Polaris CLASSIC - 0942865 CARBURETOR ASSEMBLY CLASSIC 0942865 (4924962496044A) Diagram
#
Description
Price
1
TOP (Incl. 1-29)
3130061
Unavailable
1
TOP (Incl. 1-29)
3130061
Unavailable
1
TOP (Incl. 1-29)
3130061
Unavailable
2
SPRING,THROTTLE
3130444
Unavailable
3
PLATE, THROTTLE
3130054
$6.46
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
NEEDLE,JET,(6F9-3) (6F9-3)
3130378
Unavailable
6
VALVE, THROTTLE,2.5 (2.5)
3130454
Unavailable
7
JET,NEEDLE,P-8 (P-8)
3130382
Unavailable
8
CAP,VACUUM FIT
3130379
$6.63
9
WASHER(10)
3130047
$4.84
10
VALVE ASM,NEEDLE Substituted by 3130643 (1.5)
3130046
$56.65
11
PIN, FLOAT Substituted by 3130361
3130235
$8.89
12
ARM,FLOAT
3130048
Unavailable
13
CAP,(10)
3130237
$4.03
13
CAP,(10)
3130237
$4.03
14
FLOAT ASM
3130021
$40.46
14
FLOAT ASM
3130021
$40.46
15
O RING
3130239
Unavailable
16
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
17
SCREW
3130056
$3.19
18
GASKET,FLOAT CHAMBER
3130236
$12.13
19
JET,MAIN,#300 Substituted by 3130133 (#300)
3130482
$7.27
20
RING,CARB
3130232
Unavailable
21
PLATE
3130243
Unavailable
22
JET,PILOT,#40(10) (#40)
3130067
$10.99
23
SCREW,THROTTLE STOP
3130009
$19.99
24
SPRING,THROTTLE ADJ.
3130010
$8.89
25
SCREW,AIR
3130011
$19.99
26
SPRING,AIR ADJUST
3130012
$8.89
27
PLUNGER ASM, STARTER
3130328
$32.37
28
SPRING,PLUNGER
3130006
$8.89
29
HOLDER,GUIDE
3130199
$28.32
