- CLASSIC - 0930864
TUNNEL ASSEMBLY CLASSIC TOURING / 0930865 (4922952295001A)

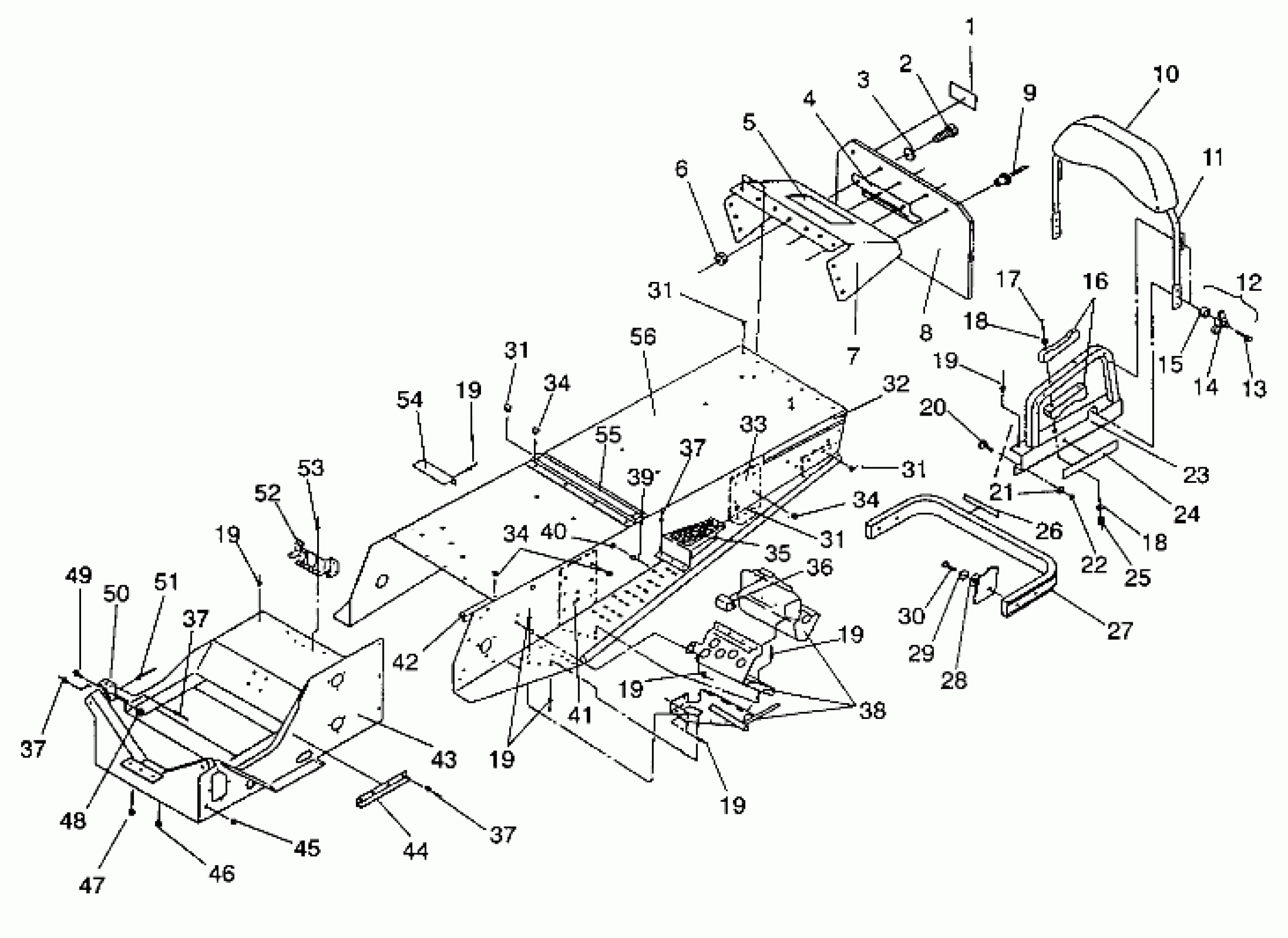

Polaris CLASSIC - 0930864 TUNNEL ASSEMBLY CLASSIC TOURING / 0930865 (4922952295001A) Diagram
#
1
DECAL,TRACK/SEAT,SILVER [No Longer Available] (Silver)
7073123
Unavailable
2
SCREW(10)
7511930
$2.39
3
WASHER, FLAT(10)
7558201
$5.79
4
RETAINER, FLAP Substituted by 5241874-067
5222659-067
Unavailable
5
DECAL,R.CLOSEOFF(CLASSIC) [No Longer Available]
7073501
Unavailable
6
NUT(10)
7541925
$1.49
7
PANEL,CLOSE-OFF,REAR Substituted by 1011694-067
1011694
Unavailable
8
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
9
POP RIVET(50)
7621418
$1.49
10
COVER,BACKREST(CLASSIC)
2681574
Unavailable
11
BACKREST ASM.
2681575
$115.08
12
KNOB ASM,BACKREST
2670130
Unavailable
13
SCREW(10)
7515352
Unavailable
14
Knob, Backrest
5630386-067
$20.22
15
SPACER
5431285
Unavailable
16
GRIP, HAND Substituted by 5433383
5431015
$19.68
17
SCREW(10)
7510504
$6.76
18
WASHER(10)
7555783
$3.99
18
WASHER(10)
7555783
$3.99
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
20
BOLT(10) Substituted by 7512325
7515363
Unavailable
21
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
22
NUT, NYLOK(10)
7542327
$4.79
23
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
23
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
24
REFLECTOR RED
2670070
$9.91
25
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
26
DECAL,CLASSIC,'93 [No Longer Available]
7073497
Unavailable
27
BUMPER, REAR Substituted by 2670122
5224420
Unavailable
28
WASHER(10)
7558301
$1.49
29
LOCK WASHER(10)
7552801
$1.59
30
BOLT(10)
7512240
$3.99
31
RIVET ,(50)
7661829
Unavailable
31
RIVET ,(50)
7661829
Unavailable
31
RIVET ,(50)
7661829
Unavailable
31
RIVET ,(50)
7661829
Unavailable
32
DECAL,LH.TUNNEL [No Longer Available]
7073493
Unavailable
32
DECAL,RH.TUNNEL [No Longer Available]
7073494
Unavailable
33
BRKT,RH.REAR SUSP.
1011906-067
Unavailable
33
BRKT,LH.REAR SUSP
1011905-067
Unavailable
34
RIVET,(50)
7661825
$1.49
34
RIVET,(50)
7661825
$1.49
34
RIVET,(50)
7661825
$1.49
35
PAD,LH FOOT SAFETY
5830007
$7.89
35
PAD,RH FOOT SAFETY
5830008
$4.92
35
FOOTREST,LH R,BLK.
5220893-067
Unavailable
35
FOOTREST,RH R,BLK.
5220894-067
$32.15
36
EXTRUSION,CLUTCHGUARD
5521238
$6.46
37
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
37
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
37
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
37
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
38
FOOTREST ASM, LH
1011861
Unavailable
38
FOOTREST ASM,RH,BLK.
1011892
Unavailable
39
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
40
SNAP-MALE(10)
7080227
Unavailable
41
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
42
BRACE,TUNNEL REINF.
5222412
Unavailable
43
BULKHEAD
1011876
Unavailable
44
GUARD
5223789
Unavailable
45
PLUG, HOLE(10)
7080416
$5.65
46
PLUG-HOLE
7080398
$4.84
47
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
48
NUT LOCK(10)
7542321
$1.49
49
SCREW(10)
7512307
$3.99
50
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
51
RIVET(50)
7621452
$1.49
52
BRKT,GASTANK,WELD.
1011733-067
$19.73
53
RIVET(50)
7621301
$3.99
54
BRKT, TOOL BOX
5220973
Unavailable
55
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
56
TUNNEL,BLK,STRT,LIQ,BLK.SKS (Incl. 4, 16, 23, 42 & 55 )
1011922
Unavailable
