TUNNEL ASSEMBLY CLASSIC / 0930864 (4922952295003A)

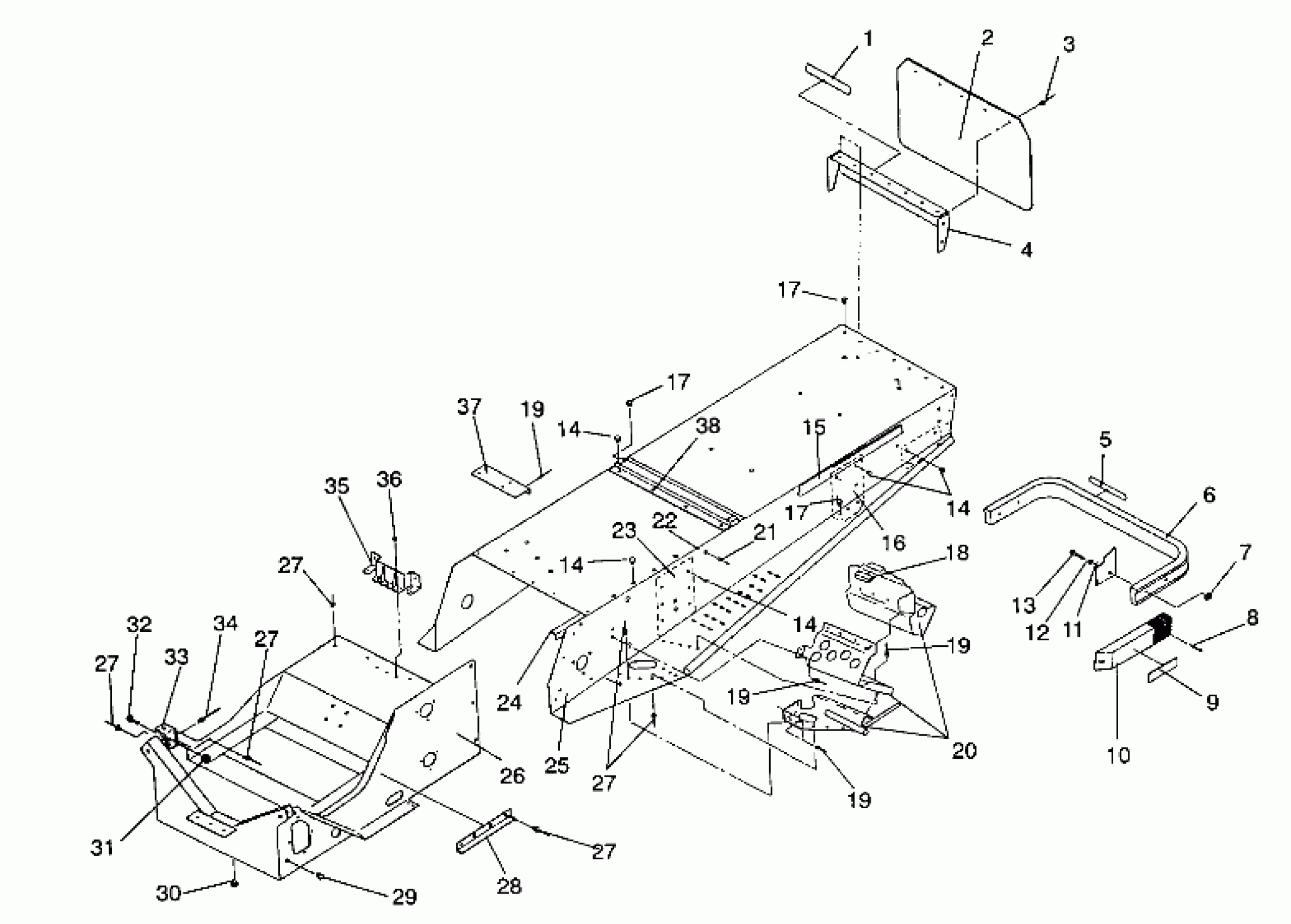

Polaris CLASSIC - 0930864 TUNNEL ASSEMBLY CLASSIC / 0930864 (4922952295003A) Diagram
#
1
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
5
DECAL,CLASSIC,'93 [No Longer Available]
7073497
Unavailable
6
BUMPER,REAR,BLK.
5224334-067
Unavailable
7
NUT-LOCK(10)
7542122
$1.49
8
SCREW(10)
7511863
$1.99
9
REFLECTOR RED
2670070
$9.91
10
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
11
WASHER(10)
7558301
$1.49
12
LOCK WASHER(10)
7552801
$1.59
13
BOLT(10)
7512240
$3.99
14
RIVET ,(50)
7661829
Unavailable
14
RIVET ,(50)
7661829
Unavailable
14
RIVET ,(50)
7661829
Unavailable
15
DECAL,LH.TUNNEL [No Longer Available]
7073493
Unavailable
15
DECAL,RH.TUNNEL [No Longer Available]
7073494
Unavailable
16
BRKT,RH,R.SUSP.
1011858-067
Unavailable
16
BRKT,LH,R.SUSP
1011857-067
Unavailable
17
RIVET,(50)
7661825
$1.49
17
RIVET,(50)
7661825
$1.49
17
RIVET,(50)
7661825
$1.49
18
EXTRUSION,CLUTCHGUARD
5521238
$6.46
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
20
FOOTREST ASM,LH
1011890
Unavailable
20
FOOTREST ASM, RH
1011891
$164.79
21
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
22
SNAP-MALE(10)
7080227
Unavailable
23
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
24
BRACE,TUNNEL REINF.
5222412
Unavailable
25
TUNNEL ASM,STRT.LIQ.BLK. (Incl. 4, 16, 23, 24 & 38)
1011920
Unavailable
26
BULKHEAD
1011876
Unavailable
27
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
27
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
27
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
27
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
GUARD
5223789
Unavailable
29
PLUG, HOLE(10)
7080416
$5.65
30
PLUG-HOLE
7080398
$4.84
31
NUT LOCK(10)
7542321
$1.49
32
SCREW(10)
7512307
$3.99
33
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
34
RIVET(50)
7621452
$1.49
35
BRKT,GASTANK,WELD.
1011733-067
$19.73
36
RIVET(50)
7621301
$3.99
37
BRKT, TOOL BOX
5220973
Unavailable
38
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
