SEAT and GAS TANK ASSEMBLY CLASSIC TOURING / 0930865 (4922952295005A)

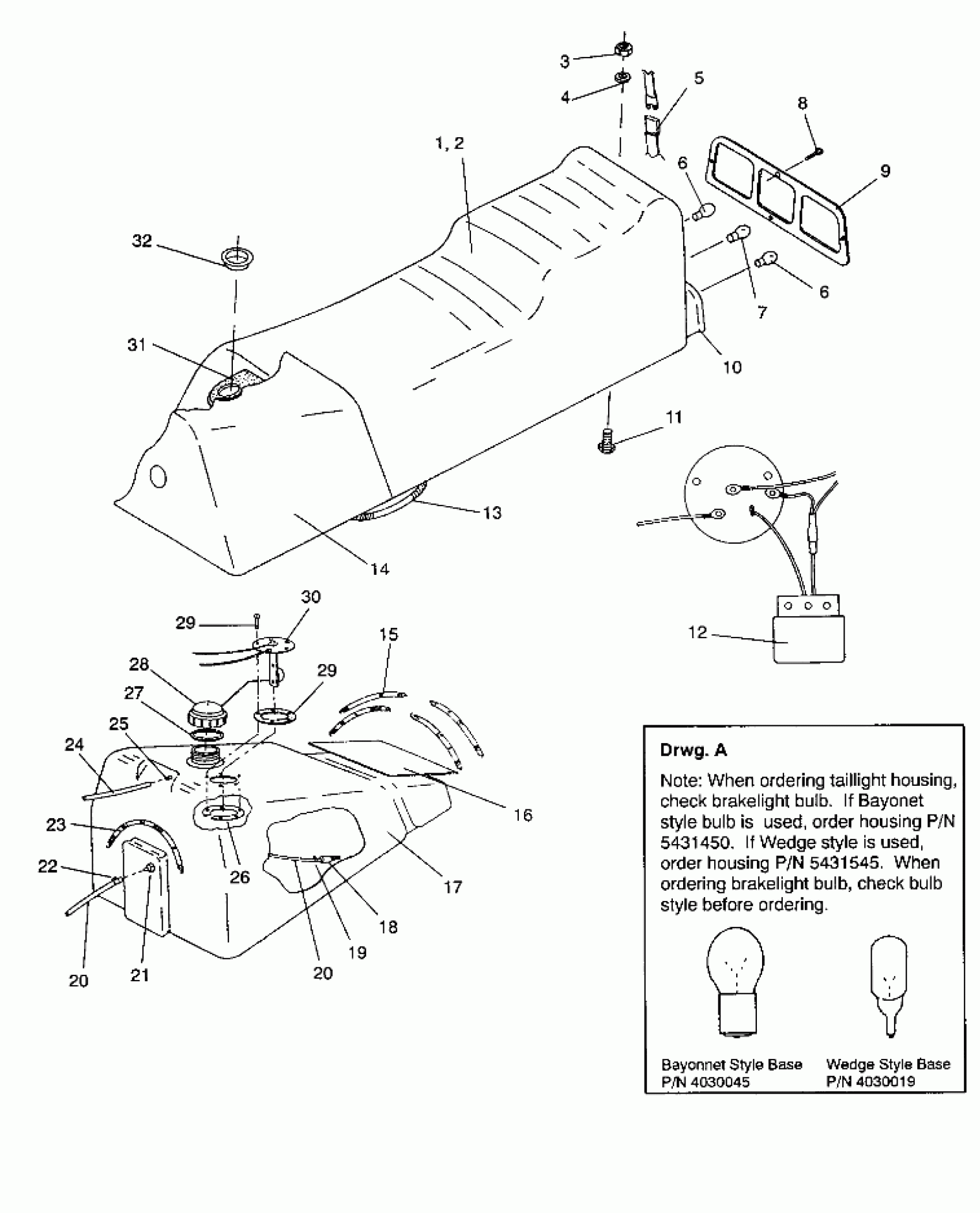

Polaris CLASSIC - 0930864 SEAT and GAS TANK ASSEMBLY CLASSIC TOURING / 0930865 (4922952295005A) Diagram
#
Description
Price
1
SEAT ASM Substituted by 2200746 (Incl. 2, 5-9, 14 & 15)
2681562
Unavailable
2
COVER,SEAT(CLASSIC'92-3) Substituted by 2200743
2681563
Unavailable
3
NUT-LOCK(10)
7542122
$1.49
4
WASHER(10)
7558221
$2.39
5
BUCKLE&STRAP
2681291
Unavailable
6
BULB,TAILLIGHT(10)
4030024
$4.84
6
BULB,TAILLIGHT(10)
4030024
$4.84
7
Bulb, Brakelight
4030045
Unavailable
8
SCREW(10)
7511840
Unavailable
9
LENS,TAILLIGHT
5430423
Unavailable
10
HOUSING,TAILLIGHT Substituted by 5433341 (See Drwg. A)
5431545
Unavailable
10
HOUSING, TAILLIGHT (See Drwg. A)
5431450
$19.83
11
BOLT(10)
7512103
$3.19
12
RECTIFIER, FUEL
4060094
$17.46
13
HARNESS,TAILLIGHT
2460370
$31.35
14
COVER,TANK(CLASSIC'92-3) Substituted by 2200743
2681564
Unavailable
15
SPRING, TANK
7042033
Unavailable
16
INSERT,TANKCOVER
5850098
Unavailable
17
TANK ASM,FUEL (Incl.16-19, 23)
2511199
Unavailable
18
FUELPICKUP,W/STRAINER
7052037
$12.94
19
RING, COMPRESSION(10)
7080402
$1.60
20
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
20
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
21
FITTING - OUTLET(10)
7052023
$24.99
22
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
23
SPRING,TANK,(10)
7042020
$13.75
24
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
25
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
26
MTG.FLANGE,FUELTANK Substituted by 5244067
5211308
Unavailable
27
GASKET, GAS CAP
5810513
$8.89
28
CAP,FUELTANK,W/GASKET
2511226
Unavailable
29
HDWE.PKG,SEND.UNIT
2410012
Unavailable
29
HDWE.PKG,SEND.UNIT
2410012
Unavailable
30
SEND.UNIT,W/HDWE.PKG.
2410015
Unavailable
31
FOAM, FILLER
5810201
Unavailable
32
GROMMET
5410644
Unavailable
