OIL TANK / AIR BOX ASSEMBLY CLASSIC / 0930864 and CLASSIC TOURING / 093086 (4922952295033A)

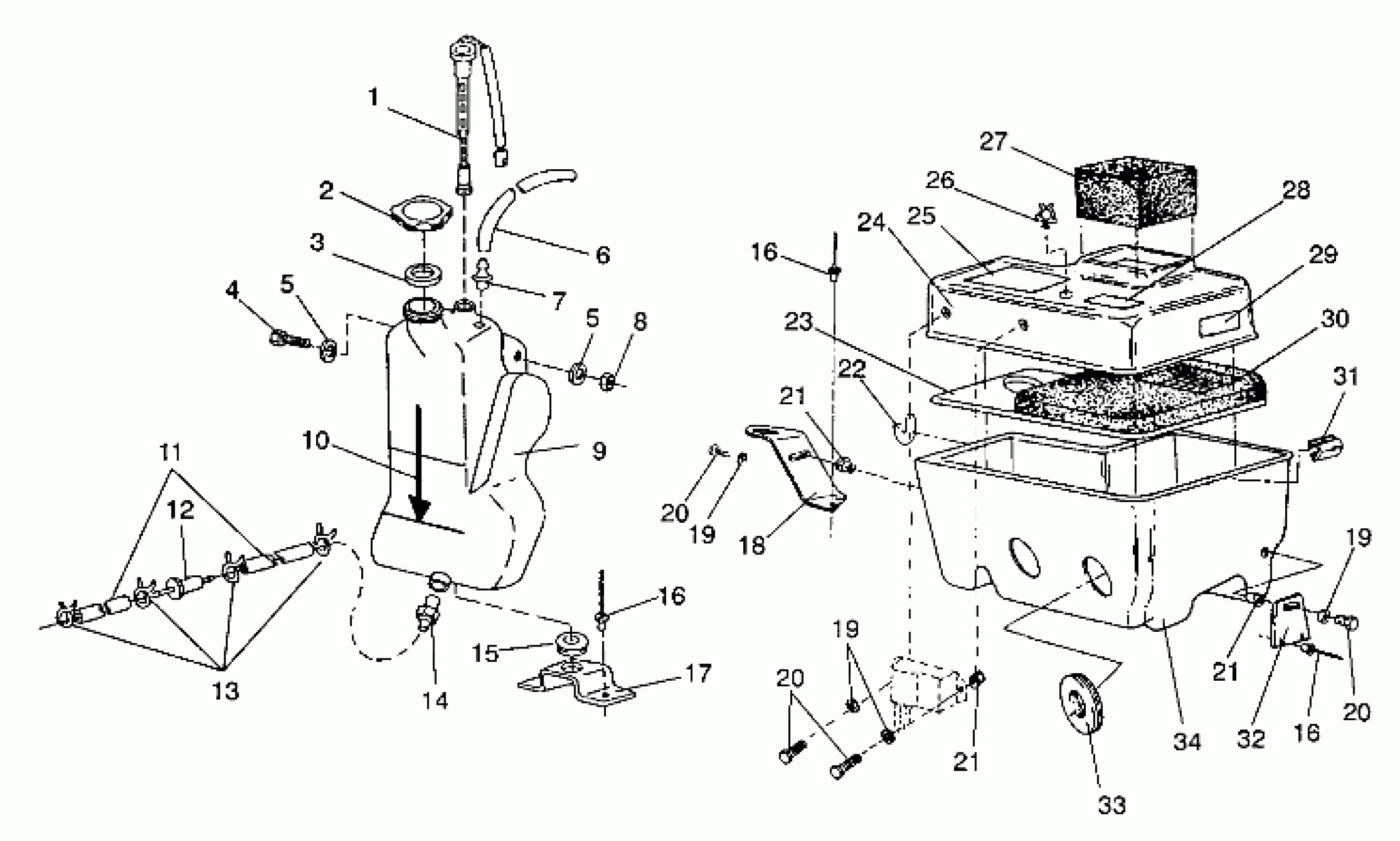

Polaris CLASSIC - 0930864 OIL TANK / AIR BOX ASSEMBLY CLASSIC / 0930864 and CLASSIC TOURING / 093086 (4922952295033A) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN. Substituted by 4040040
4040016
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512103
$3.19
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
KIT-TANK VENT
2200190
Unavailable
7
VENT-TANK
5430579
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
TANK, OIL
5430997
Unavailable
10
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
11
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
12
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
13
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
14
FITTING, OUTLET
7052042
$8.99
15
GROMMET RUBBER
5410021
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
17
BRACKET
5223985
Unavailable
18
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
20
SCREW(10)
7512279
$1.49
20
SCREW(10)
7512279
$1.49
20
SCREW(10)
7512279
$1.49
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
22
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
23
PLATE,AIR SILENCER
5850075
$24.27
24
COVER, SILENCER (Classic)
5430920
$61.99
24
COVER,SILENCER(DRILLED) (Touring)
5431111
Unavailable
25
DECAL,COOLING SYS. [No Longer Available]
7073721
Unavailable
26
CLAMP,WIRE ROUTING(10)
7080409
$2.39
27
INTAKE ASM, FOAM
1253107
$36.41
28
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
29
DECAL, GREASING [No Longer Available]
7073426
$7.27
30
BAFFLE ASM.
1253102
$64.75
31
CLIP, AIR BOX,(10)
7670055
$7.99
32
BRACKET, SILENCER
5211274
$9.70
33
Boot
5410271
Unavailable
34
SILENCER, DRILLED
5430955
Unavailable
