HOOD ASSEMBLY CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295009A)

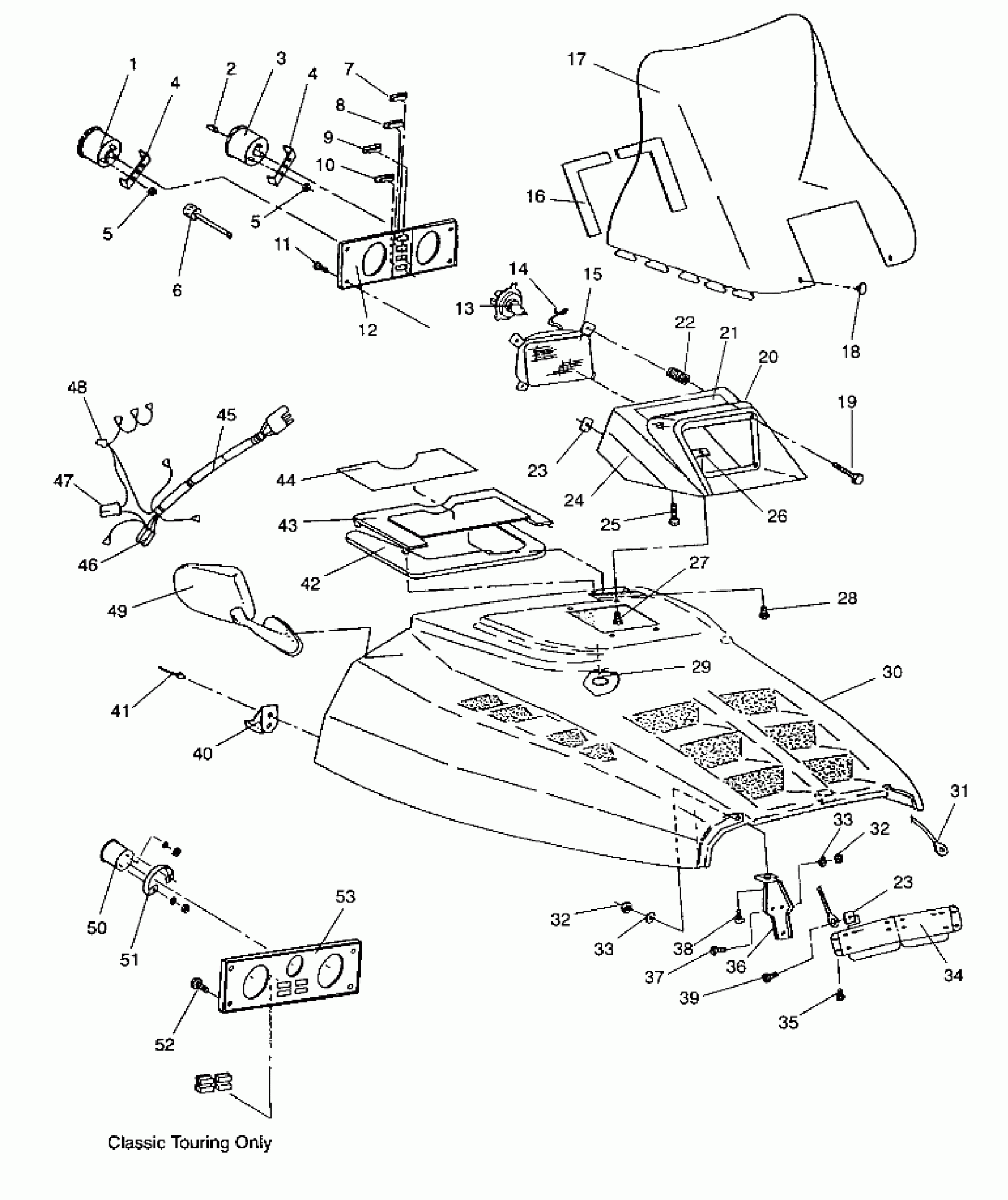

Polaris CLASSIC - 0930864 HOOD ASSEMBLY CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295009A) Diagram
#
1
TACHOMETER (Incl. 4 & 5 )
3280093
Unavailable
2
KNOB,TRIP ODOMETER
3280103
$3.83
3
SPEEDOMETER (Incl. 4, 5)
3280092
$111.99
4
BRACKET
3280098
Unavailable
4
BRACKET
3280098
Unavailable
5
NUT
3280063
Unavailable
5
NUT
3280063
Unavailable
6
CABLE,SPEEDO.
3280094
$60.70
7
INDICATOR'TEMP'WARN.
4040011
$32.37
8
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
9
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
10
INDICATOR,'ACC'WARN.
4040014
Unavailable
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INST. (Classic)
5430924
Unavailable
13
BULB,QUARTZ.H/L,INDY
2870448
$24.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM.
4032040
Unavailable
16
PAD,W/S,LH,BLACK
5810437
Unavailable
16
PAD,W/S,RH,BLACK
5810438
$1.67
17
WINDSHIELD, HIGH (Touring)
5431118
Unavailable
17
WINDSHIELD,SMOKE,STD(LIQ) (Classic)
5431144
$134.99
18
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
19
SCREW, ADJ.(10)
4032003
Unavailable
20
HSG,INST,TOP,BLK
5430923-070
Unavailable
21
DECAL,SHIFT PATTERN [No Longer Available]
7072901
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
24
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
25
SCREW(10)
7512009
Unavailable
26
NUT, SPEED(10)
7670057
$1.49
27
SCREW, SEMS(10)
7512283
$3.99
28
SCREW(10)
7511840
Unavailable
29
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
30
HOOD,CLASSIC&RXL Substituted by 2631574-145 (Incl. Foam & Foil)
5431194-145
Unavailable
31
CABLE,HD.RETAINER
7080360
$24.27
32
NUT-LOCK(10)
7542122
$1.49
32
NUT-LOCK(10)
7542122
$1.49
33
WASHER,WROUGHT(10)
7558302
$1.59
33
WASHER,WROUGHT(10)
7558302
$1.59
34
PLATE,RE-INF.,(HD.)
5222105
$49.51
35
SCREW(10)
7511861
Unavailable
36
HINGE ASM,HD,BLK
2635005-067
$16.67
37
BOLT(10)
7512193
$2.39
38
BOLT-CARRIAGE(10)
7512263
$3.99
39
SCREW(10)
7511989
Unavailable
40
CUP, HOOD LATCH,(10)
5430733
$4.84
41
RIVET(50)
7621334
$1.49
42
SEAL, INTAKE
5810597
Unavailable
43
PANEL,INTAKE,BLUE Substituted by 2620078-145
5431195-145
Unavailable
44
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
45
HARNESS,HEADLIGHT (Classic)
2460382
Unavailable
45
HARNESS, HEADLIGHT (Touring)
2460384
Unavailable
46
HOUSING
4020052
Unavailable
47
Housing
4020115
$1.59
48
HOUSING
4020114
Unavailable
49
PR,MIRRORS,R.VIEW (2 Per Kit)
2870938
Unavailable
50
INDICATOR,FUEL LEVEL (Touring)
3280118
$53.59
51
HDWE.PKG,FUEL INDIC. (Touring)
3280119
$24.79
52
SCREW,SCKT.HD.CAP(10) (Touring)
7512008
Unavailable
53
BEZEL, INSTRUMENT (Touring)
5431308
Unavailable
