ENGINE MOUNTING CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295031A)

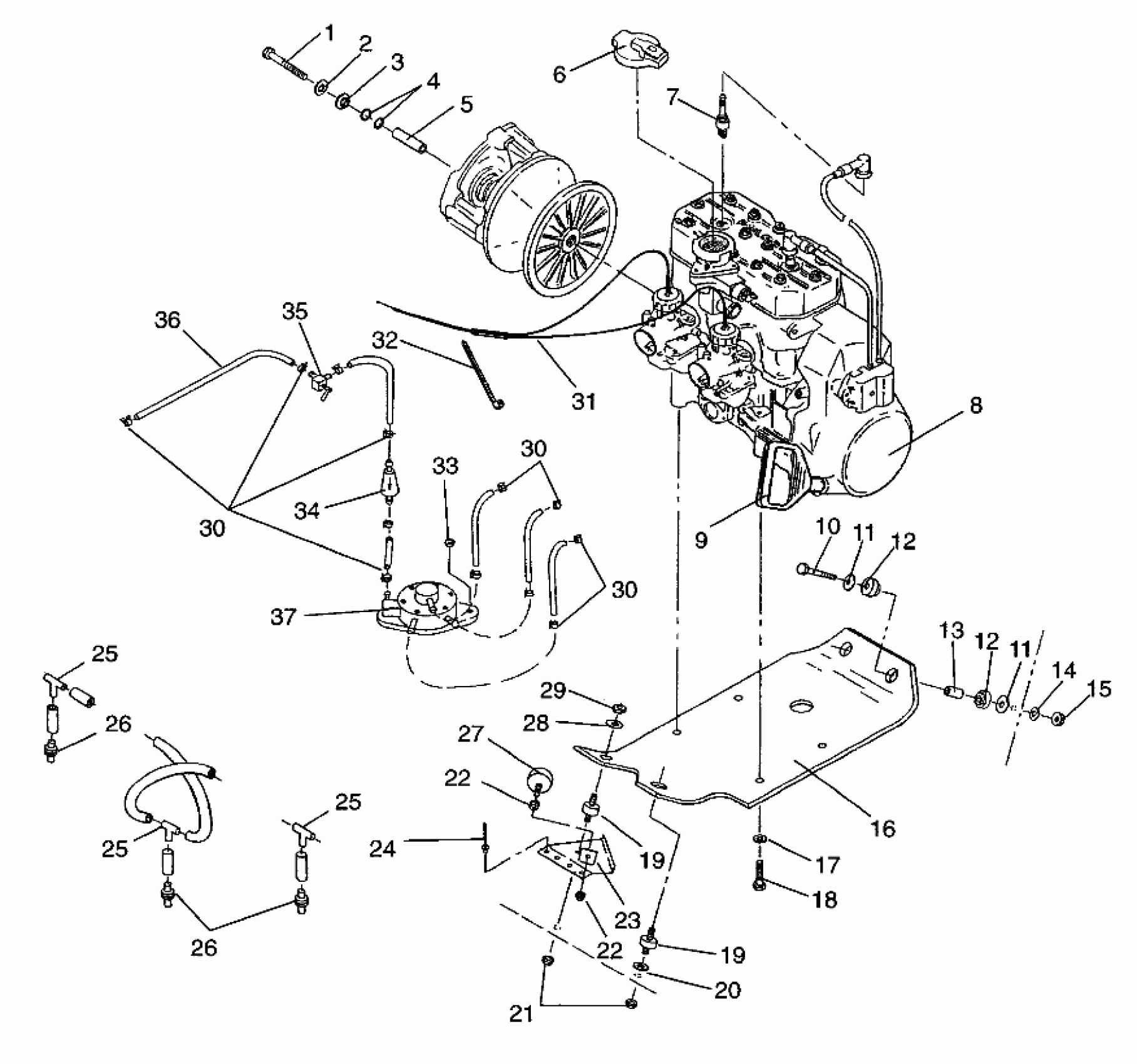

Polaris CLASSIC - 0930864 ENGINE MOUNTING CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295031A) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE
2511155
Unavailable
7
SPARKPLUG, RN3C(8)
3070166
$3.99
8
ENG.EC50PL-04 [No Longer Available] (Classic)
1211483
Unavailable
8
ENG.,EC50PL-05 [No Longer Available] (Touring)
1211484
Unavailable
9
HANDLE-RECOIL
5430520
Unavailable
10
SCREW(10)
7512530
$5.59
11
WASHER(10)
7555740
$1.59
11
WASHER(10)
7555740
$1.59
12
MOUNT, ENGINE
5410390
Unavailable
12
MOUNT, ENGINE
5410390
Unavailable
13
SPACER, (MTR.MT.)
5332778
Unavailable
14
WASHER(10)
7555817
Unavailable
15
NUT, LOCK,(10)
7542503
$10.39
16
PLATE,ENG.MT.
5222169
Unavailable
17
WASHER LOCK(10)
7553101
$3.99
18
BOLT(10)
7512539
$3.99
19
MOUNT
3110022
Unavailable
19
MOUNT
3110022
Unavailable
20
WASHER(10)
7555721
$1.49
21
NUT LOCK(10)
7542411
$3.19
22
NUT, JAM(10)
7542432
$3.99
22
NUT, JAM(10)
7542432
$3.99
23
BRACKET,TORQUE LIMITER Substituted by 1012048-067
1011741-067
$38.71
24
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
25
FITTING, TEE,(10)
7052048
$3.99
25
FITTING, TEE,(10)
7052048
$3.99
25
FITTING, TEE,(10)
7052048
$3.99
26
CHECKVALVE,VENT Substituted by 7051011
7052047
Unavailable
26
CHECKVALVE,VENT Substituted by 7051011
7052047
Unavailable
27
STOP
3110023
Unavailable
28
WASHER(10) Substituted by 7555806
7555720
$0.79
29
NUT-LOCK(10)
7542439
$1.49
30
HOSE CLAMP, RED
7080003
Unavailable
30
HOSE CLAMP, RED
7080003
Unavailable
30
HOSE CLAMP, RED
7080003
Unavailable
31
CABLE, THROTTLE
7080373
Unavailable
32
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
33
NUT-LOCK(10)
7542122
$1.49
34
FILTER FUEL,(10)
2530008
$4.84
35
VALVE,FUEL SHUT-OFF
7052039
Unavailable
36
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
37
Fuel Pump (See pg. NO TAG)
-------
Unavailable
