DRIVE TRAIN ASSEMBLY CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295023A)

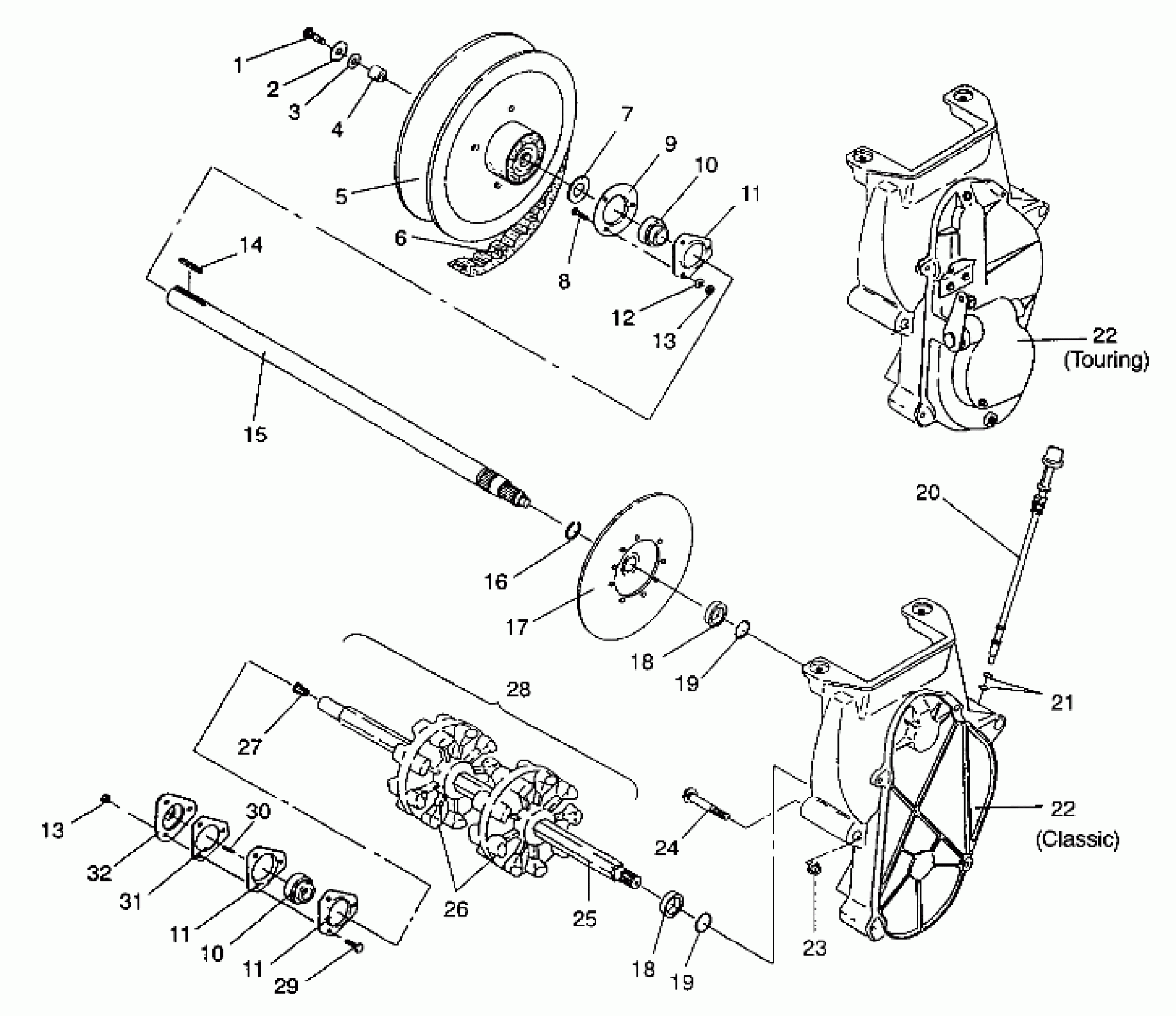

Polaris CLASSIC - 0930864 DRIVE TRAIN ASSEMBLY CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295023A) Diagram
#
Description
Price
1
BOLT(10)
7515301
Unavailable
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
CLUTCH ASM,(36 DEG.) Substituted by 1322105 (See pg. 27)
1322132
Unavailable
6
BELT DRIVE(5)
3211042
$109.99
7
WASHER SPECIAL(10)
7556509
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE,W/GREASE GROOVE Substituted by 5240252
5222581
Unavailable
10
BEARING Substituted by 3514518
3514513
$64.99
10
BEARING Substituted by 3514518
3514513
$64.99
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
12
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
KEY-SQUARE(10)
7721204
$3.19
15
JACKSHAFT ASM, BLK. (Incl. 16)
1332141-067
$190.46
16
RING, RETAINING(10)
7710422
$3.99
17
DISC ASM, BRAKE
1910086
Unavailable
18
SLEEVE, SEAL
5020588
$23.99
19
O RING,(10)
5410613
$1.99
19
O RING,(10)
5410613
$1.99
20
DIPSTICK Substituted by 1332143
5431419
Unavailable
21
O-RING
5410675
$1.60
22
Asm., Chaincase (See pg. 18 & 19)
-------
Unavailable
22
Asm., Chaincase (See pg. 18 & 19)
-------
Unavailable
23
NUT(10)
7542423
$3.99
24
BOLT(10)
7515428
$4.79
25
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
26
SPROCKET, 9T
5430571
Unavailable
27
BUSHING METAL SPEEDO
3280019
$11.99
28
DRIVESHAFT ASM. Substituted by 1590246 (Incl. 25 - 27)
1590230
$285.70
29
BOLT(10)
7512331
$3.99
30
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
31
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
32
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
