CHAINCASE ASSEMBLY CLASSIC TOURING / 0930865 (4922952295022A)

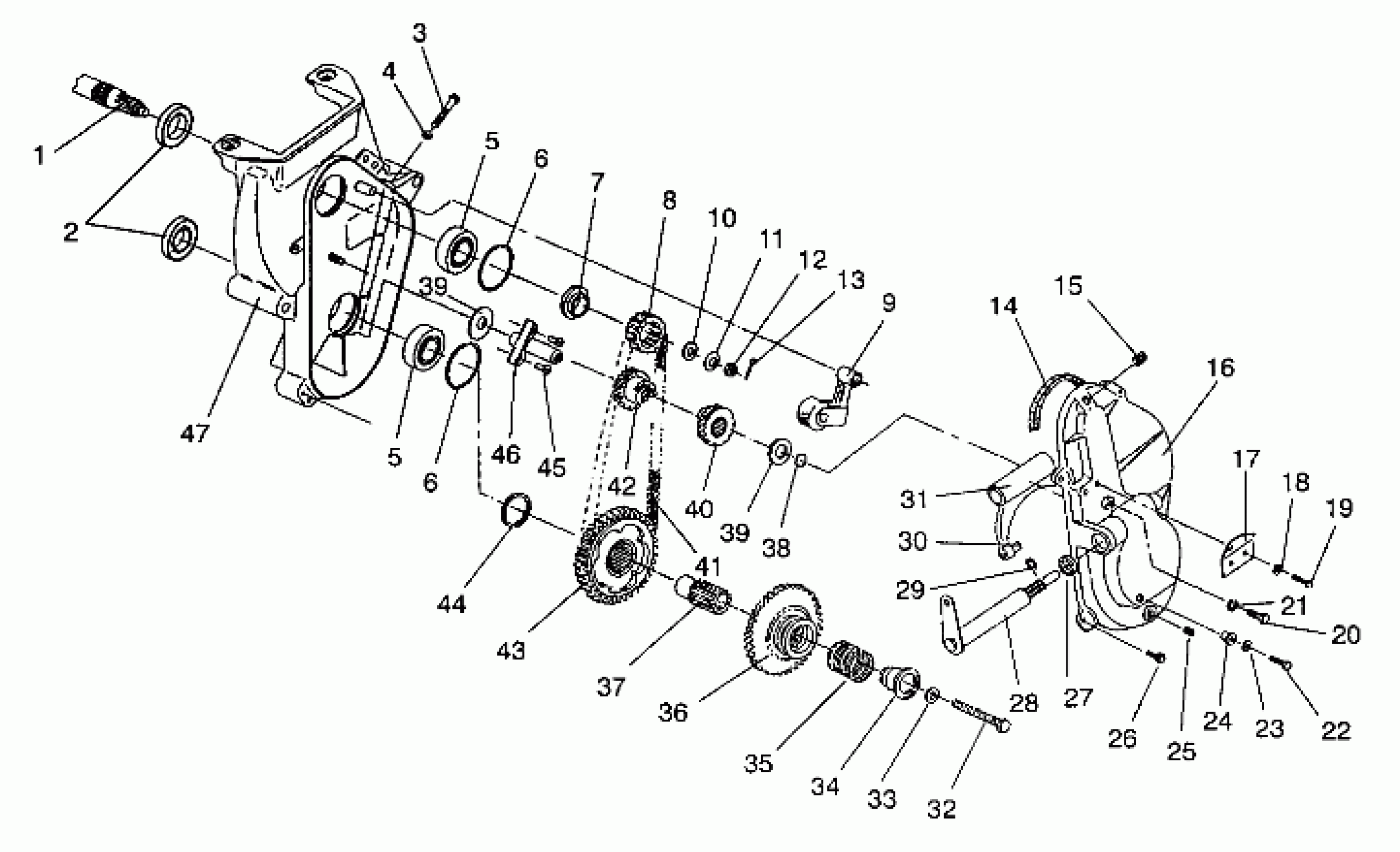

Polaris CLASSIC - 0930864 CHAINCASE ASSEMBLY CLASSIC TOURING / 0930865 (4922952295022A) Diagram
#
1
Asm., Jackshaft (See pg. NO TAG)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING,CHAINCASE
3514306
Unavailable
5
BEARING,CHAINCASE
3514306
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPACER, SPROCKET
5010270
Unavailable
8
SPROCKET 21 T
3221035
Unavailable
9
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
10
BUSHING(10)
7555863
$2.39
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT, SLOTTED(10)
7542810
$3.19
13
COTTER PIN(10)
7661401
$1.49
14
GASKET-CHAINCASE
5410277
$24.99
15
PLUG(10)
7051520
$8.79
16
COVER,CH.CASE,REV.MACH. Substituted by 5131172
5131114
Unavailable
17
BRKT,CABLE MOUNT
5222502-067
Unavailable
18
LOCK WASHER(10)
7552801
$1.59
19
SCREW(10)
7512252
Unavailable
20
SCREW(10)
7512497
Unavailable
21
WASHER WROUGHT(10)
7558403
$4.79
22
SCREW(10)
7511909
$3.99
23
WASHER, FLAT(10)
7558201
$5.79
24
NUT-WELL(10)
7541918
Unavailable
25
PLUG, DRAIN
7052053
Unavailable
26
SCREW(10)
7512225
$3.99
27
Seal, Oil
3610029
$8.89
28
SHAFT, SHIFT
1341093-067
$29.37
29
RING, RETAINER(10)
7710415
$3.99
30
PIN, SHIFT FORK(10)
7661826
$5.65
31
KIT,SHIFT FORK/SHAFT (Incl. 28 & 30)
2200363
Unavailable
31
Fork, Shift
5130805
Unavailable
32
SCREW, NYLOK(10)
7515348
$4.79
33
LOCK WASHER(10)
7552901
$1.49
34
RETAINER,DRIVE COUPLER
5130727
Unavailable
35
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
36
GEAR, REVERSE Substituted by 1341121
1341077
$559.99
37
Coupler, Drive
5130720
Unavailable
38
O RING
5410589
$4.99
39
WASHER, THRUST(10)
7555788
$4.99
39
WASHER, THRUST(10)
7555788
$4.99
40
GEAR,SPUR PINION
1341075
$149.99
42
GEAR ASM, PINION
1341076
Unavailable
43
SPROCKET, 39T
1341053
Unavailable
44
WASHER, REVERSE(10)
7555871
$5.59
45
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
46
SCREW(10)
7512019
$3.99
47
BRKT,CHAIN RETENTION
5222298
Unavailable
