CARBURETOR ASSEMBLY CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295038A)

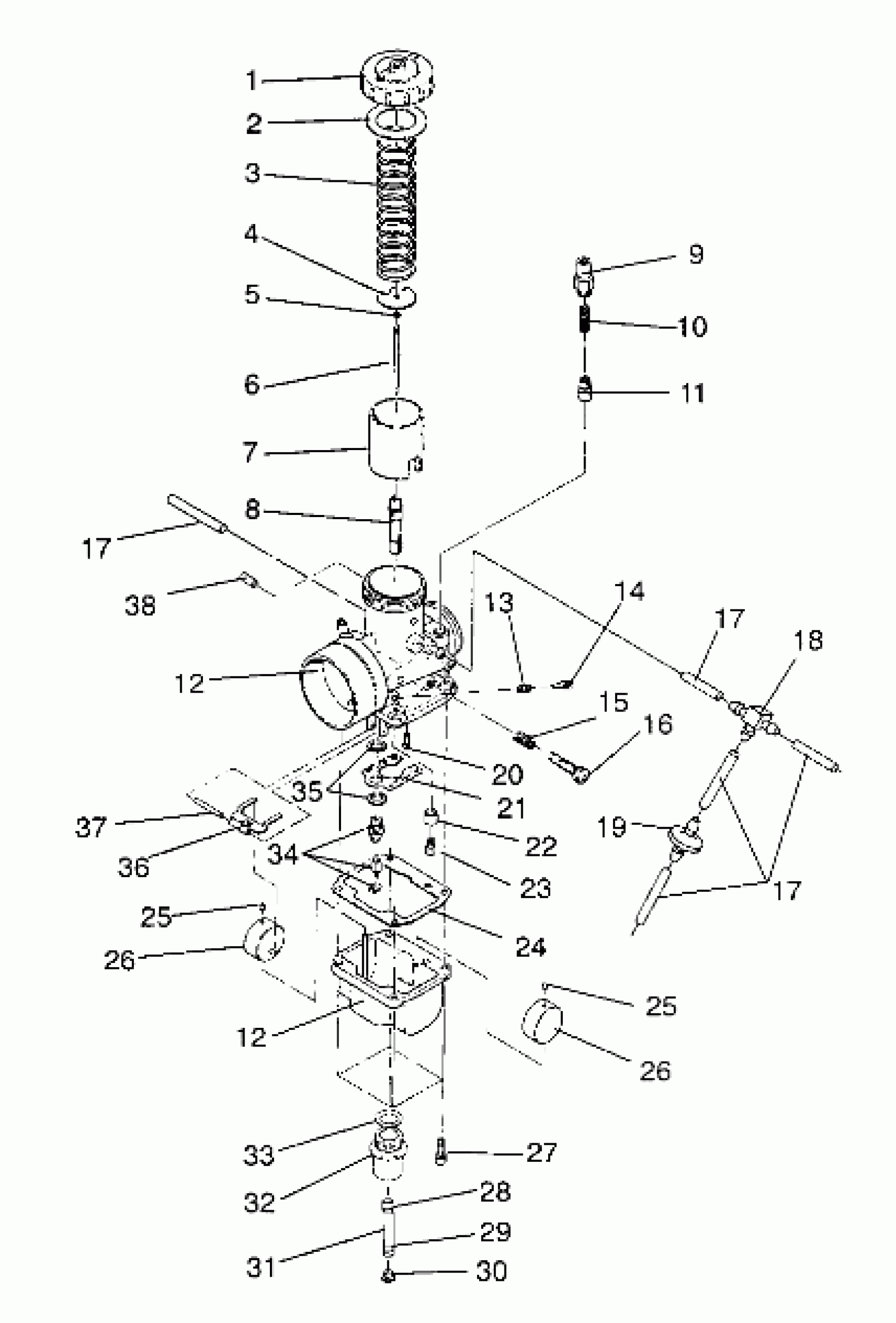

Polaris CLASSIC - 0930864 CARBURETOR ASSEMBLY CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295038A) Diagram
#
1
TOP (Incl. 2)
3130061
Unavailable
2
GASKET
-------
Unavailable
3
SPRING,THROTTLE
3130444
Unavailable
4
PLATE, THROTTLE
3130054
$6.46
5
E RING(10) Substituted by 3130508
3130003
Unavailable
6
NEEDLE,JET,(6F9-3) (6F9-3)
3130378
Unavailable
7
VALVE, THROTTLE,2.5 (2.5)
3130454
Unavailable
8
JET,NEEDLE,P-8 (P-8)
3130382
Unavailable
9
HOLDER,GUIDE
3130199
$28.32
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER (Incl.1-38)
3130328
$32.37
12
CARBURETOR
3130456
Unavailable
12
CARBURETOR
3130456
Unavailable
13
SPRING,AIR ADJUST
3130012
$8.89
14
SCREW,AIR
3130011
$19.99
15
SPRING,THROTTLE ADJ.
3130010
$8.89
16
SCREW,THROTTLE STOP
3130009
$19.99
17
HOSE [No Longer Available]
3130241
Unavailable
17
HOSE [No Longer Available]
3130241
Unavailable
17
HOSE [No Longer Available]
3130241
Unavailable
18
FITTING, TEE,(10)
7052048
$3.99
19
CHECKVALVE,VENT Substituted by 7051011
7052047
Unavailable
20
JET,PILOT,#40(10) (#40)
3130067
$10.99
21
PLATE
3130243
Unavailable
22
RING,CARB
3130232
Unavailable
23
JET,MAIN HX.HD#280(10) (#280)
3130131
$7.27
24
GASKET,FLOAT CHAMBER
3130236
$12.13
25
CAP,(10)
3130237
$4.03
25
CAP,(10)
3130237
$4.03
26
FLOAT ASM
3130021
$40.46
26
FLOAT ASM
3130021
$40.46
27
SCREW
3130056
$3.19
28
CLAMP-HOSE,(10)
7080236
$1.59
29
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
30
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
31
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
32
JET NEEDLE
3130476
$24.27
33
O RING
3130239
Unavailable
34
VALVE ASM,NEEDLE Substituted by 3130643
3130046
$56.65
35
WASHER(10)
3130047
$4.84
36
ARM,FLOAT
3130048
Unavailable
37
PIN, FLOAT Substituted by 3130361
3130235
$8.89
38
CAP,VACUUM FIT
3130379
$6.63
