09- Driver Passenger Seat

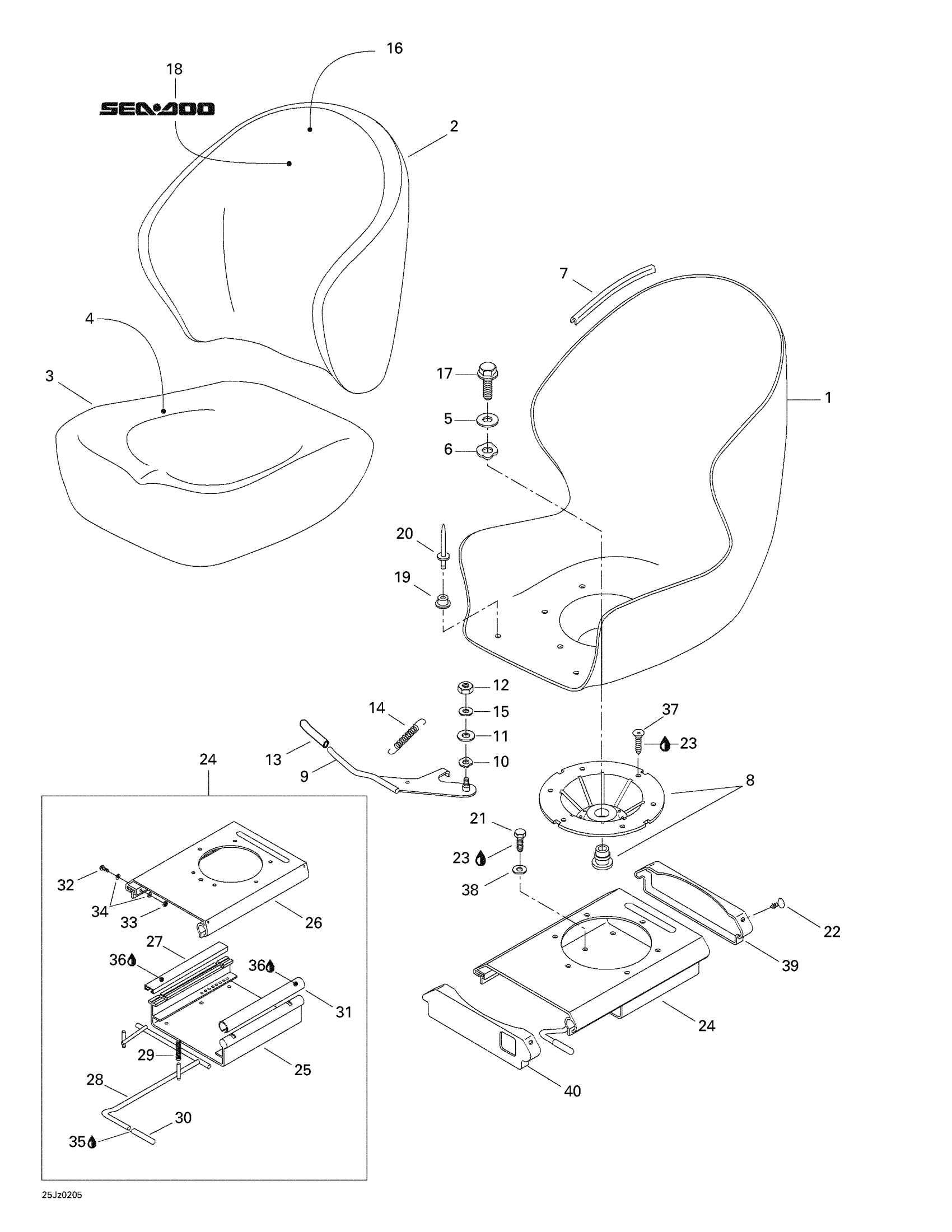

Sea-doo Challenger 2000 09- Driver Passenger Seat Diagram
#
1
Driver Seat Ass'y | Includes 1 - 20.
204611695
Unavailable
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Backrest Cushion (Metalic Quartz)
295501059
Unavailable
3
Seat Cushion (Metalic Quartz)
204611280
Unavailable
4
Cover Cushion
204611288
Unavailable
5
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
6
WASHER - Call your local BRP dealership
293200056
Unavailable
7
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
8
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
9
Lever Arm Ass’y
204610523
Unavailable
9
Lever Arm
204610524
Unavailable
10
Washer
211200059
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Hex. Elastic Stop Nut M6
232561600
$1.15
13
Handle
204610348
Unavailable
14
SPRING - Call your local BRP dealership
204610349
Unavailable
15
Stainless Flat Washer M6
234061600
$0.33
16
Not Available As Spare Part - Friction Washer
Unavailable
17
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
18
Sea-Doo Logo
204901063
Unavailable
19
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
20
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
21
Hex. Screw M6 X 35
207163560
$1.49
22
Black, Dart
293730006
$0.99
23
Loctite 243, 10 ml
293800060
$21.49
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Lower Part
269500636
Unavailable
26
Upper Part
269500637
Unavailable
27
Rectangular Bushing
269500638
Unavailable
28
Rod Ass'y
269500639
Unavailable
29
Spring
269500640
Unavailable
30
Handle
204610348
Unavailable
31
Circle Bushing
269500642
Unavailable
32
Hex. Screw M6 X 50
207065060
$2.22
33
Hex. Elastic Stop Nut M6
232561600
$1.15
34
Stainless Flat Washer M6
234061600
$0.33
35
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
36
Synthetic Grease, 400 G
293550010
Unavailable
37
PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
208561660
Unavailable
38
Flat Washer M6, Stainless
234062600
$0.77
39
Rear Protector
204610376
Unavailable
40
Front Protector
204610375
Unavailable
