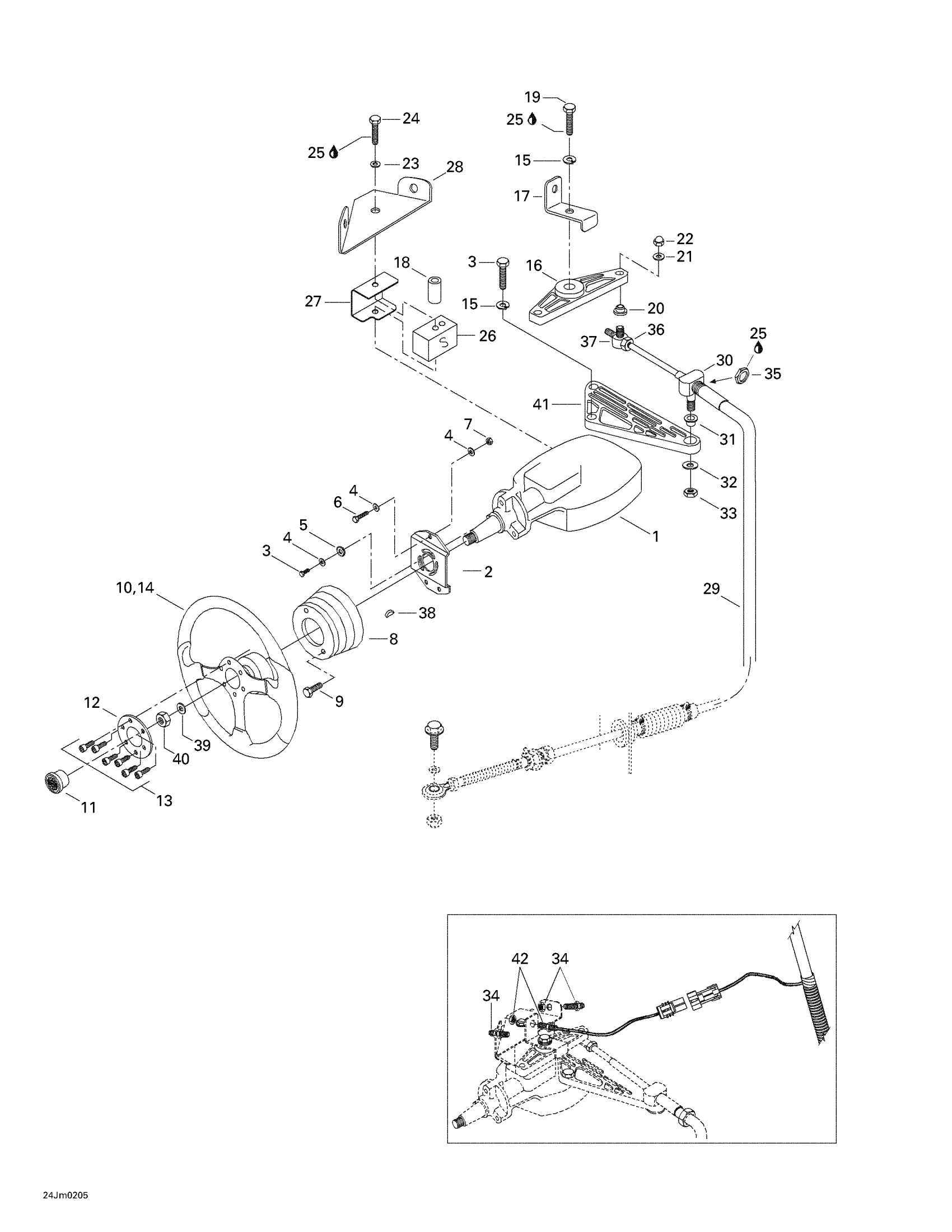

Sea-doo Challenger 2000 07- Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

Support

277000383

Unavailable

3

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

4

Stainless Flat Washer M6

234061600

$0.33

5

External Serrated Lock Washer 6 mm

234461608

$1.15

6

Hex. Screw M6 X 30

207163060

$1.48

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

9

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

10

Steering | Includes 11 to 16

204390170

Unavailable

11

Center Cap

204390327

Unavailable

12

Center Ring

204390328

Unavailable

13

SCREW PACK - Call your local BRP dealership

204390329

Unavailable

14

Nylon Hub

204390330

Unavailable

15

Lock Washer 1/4”

211200025

$1.29

16

ARM - Call your local BRP dealership

204390040

Unavailable

17

Lower Clip

204390271

Unavailable

18

Bushing

204130004

Unavailable

19

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

20

BUSHING - Call your local BRP dealership

293350012

Unavailable

21

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

22

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

23

Flat Washer M6, Stainless

234062600

$0.77

24

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

Bumper

204390246

Unavailable

27

Bumper Support

204390245

Unavailable

28

Cam Switch | CHALLENGER 1800 (5701).

204390272

Unavailable

29

STEERING CABLE ASS'Y - Call your local BRP dealership

204390172

Unavailable

30

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

31

Flanged Bushing

293350014

$12.99

32

Flat Washer 10 mm, Stainless

234001600

$1.15

33

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

34

Low Speed Control Actuator

204470632

$42.99

35

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

36

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

37

PIVOT - Call your local BRP dealership

277000456

Unavailable

38

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

39

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

40

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

41

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

42

LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50

204470631

Unavailable
