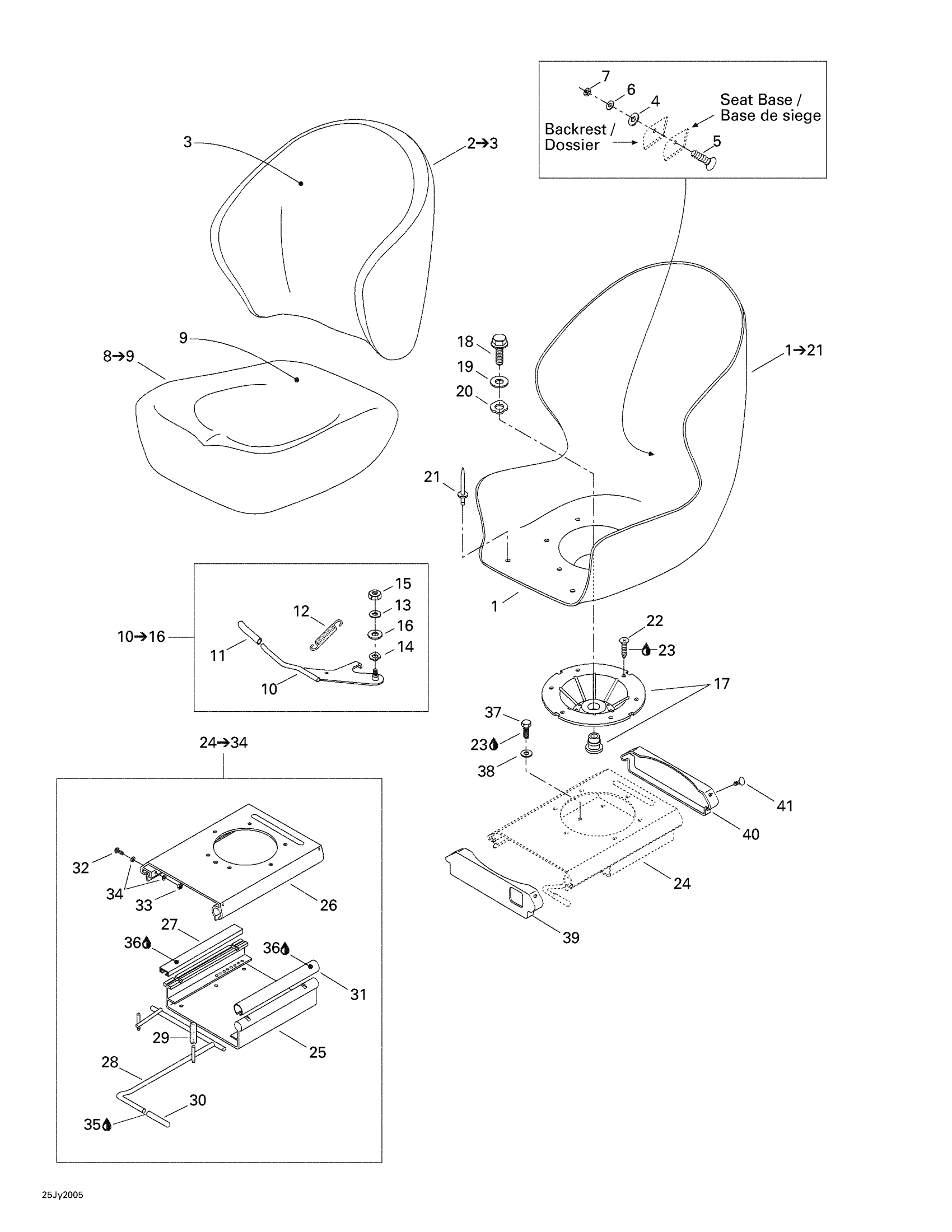

Sea-doo Challenger 2000 09- Seat (driver And Passenger) Diagram

#

Description
Price

1

Driver Seat Ass'y | Includes 1 - 21.

204611116

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Backrest Cushion | Includes 2 - 3.

204611117

Unavailable

3

Backrest Cover

204611138

Unavailable

4

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

5

Socket Head Screw M4 X 16

205441660

$1.47

6

Flat Washer

204610439

Unavailable

7

NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership

232041600

Unavailable

8

Seat Cushion | Includes 8 - 9.

204611119

Unavailable

9

Cushion Cover

204611124

Unavailable

10

Lever Arm Ass’y

204610523

Unavailable

10

Lever Arm

204610524

Unavailable

11

Handle

204610348

Unavailable

12

SPRING - Call your local BRP dealership

204610349

Unavailable

13

Stainless Flat Washer M6

234061600

$0.33

14

Washer

211200059

Unavailable

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

Washer (Nylon)

204610440

Unavailable

17

SWIVEL PLATE - Call your local BRP dealership

204610513

Unavailable

18

SCREW-SHOULDER - Call your local BRP dealership

211000172

Unavailable

19

FLAT WASHER - Call your local BRP dealership

211200058

Unavailable

20

WASHER - Call your local BRP dealership

293200056

Unavailable

21

Pop Rivet 3/16"

293150043

$2.09

22

PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

208561660

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Lower Part

269500636

Unavailable

26

Upper Part

269500637

Unavailable

27

Rectangular Bushing

269500638

Unavailable

28

Rod Ass'y

269500639

Unavailable

29

Spring

269500640

Unavailable

30

Handle

204610348

Unavailable

31

Circle Bushing

269500642

Unavailable

32

Hex. Screw M6 X 50

207065060

$2.22

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

Stainless Flat Washer M6

234061600

$0.33

35

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

36

Synthetic Grease, 400 G

293550010

Unavailable

37

Hex. Screw M6 X 35

207163560

$1.49

38

Flat Washer M6, Stainless

234062600

$0.77

39

Front Protector

204610375

Unavailable

40

Rear Protector

204610376

Unavailable

41

Black, Dart

293730006

$0.99
