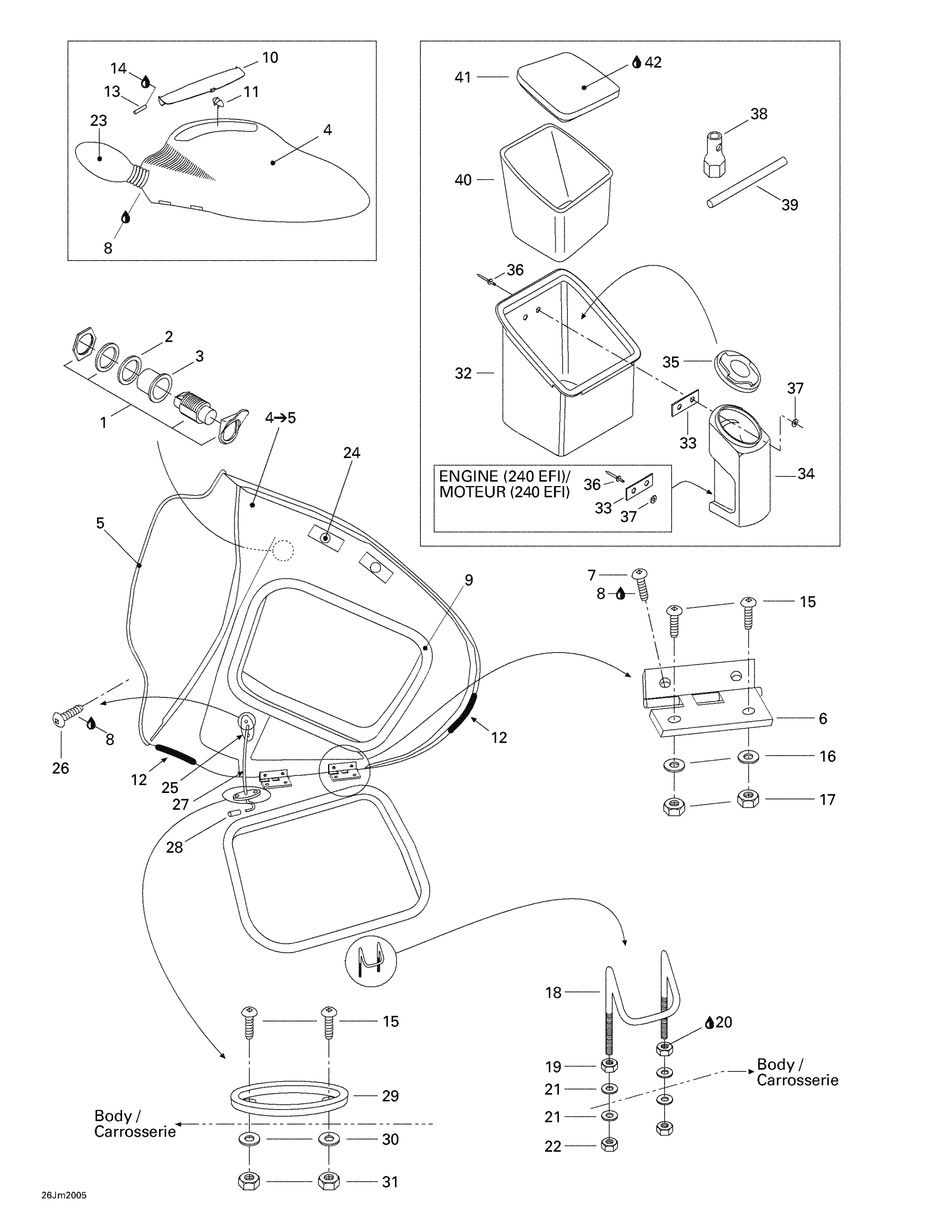

Sea-doo Challenger 2000 09- Front Storage Compartment Diagram

#

Description
Price

1

LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership

204070122

Unavailable

2

COMPENSATION GASKET - Call your local BRP dealership

204620045

Unavailable

3

LATCH INSERT - Call your local BRP dealership

204620007

Unavailable

4

RH Windshield | Includes 1 - 2.

204620110

Unavailable

LH Windshield

204620113

Unavailable

5

Trim, Meter

204620100

Unavailable

6

Console Hinge

204620005

Unavailable

7

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

8

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

9

Seal Tray 1000Mm Long

219704368

$13.99

10

DEFLECTOR - Call your local BRP dealership

204073803

$63.99

11

REAR STOPPER - Call your local BRP dealership

204073804

Unavailable

12

Waterproof Seal, Meter

204620117

Unavailable

13

ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership

204620126

Unavailable

14

Glue Tube, Loctite 454, 20 G

413708300

$60.99

15

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

16

Flat Washer 4 mm, Stainless

234042600

$1.15

17

Elastic Stop Nut M4

232541600

$1.15

18

Hook

204620151

Unavailable

19

Hex. Nut M6

232061600

$1.15

20

Loctite 243, 10 ml

293800060

$21.49

21

Flat Washer M6, Stainless

234062600

$0.77

22

Hex. Elastic Stop Nut M6

232561600

$1.15

23

Black, RH Mirror

204620026

Unavailable

24

RUBBER STOPPER - Call your local BRP dealership

204620295

Unavailable

25

ROD HOLDER - Call your local BRP dealership

204620028

Unavailable

26

PHILLIPS SCREW M4 X 16 - Call your local BRP dealership

208441660

Unavailable

27

Support Rod

204620083

Unavailable

28

CAP - Call your local BRP dealership

204620044

Unavailable

29

ROD STOP - Call your local BRP dealership

204620030

Unavailable

30

Flat Washer 4 mm, Stainless

234042600

$1.15

31

Elastic Stop Nut M4

232541600

$1.15

32

STORAGE TRAY - Call your local BRP dealership

269501940

$53.99

33

GASKET - Call your local BRP dealership

293250037

Unavailable

34

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

35

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

36

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

37

Flat Washer M3, Stainless

234032600

$0.55

38

Socket Wrench

204630050

Unavailable

39

Steel Bar

204630051

Unavailable

40

ICEBOX FOAM - Call your local BRP dealership

204630008

Unavailable

41

Icebox Foam Cover

204630013

Unavailable

42

Silicone Sealant 51388, 300 ml

296000309

$36.99
